#include <Polygon.h>

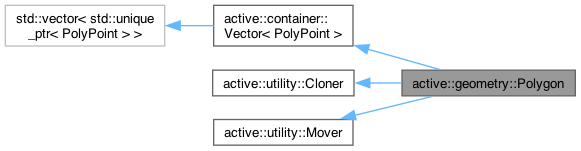

Inheritance diagram for active::geometry::Polygon:

[legend]

Collaboration diagram for active::geometry::Polygon:

[legend]

Classes
struct	Index

Public Types
using	base = container::Vector<PolyPoint>
	Base storage class for Polygon.

using	Unique = std::unique_ptr<Polygon>
	Unique pointer.

using	Shared = std::shared_ptr<Polygon>
	Shared pointer.

using	Option = std::optional<Polygon>
	Optional.

Public Types inherited from active::container::Vector< PolyPoint >
using	base
	Base container type.

using	value_type
	Stored type.

using	size_type
	Container size (index) type.

using	iterator
	Container iterator type.

using	const_iterator
	Container const iterator type.

Public Member Functions
	Polygon (vertex_index size=defSize, part_index holeSize=0, bool isClosed=true)

	Polygon (const std::initializer_list< PolyPoint > &points, bool isClosed=true)

	Polygon (const Box &source, double angle=0.0)

	Polygon (const Polygon &source)

	Polygon (Polygon &&source) noexcept

virtual	~Polygon ()=default

virtual Polygon *	clonePtr () const

virtual Polygon *	movePtr ()

virtual Polygon::Unique	cloneGeometry () const

virtual Polygon &	operator= (const Polygon &source)

virtual Polygon &	operator= (Polygon &&source) noexcept

PolyPoint *	operator[] (vertex_index index)

const PolyPoint *	operator[] (vertex_index index) const

Polygon	operator+ (const Point &offset) const

Polygon &	operator+= (const Point &offset)

Polygon	operator- (const Point &offset) const

Polygon &	operator-= (const Point &offset)

Polygon	operator* (const double &mult) const

Polygon &	operator*= (const double &mult)

Polygon	operator* (const Matrix3x3 &mult) const

Polygon &	operator*= (const Matrix3x3 &mult)

Polygon	operator* (const Matrix4x4 &mult) const

Polygon &	operator*= (const Matrix4x4 &mult)

Polygon	operator/ (const double &mult) const

Polygon &	operator/= (const double &mult)

virtual bool	isValid (bool doIntersect=false, double prec=math::eps) const

bool	isEqual2D (const Polygon &ref, double prec=math::eps) const

bool	isEqual3D (const Polygon &ref, double prec=math::eps) const

vertex_index	vertSize (bool isOuter=true) const

vertex_index	edgeSize () const

part_index	getHoleSize () const

vertex_id	getTopID () const

Polygon *	getHole (part_index which) const

PolyVector *	getHoles () const

std::optional< Rotation >	getDirection () const

Box::Option	bounds () const

double	getPerimeter2D () const

double	getPerimeter3D () const

vertex_index	tracePerimeter (double len, PolyPoint &endPos) const

double	getArea (bool isNet=true, bool isResultSigned=false) const

double	getInternalAngleAt (vertex_index index) const

bool	isTangentialAt (vertex_index vertex, double anglePrec=math::epsAngle) const

bool	isReflection (vertex_index index, const LinEquation &ref, double prec=math::eps) const

Point::Option	getInternalPoint () const

std::optional< Index >	findVertexById (vertex_id ID) const

std::optional< Index >	findVertexByLocation (const Point &pt, double prec=math::eps) const

const Polygon &	getShape (part_index index) const

Polygon &	getShape (part_index index)

base::iterator	iteratorAt (vertex_index index)

base::const_iterator	iteratorAt (vertex_index index) const

vertex_index	wrapIndex (vertex_index index) const

XPoint	closestPointAlong3D (const Point &ref, bool withHoles, double prec=math::eps) const

XPoint	closestPointAlong2D (const Point &ref, bool withHoles, double prec=math::eps) const

Position	positionOf (const Point &ref, double prec=math::eps) const

vertex_index	intersectionWith (const Line &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith (const Arc &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith (const PolyEdge &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith (const Polygon &ref, XList &inter, double prec=math::eps) const

void	splitWith (const LinEquation &ref, PolyVector polyRight=nullptr, PolyVector polyLeft=nullptr, double prec=math::eps) const

void	splitWith (const Polygon &ref, PolyVector polyIn=nullptr, PolyVector polyOut=nullptr, double prec=math::eps) const

part_index	resolveSelfIntersect (PolyVector &resolved, double prec=math::eps) const

bool	crosses (const Line &ref, double prec=math::eps) const

bool	encloses (const Point &ref, double prec=math::eps) const

bool	encloses (const Polygon &ref, double prec=math::eps) const

bool	overlaps (const Polygon &ref, double prec=math::eps) const

vertex_id	allocateID ()

void	setTopID (vertex_id topId)

void	clear (bool allVertices=true, bool allHoles=true)

Polygon *	insertHole (const Polygon &hole)

Polygon *	insertHole (Polygon *hole=nullptr)

Polygon *	emplaceHole (Polygon::Unique &&hole)

Polygon *	emplaceHole (Polygon &&hole)

void	setHoles (std::unique_ptr< PolyVector > &&holes=nullptr)

void	setHoles (PolyVector &&hole)

void	removeHole (part_index which)

Polygon::Unique	releaseHole (part_index which)

vertex_id	addNodeAlong (vertex_id ID, const Point &pos, double prec=math::eps)

virtual bool	insertUniqueVertex (PolyPoint &&pt, vertOption where=std::nullopt)

std::unique_ptr< PolyVector >	releaseHoles ()

virtual void	setDirection (Rotation direct=clockwise, bool withHoles=true, bool invertHoleDir=false)

virtual void	reverse ()

bool	removeDuplicates2D (double prec=math::eps)

bool	removeDuplicates3D (double prec=math::eps)

void	optimise (bool doColin=false, double prec=math::eps)

void	renumber (bool restart=false)

void	facet ()

void	setBaseLevel (double z=0)

void	alignTo (const Plane &plane)

Public Member Functions inherited from active::container::Vector< PolyPoint >
	Vector (size_type toReserve=0)

	Vector (const std::initializer_list< Derived > &items)

	Vector (const Vector &source)

	Vector (Vector &&source)

virtual	~Vector ()=default

auto	operator= (const Vector &source)

auto	operator= (Vector &&source)

void	push_back (PolyPoint *item)

void	emplace_back (PolyPoint &&item)

void	emplace_back (const PolyPoint &item)

void	emplace_back (value_type &&item)

void	emplace_back (value_type &item)

auto	insert (const_iterator pos, PolyPoint *item)

auto	emplace (const_iterator pos, PolyPoint &&item)

auto	emplace (const_iterator pos, value_type &item)

auto	release (iterator &pos)

auto	release (const_iterator pos)

Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Public Member Functions inherited from active::utility::Mover
virtual	~Mover ()=default

Public Attributes
bool	isHole = false
	True if the polygon is a hole.

bool	isClosed = true
	True if the polygon is closed, i.e. an edge is assumed from the last vertex to the first.

Static Public Attributes
static const vertex_index	defSize = 5
	The default number of vertices in a new polygon.

Detailed Description

A class to represent a polygon (or open polyline)

NB: Refer to PolyPoint for an description of the vertex/edge class. A polygon/polyline is simply an array of PolyPoint objects (or objects serived from PolyPoint). Note that using an array of polymorphic objects (allocated on the heap) is intentional. Although not as fast as a contiguous allocation for the entire array, supporting a polymorphic vertex type supports additional metadata describing the edge leading to the edge (or the vertex itself in some cases). The base PolyPoint class only defines a sweep angle for the edge, but polygonal shapes often add more information, e.g. graphic attributes (colour/linetype/etc) or 3D properties (edge profile/visibility/etc). Maintaining parallel arrays or vertices and edges compounds the complexity of all functions that mutate the polygon shape. Any function processing or mutating polygon vertices can treat any polygon in the same way irrespective of the associated metadata. Although there is a slight speed penalty to this approach, the ease of managing polygon content outweighs it (and alernative may not ultimately prove to be faster).

A Polygon can be marked as open or closed - open simply means there is no edge connecting the first and last vertex, i.e. an open polyline. This modifies functions like edgeSize (counts the number of edges) which will be less than the number or vertices for open polylines. Closure should not be denoted by duplicating the first into the last (this is seen as a redundancy at best).

The Polygon array acts like a loop for indexing or subscripting into a specific vertex, e.g. the last vertex can be accessed like this:

auto lastVertex = polygon[-1];

Therefore it is impossible for the index to be out of range (unless the polygon is empty). This greatly simplifies algorithms that iterate through the edges - it is perfectly valid to write:

    double len = 0.0;
    for (auto vertex = edgeSize(); vertex--; )
        len += (*this)[vertex + 1]->lengthFrom2D(*(*this)[vertex]);

…where vertex + 1 will exceed the array bounds and loop back to the first vertex (0).

Constructor & Destructor Documentation

◆ Polygon() [1/5]

Polygon::Polygon	(	vertex_index	size = defSize,
		part_index	holeSize = 0,
		bool	isClosed = true )

Constructor

Parameters

size	The number of vertices to reserve space for
holeSize	The number of holes to reserve space for
isClosed	Set to true if this polygon is closed

Here is the caller graph for this function:

◆ Polygon() [2/5]

active::geometry::Polygon::Polygon	(	const std::initializer_list< PolyPoint > &	points,
		bool	isClosed = true )

inline

Constructor

Parameters

points	The polygon vertices
isClosed	Set to true if this polygon is closed

◆ Polygon() [3/5]

Polygon::Polygon	(	const Box &	source,
		double	angle = 0.0 )

Constructor

Parameters

source	The box to base the construction of this polygon on
angle	The rotation angle of the box

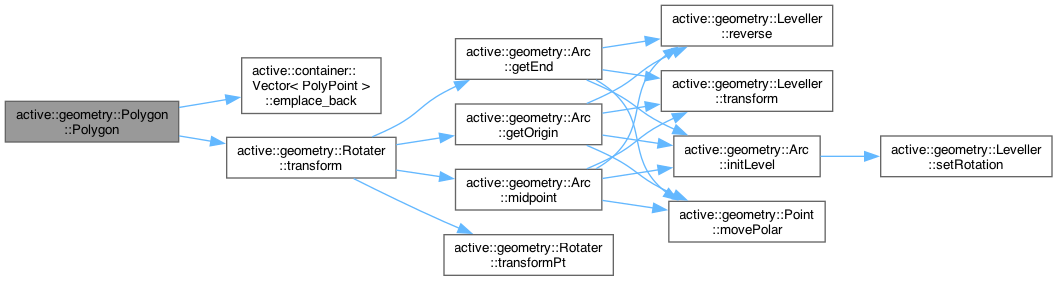

Here is the call graph for this function:

◆ Polygon() [4/5]

Polygon::Polygon ( const Polygon & source )

Copy constructor

Parameters

source The object to copy

◆ Polygon() [5/5]

Polygon::Polygon ( Polygon && source )

noexcept

Move constructor

Parameters

source The object to move

◆ ~Polygon()

virtual active::geometry::Polygon::~Polygon ( )

virtualdefault

Destructor

Member Function Documentation

◆ addNodeAlong()

vertex_id Polygon::addNodeAlong	(	vertex_id	ID,
		const Point &	pos,
		double	prec = math::eps )

Introduce a new node along the specified polygon edge

Parameters

ID	The ID of the edge vertex to start searching from
pos	The coordinates of the new node
prec	The required precision

Returns: The ID of the new node (0 on failure)

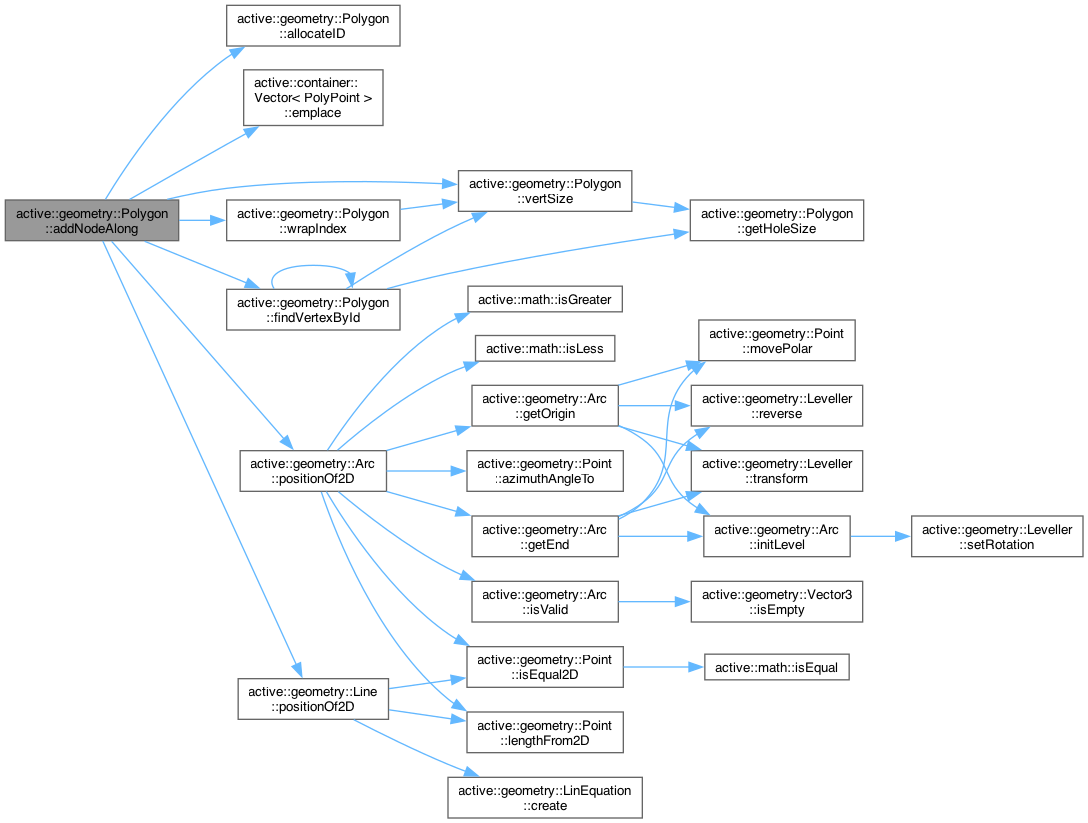

Here is the call graph for this function:

Here is the caller graph for this function:

◆ alignTo()

void Polygon::alignTo ( const Plane & plane )

Align the z coordinates of the polygon vertices to a specified plane

Parameters

plane The plane to align the polygon to

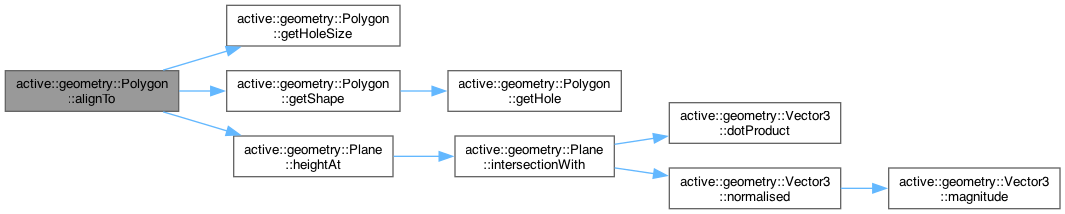

Here is the call graph for this function:

◆ allocateID()

vertex_id active::geometry::Polygon::allocateID ( )

inline

Allocate a new vertex ID

Returns: A new vertex ID

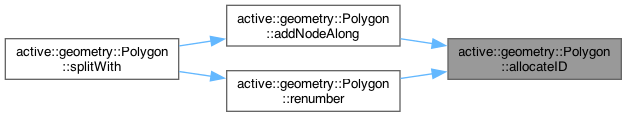

Here is the caller graph for this function:

◆ bounds()

Box::Option Polygon::bounds ( ) const

Get the polygon bounds

Returns: The polygon bounds

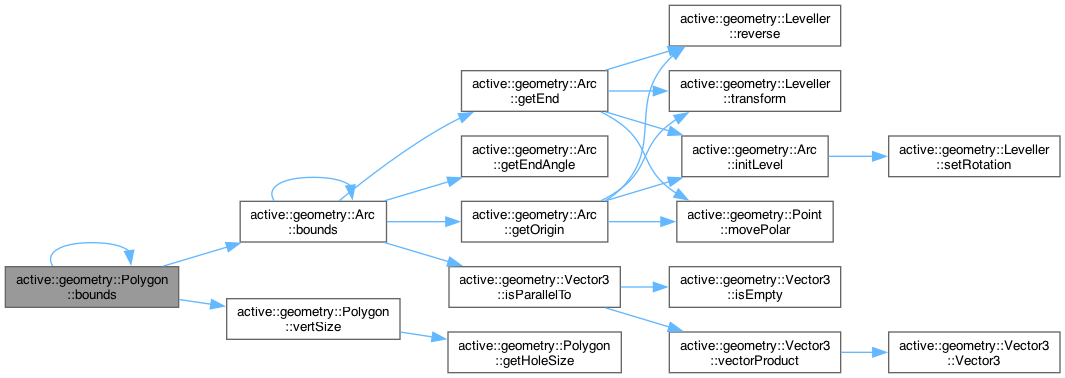

Here is the call graph for this function:

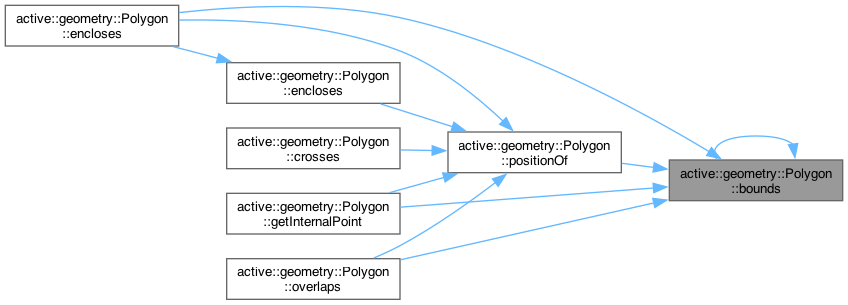

Here is the caller graph for this function:

◆ clear()

void Polygon::clear	(	bool	allVertices = true,
		bool	allHoles = true )

Clear the specified polygon content

Parameters

allVertices	True to clear all vertices
allHoles	True to clear all holes

Here is the caller graph for this function:

◆ cloneGeometry()

Polygon::Unique Polygon::cloneGeometry ( ) const

virtual

Clone method, copying just the raw geometry (all vertices will be reduced to PolyPoints)

Returns: A duplicate of this object's geometry

◆ clonePtr()

virtual Polygon * active::geometry::Polygon::clonePtr ( ) const

inlinevirtual

Clone method

Returns: A duplicate of this object

Implements active::utility::Cloner.

Here is the call graph for this function:

◆ closestPointAlong2D()

XPoint Polygon::closestPointAlong2D	(	const Point &	ref,
		bool	withHoles,
		double	prec = math::eps ) const

Get the closest point in the polygon to a given point in 2D

Parameters

ref	The reference point
prec	The required precision

Returns: The closest point in the polygon to the reference point, coupled with the intercept position info

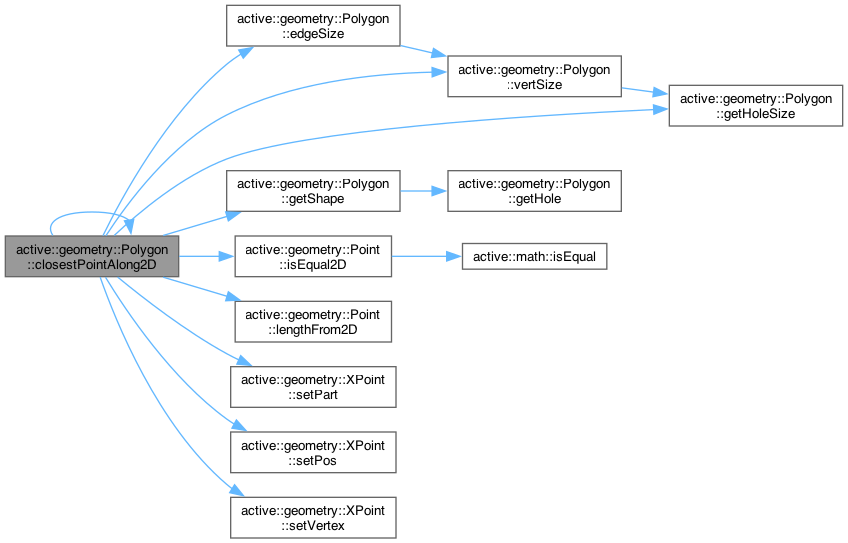

Here is the call graph for this function:

Here is the caller graph for this function:

◆ closestPointAlong3D()

XPoint Polygon::closestPointAlong3D	(	const Point &	ref,
		bool	withHoles,
		double	prec = math::eps ) const

Get the closest point in the polygon to a given point in 3D

Parameters

ref	The reference point
prec	The required precision

Returns: The closest point in the polygon to the reference point, coupled with the intercept position info

Here is the call graph for this function:

Here is the caller graph for this function:

◆ crosses()

bool Polygon::crosses	(	const Line &	ref,
		double	prec = math::eps ) const

Determine if this crosses a specified line (not just touching)

Parameters

ref	The reference line
prec	The required precision

Returns: True if the polygon perimeter crosses the line

Here is the call graph for this function:

◆ edgeSize()

vertex_index active::geometry::Polygon::edgeSize ( ) const

inline

Get the number of edges in the polygon

Returns: The number of edges (dependent on whether a closed path is defined)

Here is the call graph for this function:

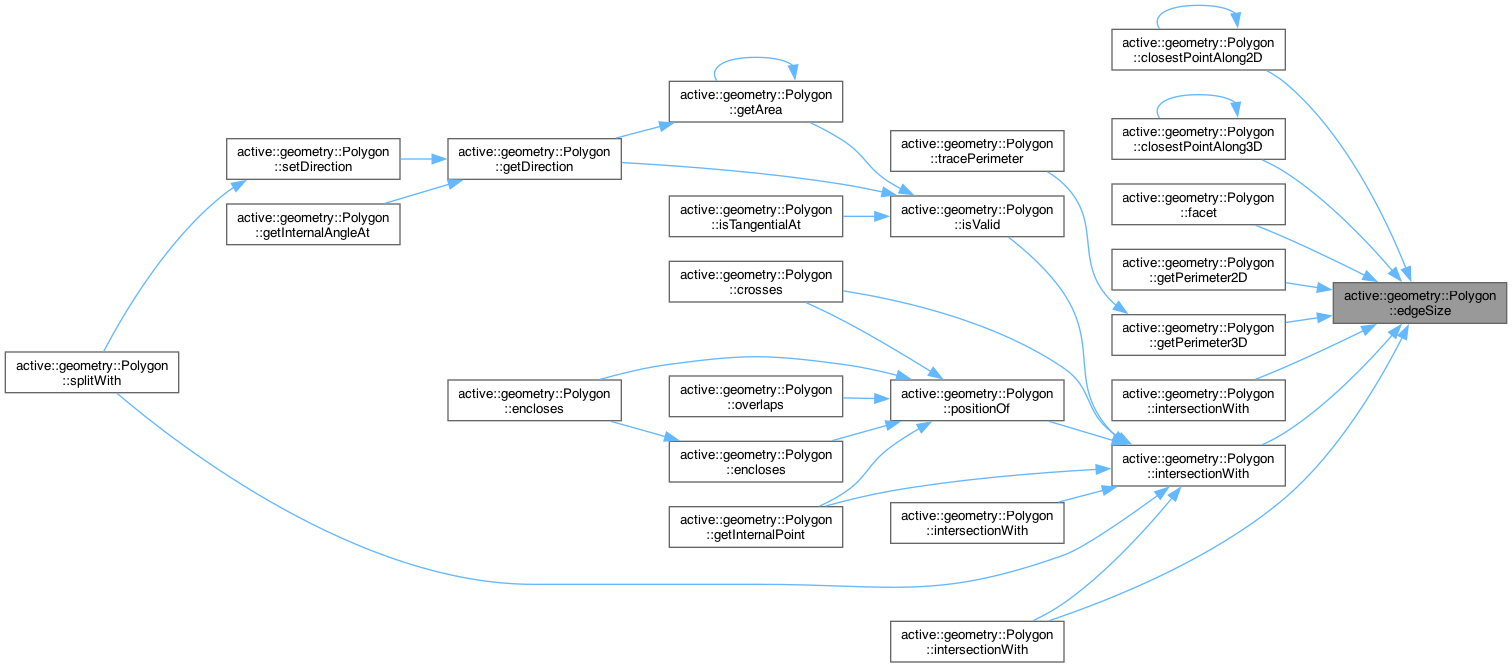

Here is the caller graph for this function:

◆ emplaceHole() [1/2]

Polygon * Polygon::emplaceHole ( Polygon && hole )

Emplace a hole in the polygon

Parameters

hole	The hole to emplace

Returns: The emplaced hole

Here is the call graph for this function:

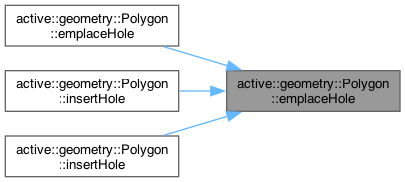

◆ emplaceHole() [2/2]

Polygon * Polygon::emplaceHole ( Polygon::Unique && hole )

Emplace a hole in the polygon

Parameters

hole	The hole to emplace

Returns: The emplaced hole

Here is the caller graph for this function:

◆ encloses() [1/2]

bool Polygon::encloses	(	const Point &	ref,
		double	prec = math::eps ) const

Determine if the this encloses a specified point (closure assumed)

Parameters

ref	The reference point
prec	The required precision

Returns: True if the point is enclosed by the polygon (in or along)

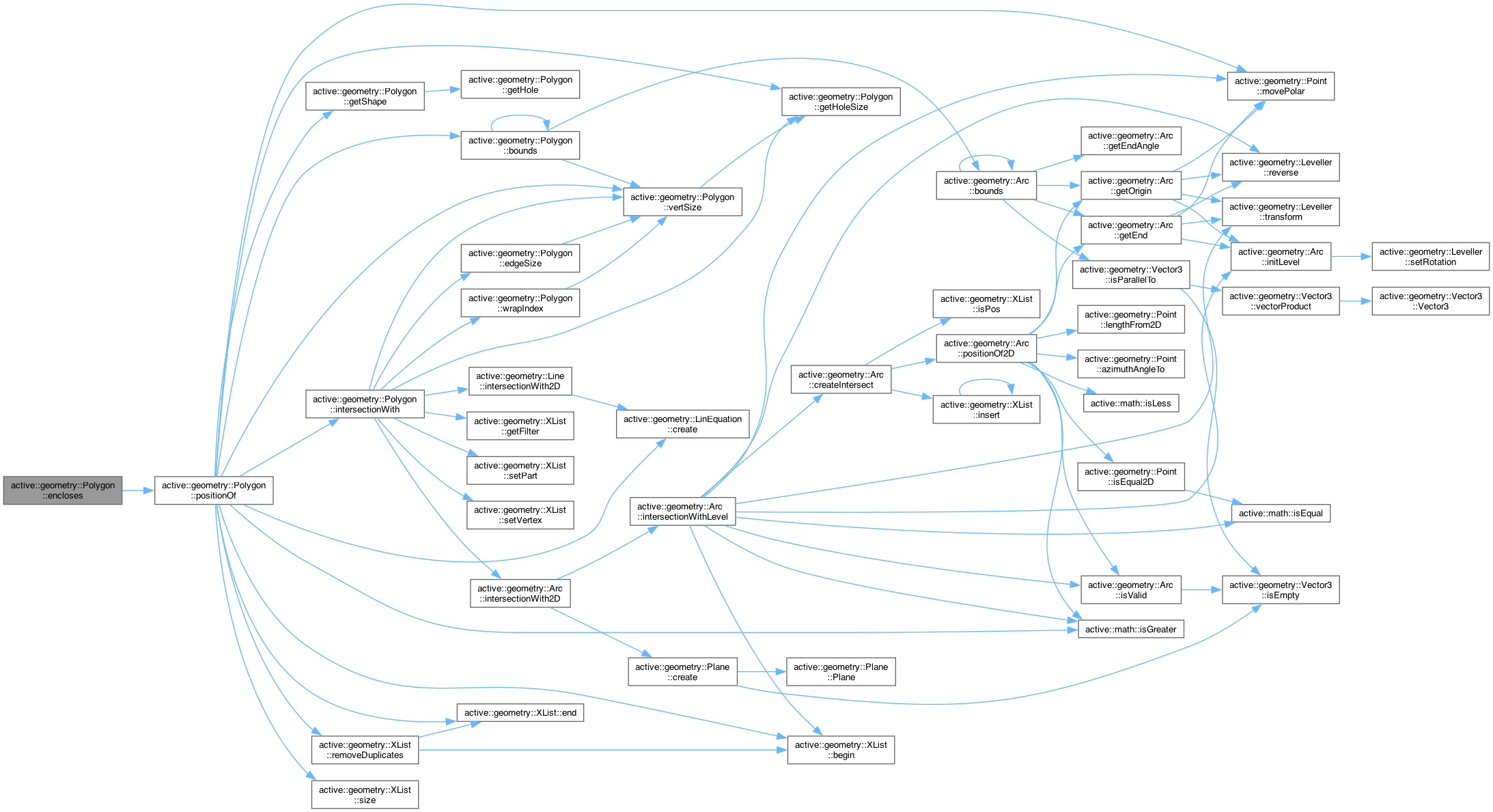

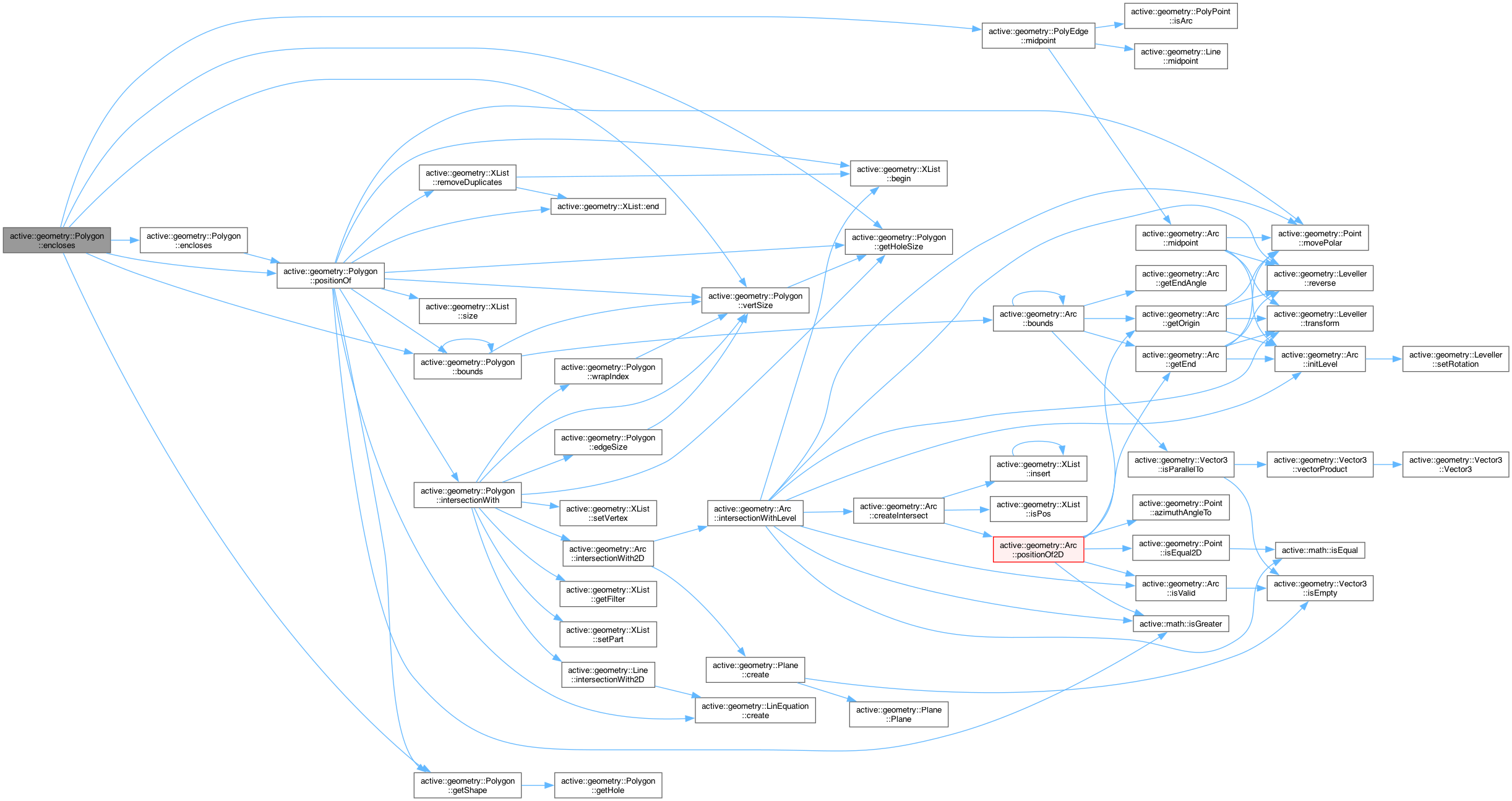

Here is the call graph for this function:

Here is the caller graph for this function:

◆ encloses() [2/2]

bool Polygon::encloses	(	const Polygon &	ref,
		double	prec = math::eps ) const

Determine if the this encloses a specified polygon (closure assumed)

Parameters

ref	The reference point
prec	The required precision

Returns: True if the polygon is enclosed by this (in or along)

Here is the call graph for this function:

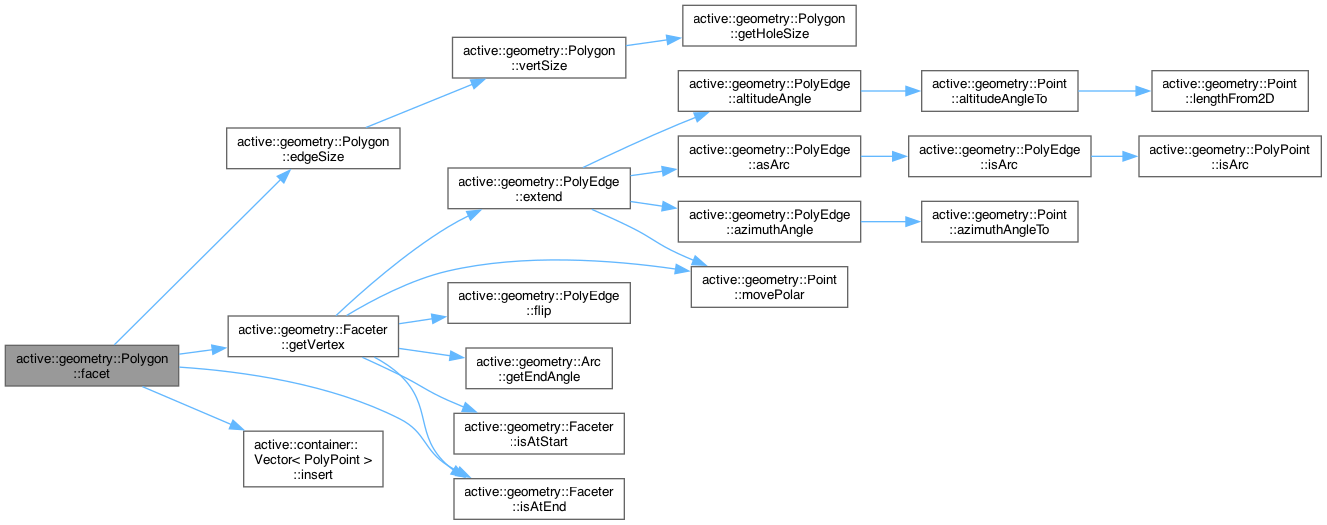

◆ facet()

void Polygon::facet ( )

Facet the curved edges on the polygon

Here is the call graph for this function:

◆ findVertexById()

std::optional< Polygon::Index > Polygon::findVertexById ( vertex_id ID ) const

Find a vertex with the specified ID (optionally searching holes)

Parameters

ID	The ID to search for

Returns: The index of a vertex with the specified ID (nullopt on failure)

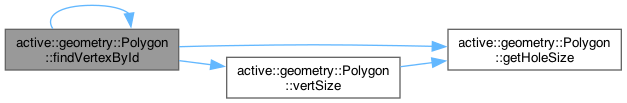

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findVertexByLocation()

std::optional< Polygon::Index > Polygon::findVertexByLocation	(	const Point &	pt,
		double	prec = math::eps ) const

Find a vertex at the specified point

Parameters

pt	The point to match
prec	The required precision

Returns: The index of a vertex at the specified point (npos = failure)

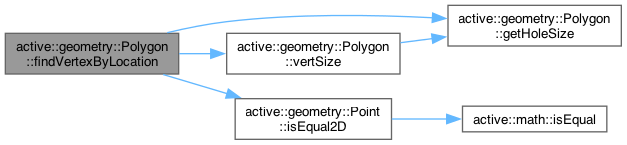

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getArea()

double Polygon::getArea	(	bool	isNet = true,
		bool	isResultSigned = false ) const

Calculate the polygon area (closure assumed)

Parameters

isNet	True if the net area is calculated (less holes)
isResultSigned	True if the result should be signed (reflecting the polygon direction)

Returns: The total area

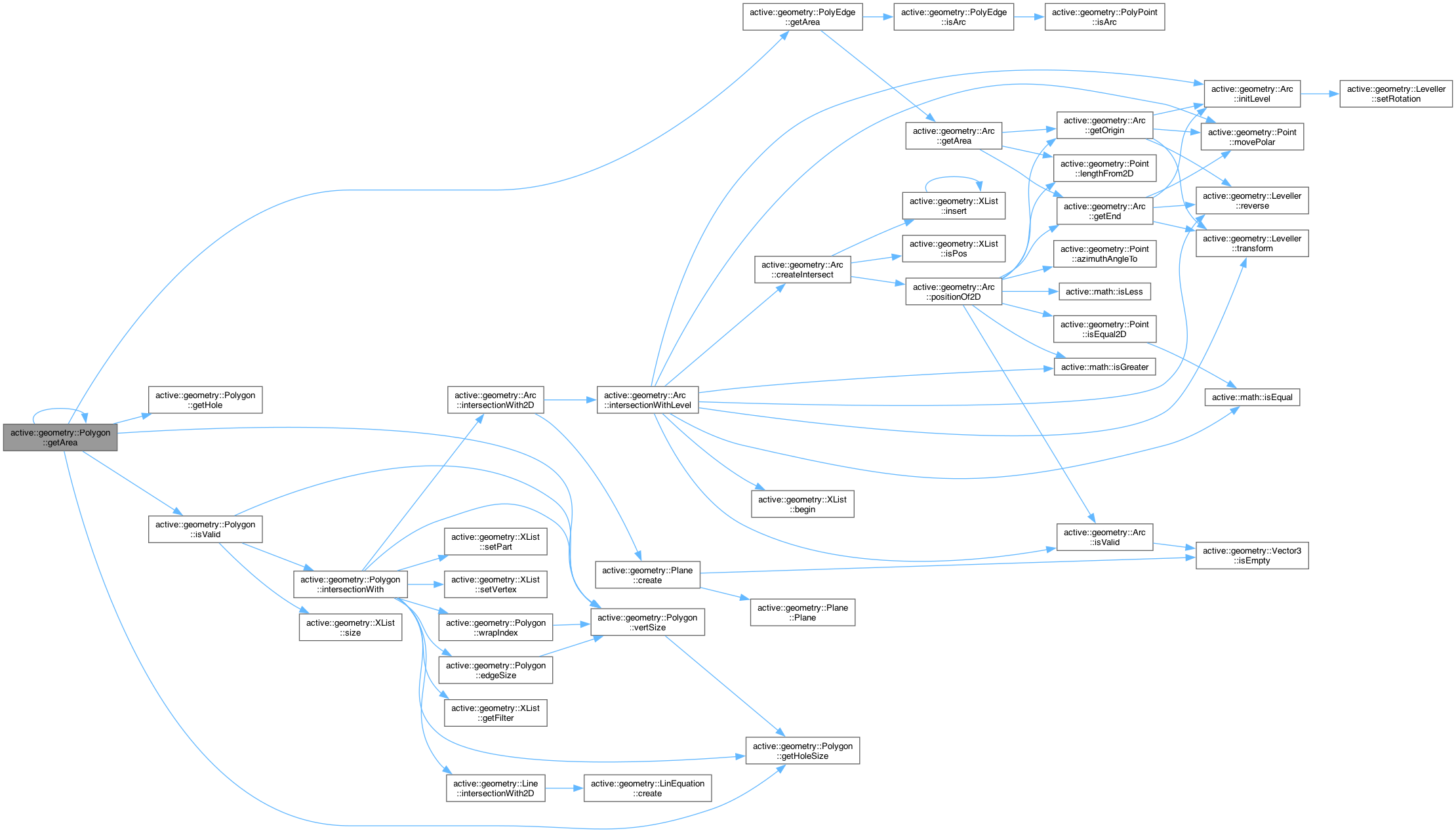

Here is the call graph for this function:

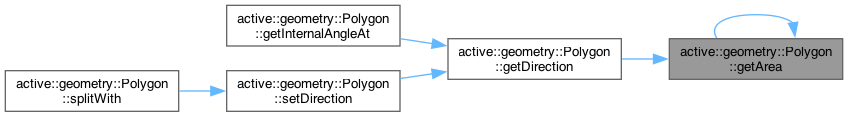

Here is the caller graph for this function:

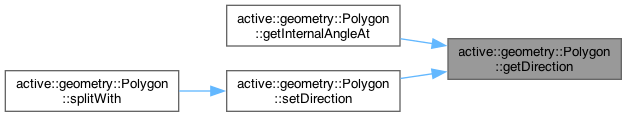

◆ getDirection()

std::optional< Rotation > Polygon::getDirection ( ) const

Get the direction of the polygon

Returns: The polygon direction (nullopt if the polygon is invalid)

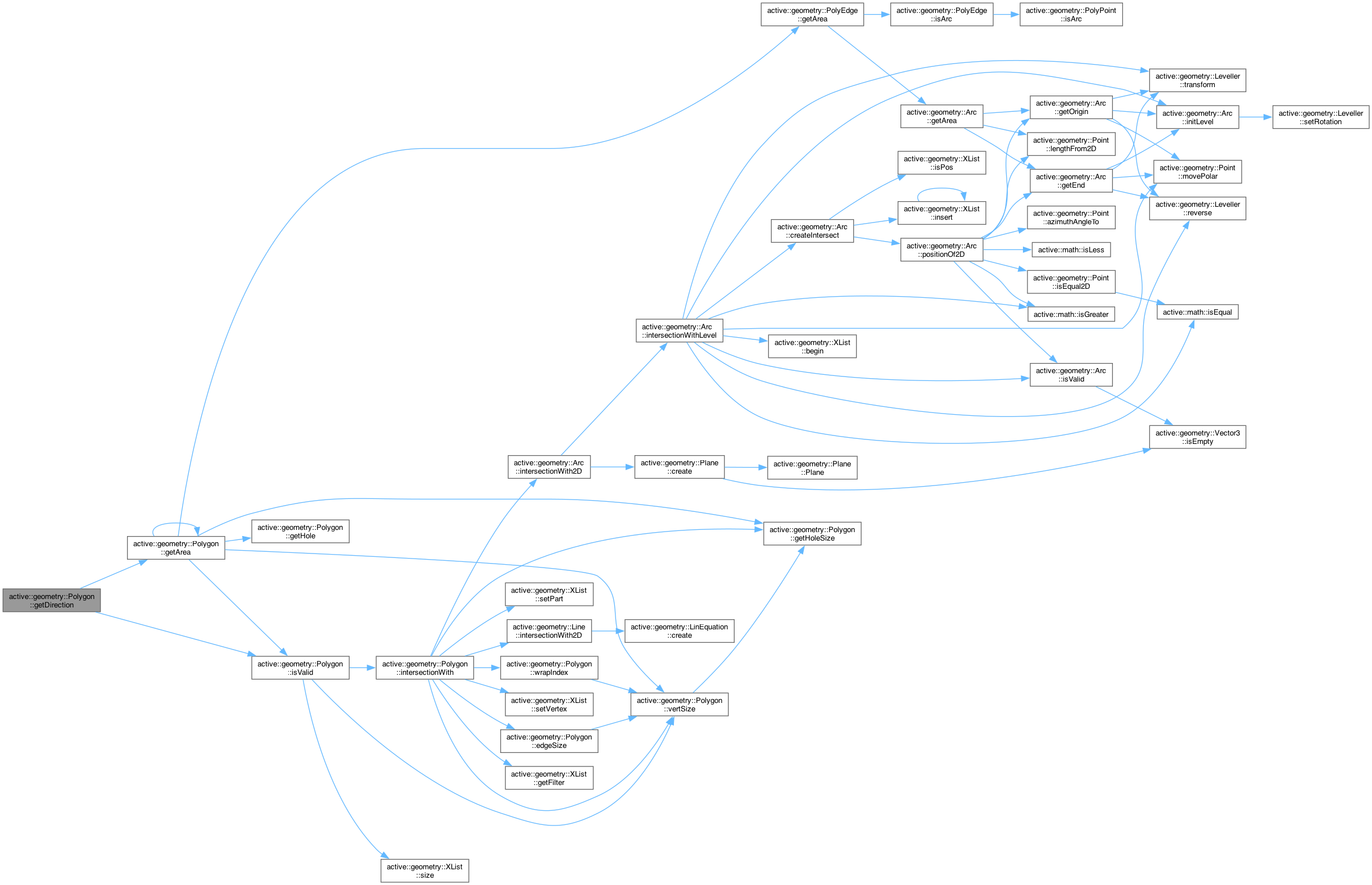

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getHole()

Polygon * Polygon::getHole ( part_index which ) const

Get the requested hole

Parameters

which The index of the polygon to get

Returns: The requested polygon

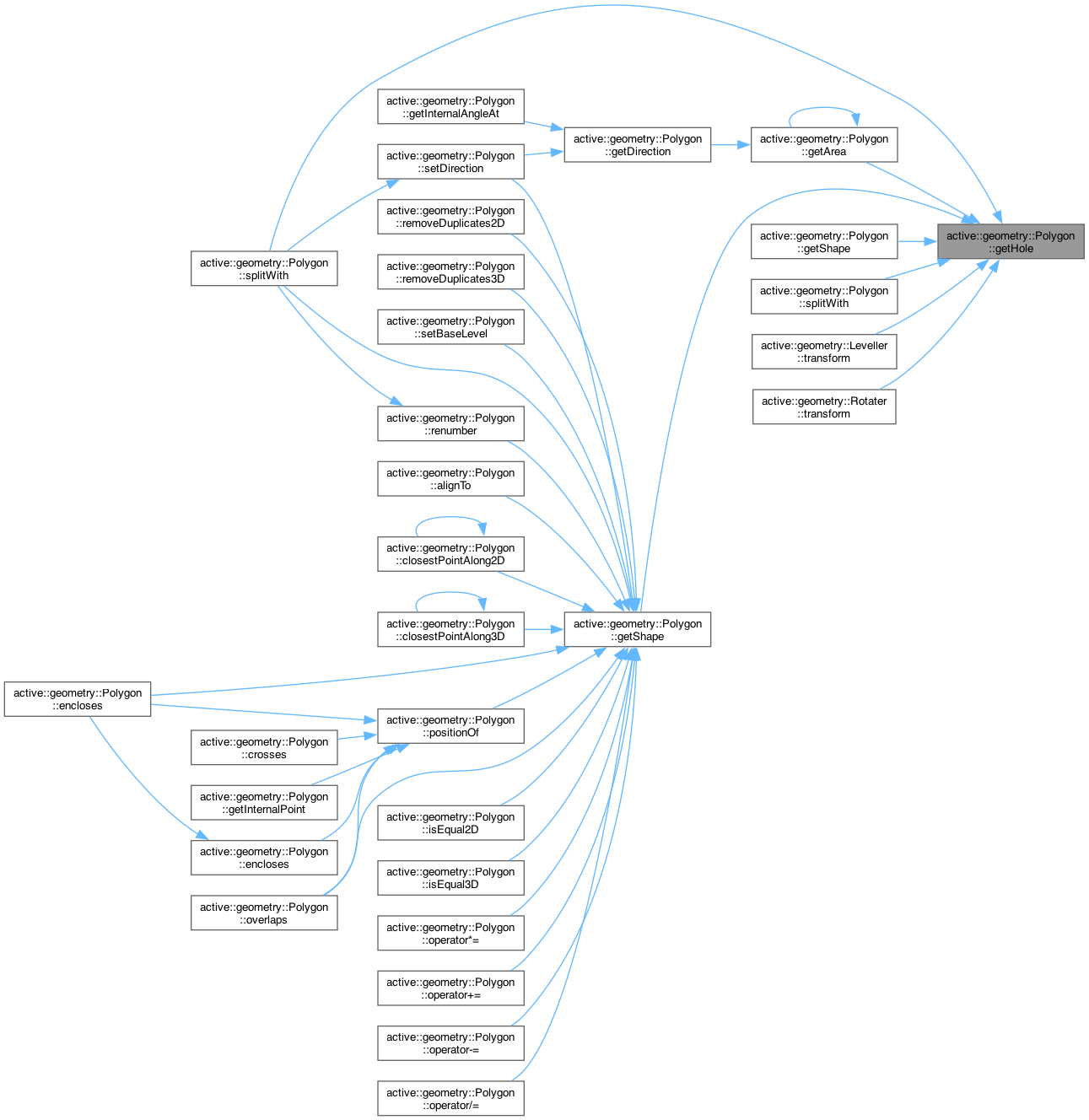

Here is the caller graph for this function:

◆ getHoles()

PolyVector * active::geometry::Polygon::getHoles ( ) const

inline

Get the list of holes in this polygon

Returns: The list of holes in this polygon

◆ getHoleSize()

part_index Polygon::getHoleSize ( ) const

Get the number of holes in the polygon

Returns: The number of holes in the polygon

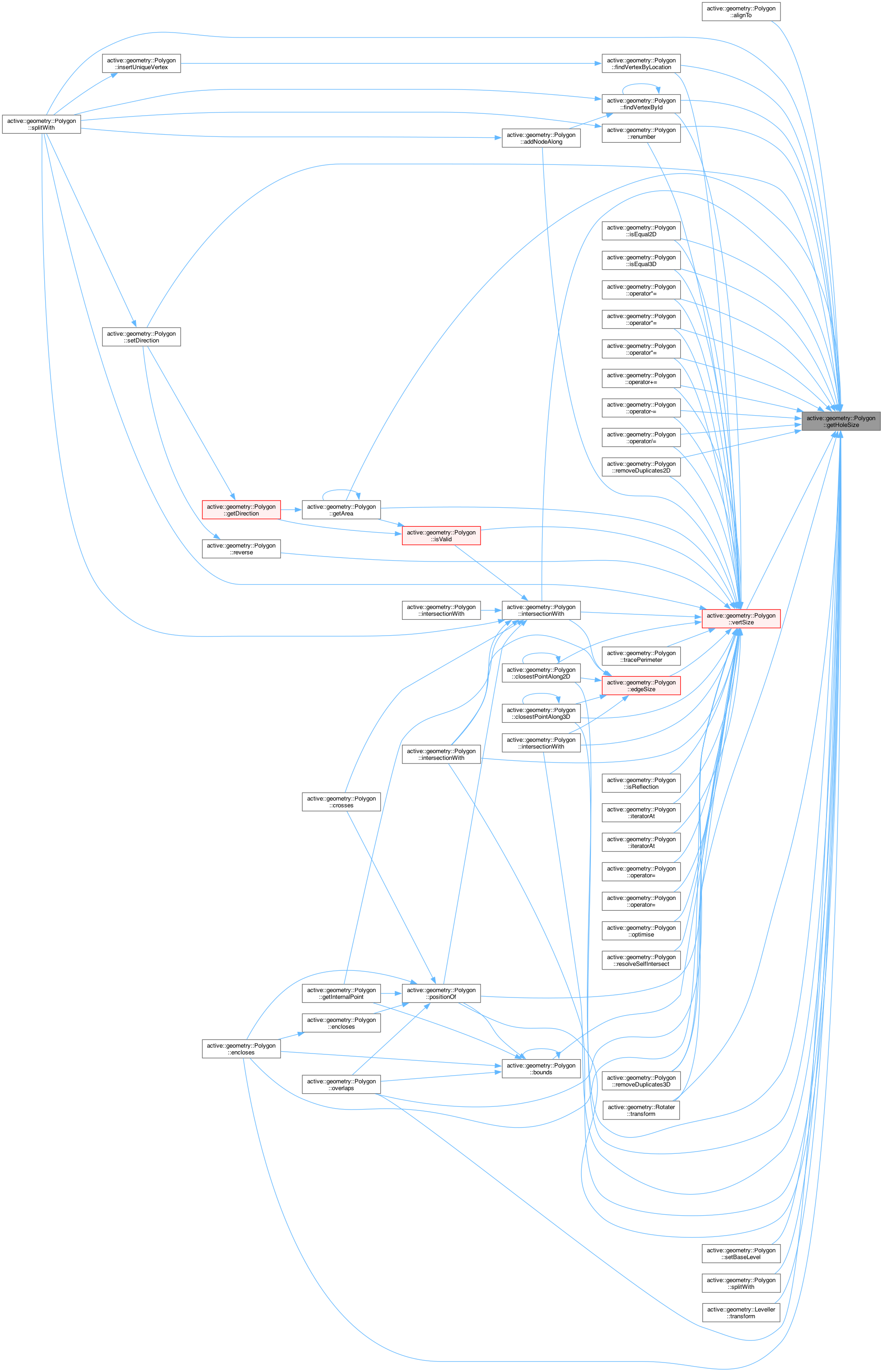

Here is the caller graph for this function:

◆ getInternalAngleAt()

double Polygon::getInternalAngleAt ( vertex_index index ) const

Get the internal angle between the edges at the given index index The vertex index return The angle between the two edges

Here is the call graph for this function:

◆ getInternalPoint()

Point::Option Polygon::getInternalPoint ( ) const

Get a point inside the polygon

Returns: A point inside the polygon (nullopt on failure)

Here is the call graph for this function:

◆ getPerimeter2D()

double Polygon::getPerimeter2D ( ) const

Calculate the polygon perimeter (non-closure handled)

Returns: The total perimeter (plan only)

Here is the call graph for this function:

◆ getPerimeter3D()

double Polygon::getPerimeter3D ( ) const

Calculate the polygon perimeter (non-closure handled)

Returns: The total perimeter (3D polyline)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getShape() [1/2]

Polygon & Polygon::getShape ( part_index index )

Get one of the subpolygons of which this polygon consists

Parameters

index The index of the shape

Returns: If index == 0, the polygon itself, otherwise the hole with number index - 1

Here is the call graph for this function:

◆ getShape() [2/2]

const Polygon & Polygon::getShape ( part_index index ) const

Get one of the subpolygons of which this polygon consists

Parameters

index The index of the shape

Returns: If index == 0, the polygon itself, otherwise the hole with number index - 1

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getTopID()

vertex_id active::geometry::Polygon::getTopID ( ) const

inline

Get the highest vertex ID

Returns: The highest vertex ID

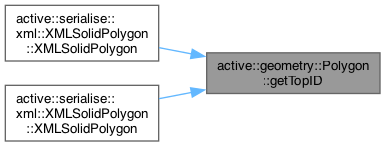

Here is the caller graph for this function:

◆ insertHole() [1/2]

Polygon * Polygon::insertHole ( const Polygon & hole )

Insert a hole in the polygon

Parameters

hole	The hole to insert

Returns: The inserted hole

Here is the call graph for this function:

◆ insertHole() [2/2]

Polygon * Polygon::insertHole ( Polygon * hole = nullptr )

Insert a hole in the polygon

Parameters

hole	The hole to insert (nullptr = create a new polygon)

Returns: The inserted hole

Here is the call graph for this function:

◆ insertUniqueVertex()

bool Polygon::insertUniqueVertex	(	PolyPoint &&	pt,
		vertOption	where = std::nullopt )

virtual

Insert a new node to a polygon, testing that the vertex is unique

Parameters

pt	The new node to insert
where	The position to insert the new point (nullopt = at the end)

Returns: True if the new vertex is unique (not inserted if false)

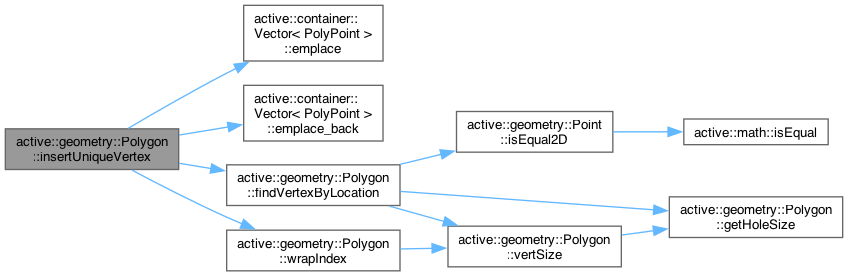

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersectionWith() [1/4]

vertex_index Polygon::intersectionWith	(	const Arc &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection(s) between this polygon and an arc

Parameters

ref	The reference arc
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

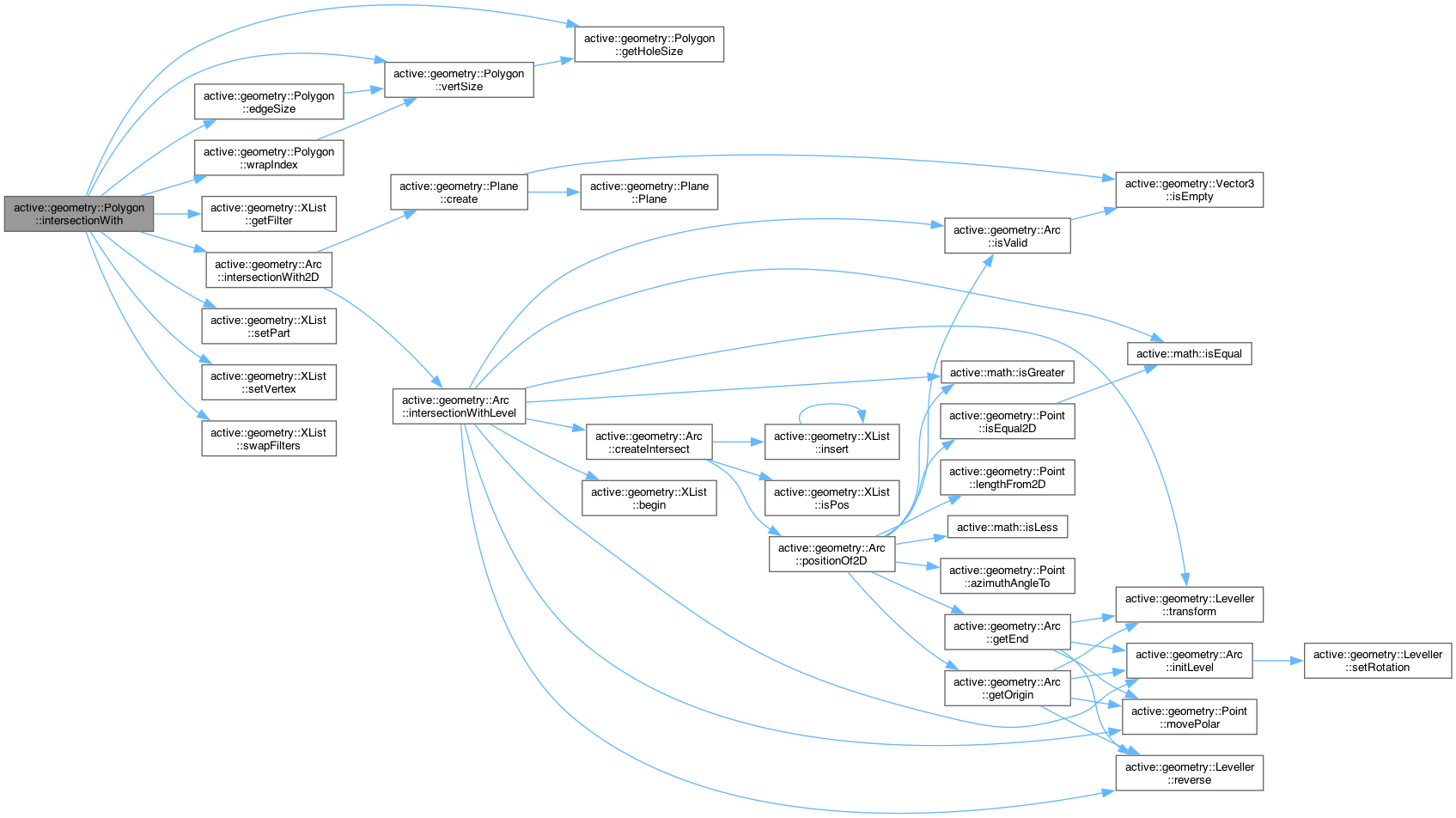

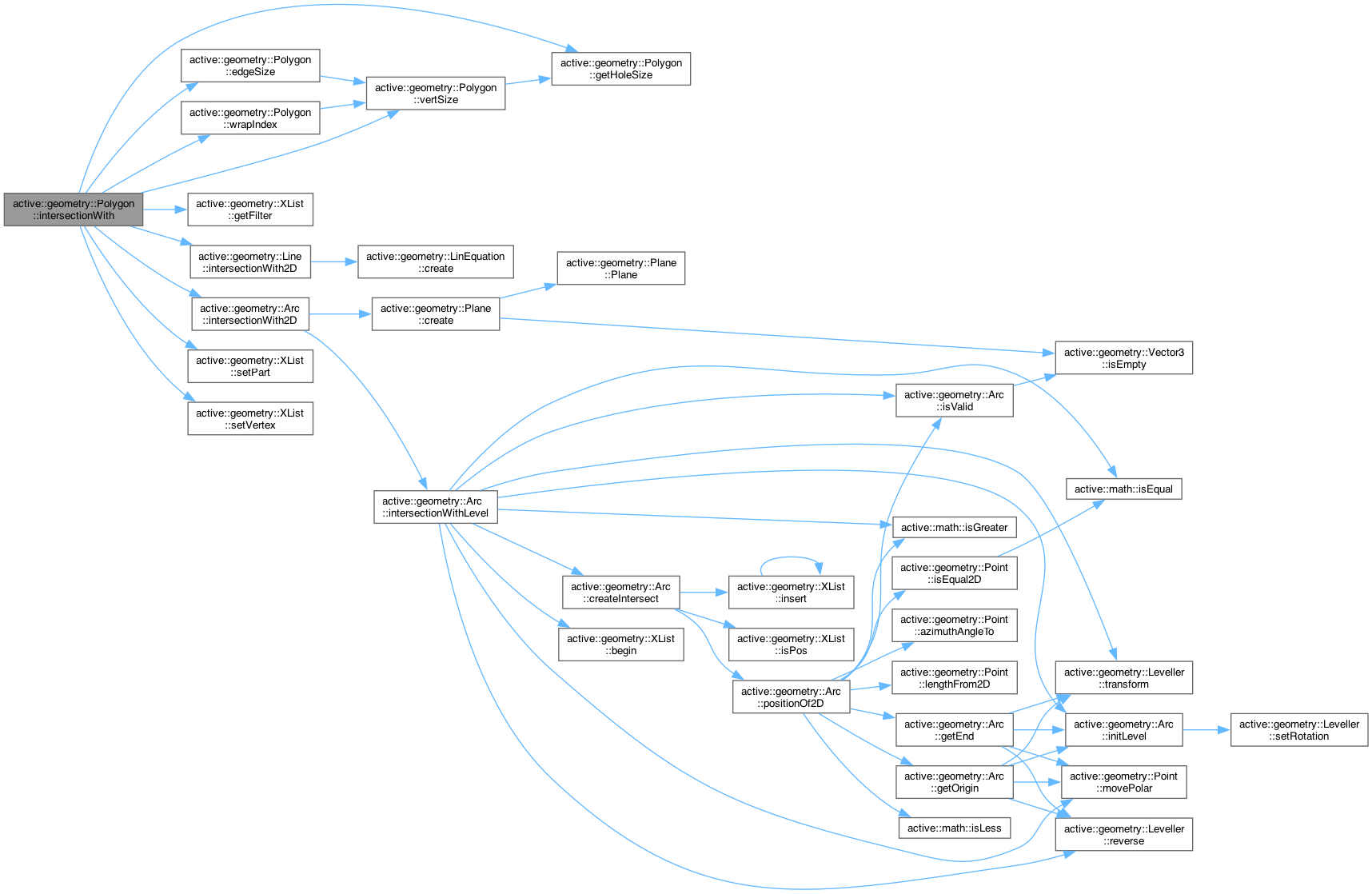

Here is the call graph for this function:

◆ intersectionWith() [2/4]

vertex_index Polygon::intersectionWith	(	const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection(s) between this polygon and a line

Parameters

ref	The reference line
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

Here is the call graph for this function:

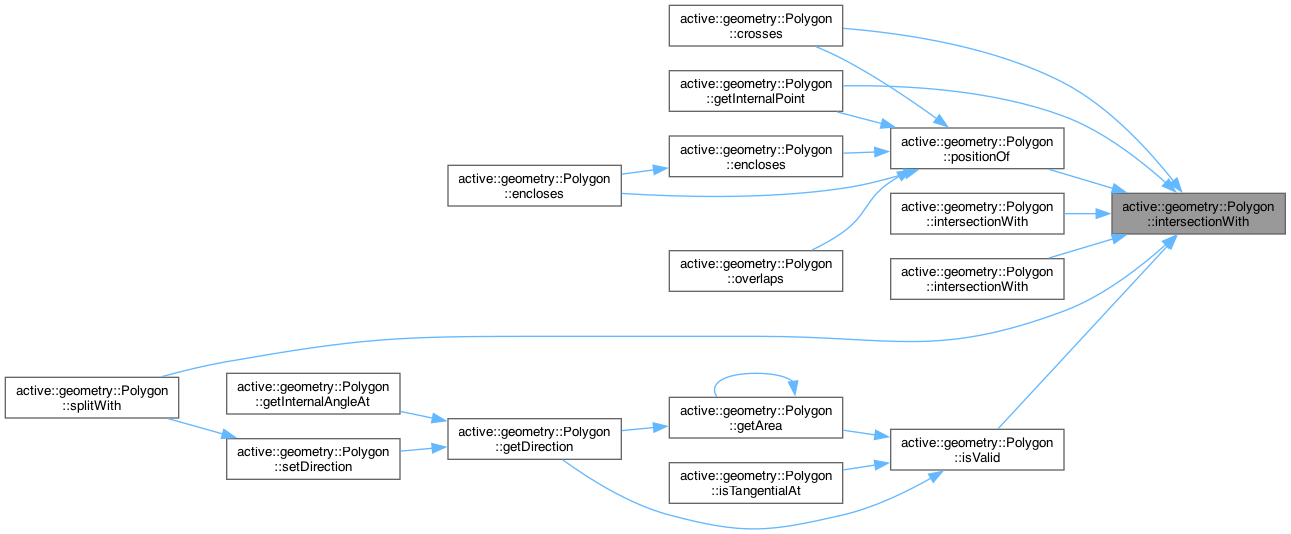

Here is the caller graph for this function:

◆ intersectionWith() [3/4]

vertex_index Polygon::intersectionWith	(	const PolyEdge &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection(s) between this polygon and a poly-edge

Parameters

ref	The reference poly-edge
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

Here is the call graph for this function:

◆ intersectionWith() [4/4]

vertex_index Polygon::intersectionWith	(	const Polygon &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection(s) between this polygon and another polygon

Parameters

ref	The reference polygon
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

Here is the call graph for this function:

◆ isEqual2D()

bool Polygon::isEqual2D	(	const Polygon &	ref,
		double	prec = math::eps ) const

Determine if two polygons are equal in 2D

Parameters

ref	The polygon to compare
prec	The required precision

Returns: True if the polygons are identical

Here is the call graph for this function:

◆ isEqual3D()

bool Polygon::isEqual3D	(	const Polygon &	ref,
		double	prec = math::eps ) const

Determine if two polygons are equal in 3D

Parameters

ref	The polygon to compare
prec	The required precision

Returns: True if the polygons are identical

Here is the call graph for this function:

◆ isReflection()

bool Polygon::isReflection	(	vertex_index	index,
		const LinEquation &	ref,
		double	prec = math::eps ) const

Determine if the polygon reflects off a specified line at a specified vertex

Parameters

index	The index of the vertex to test
ref	The reference line
prec	The required precision

Returns: True if a reflection ocurrs at the specified index

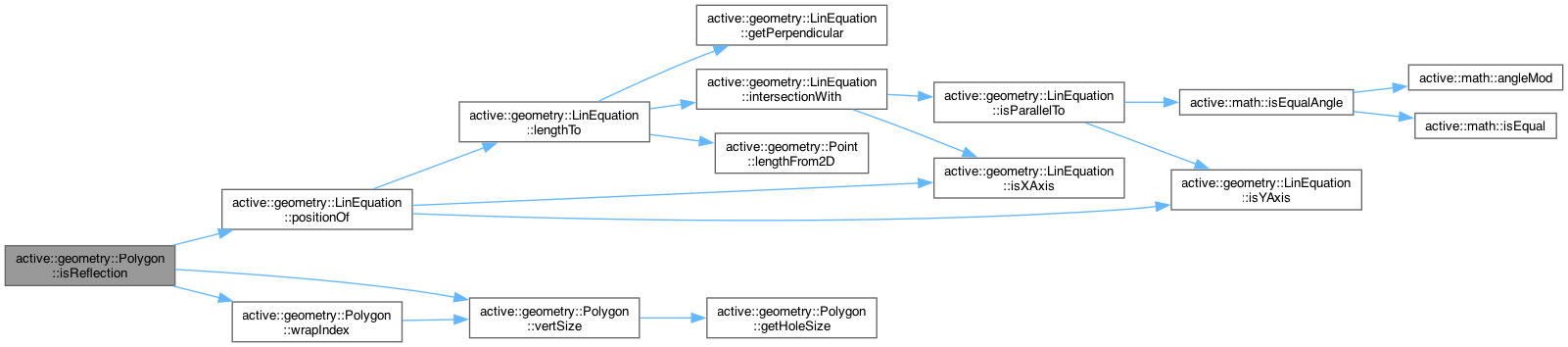

Here is the call graph for this function:

◆ isTangentialAt()

bool Polygon::isTangentialAt	(	vertex_index	vertex,
		double	anglePrec = math::epsAngle ) const

Determine if the edges at a specified vertex are tangential

Parameters

vertex	The index of the vertex to check
anglePrec	The angle precision

Returns: true if the incident and emerging edges are tangential

Here is the call graph for this function:

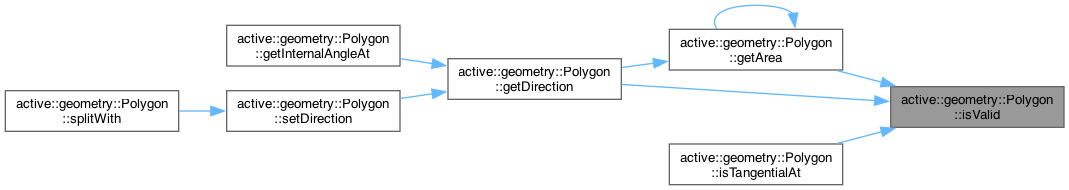

◆ isValid()

bool Polygon::isValid	(	bool	doIntersect = false,
		double	prec = math::eps ) const

virtual

Determine if the polygon is valid (must have 2 or more vertices)

Parameters

doIntersect	True if the polygon should be checked for intersecting edges (crossing each other)
prec	The required precision

Returns: True if this is a valid polygon

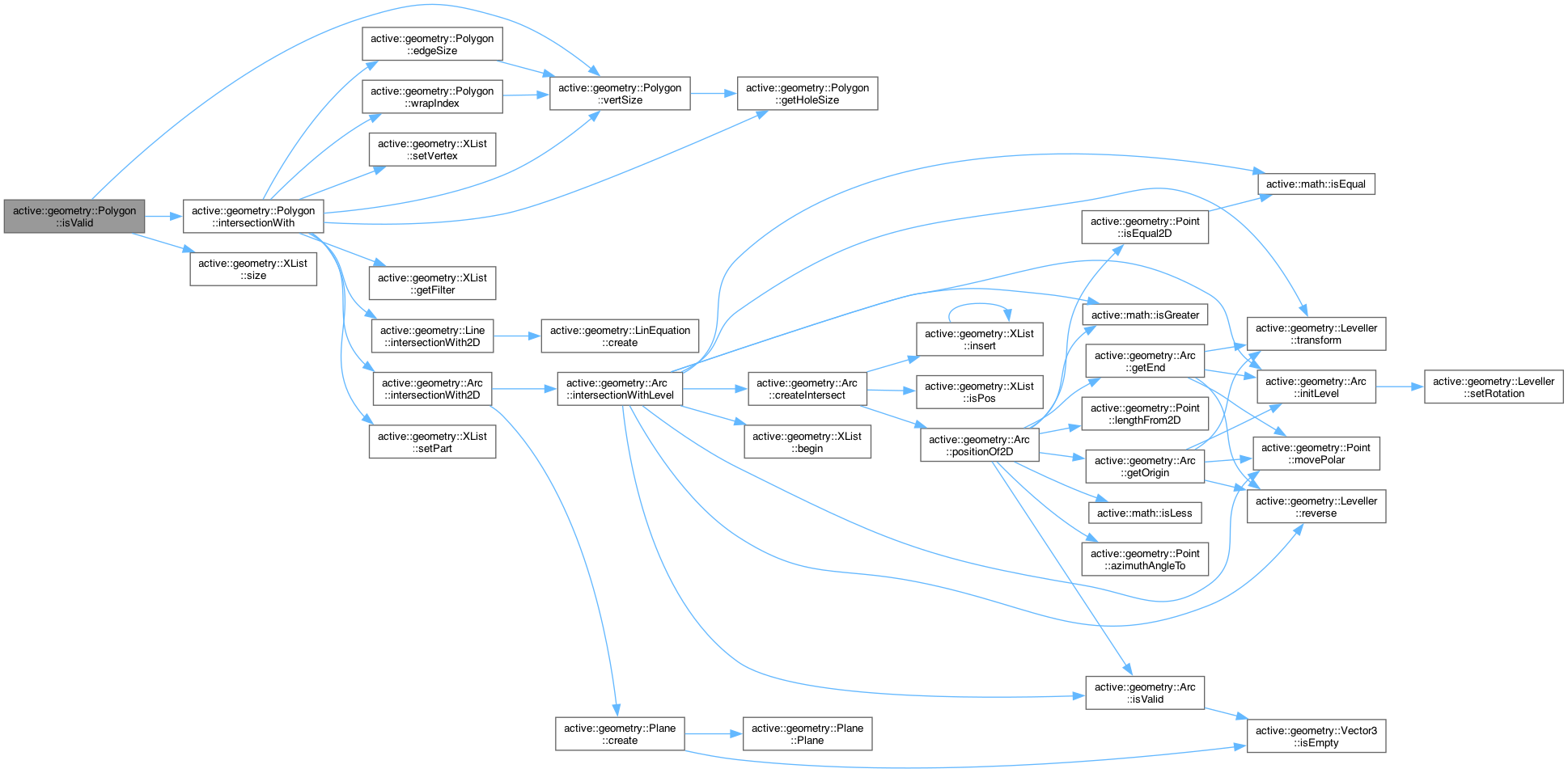

Here is the call graph for this function:

Here is the caller graph for this function:

◆ iteratorAt() [1/2]

Polygon::base::iterator Polygon::iteratorAt ( vertex_index index )

Get an iterator pointing to the specified vertex

Parameters

index The vertex index (will be wrapped)

Returns: The requested iterator

Here is the call graph for this function:

◆ iteratorAt() [2/2]

Polygon::base::const_iterator Polygon::iteratorAt ( vertex_index index ) const

Get an iterator pointing to the specified vertex

Parameters

index The vertex index (will be wrapped)

Returns: The requested iterator

Here is the call graph for this function:

◆ movePtr()

virtual Polygon * active::geometry::Polygon::movePtr ( )

inlinevirtual

Object cloning with move

Returns: A clone of this object with resources moved to the clone

Implements active::utility::Mover.

Here is the call graph for this function:

◆ operator*() [1/3]

Polygon Polygon::operator* ( const double & mult ) const

Multiplication operator

Parameters

mult	The amount to scale the polygon by

Returns: A scaled copy of this

◆ operator*() [2/3]

Polygon Polygon::operator* ( const Matrix3x3 & mult ) const

Multiplication operator

Parameters

mult	The matrix to multiply the polygon by

Returns: The result

◆ operator*() [3/3]

Polygon Polygon::operator* ( const Matrix4x4 & mult ) const

Multiplication operator

Parameters

mult	The matrix to multiply the polygon by

Returns: The result

◆ operator*=() [1/3]

Polygon & Polygon::operator*= ( const double & mult )

Multiplication with assignment operator

Parameters

mult	The amount to scale the polygon by

Returns: A reference to this

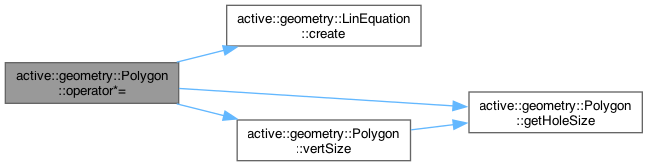

Here is the call graph for this function:

◆ operator*=() [2/3]

Polygon & Polygon::operator*= ( const Matrix3x3 & mult )

Multiplication with assignment operator

Parameters

mult	The matrix to multiply the polygon by

Returns: A reference to this

Here is the call graph for this function:

◆ operator*=() [3/3]

Polygon & Polygon::operator*= ( const Matrix4x4 & mult )

Multiplication with assignment operator

Parameters

mult	The matrix to multiply the polygon by

Returns: A reference to this

Here is the call graph for this function:

◆ operator+()

Polygon Polygon::operator+ ( const Point & offset ) const

Addition operator

Parameters

offset The amount to offset the polygon by

Returns: An offset copy of this

◆ operator+=()

Polygon & Polygon::operator+= ( const Point & offset )

Addition with assignment operator

Parameters

offset The amount to offset the polygon by

Returns: A reference to this

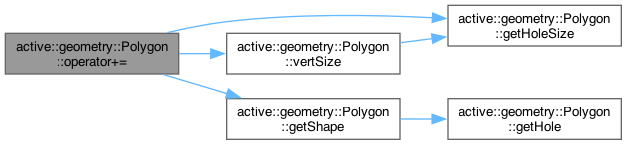

Here is the call graph for this function:

◆ operator-()

Polygon Polygon::operator- ( const Point & offset ) const

Subtraction operator

Parameters

offset The amount to offset the polygon by

Returns: An offset copy of this

◆ operator-=()

Polygon & Polygon::operator-= ( const Point & offset )

Subtraction with assignment operator

Parameters

offset The amount to offset the polygon by

Returns: A reference to this

Here is the call graph for this function:

◆ operator/()

Polygon Polygon::operator/ ( const double & mult ) const

Division operator

Parameters

mult	The amount to scale the polygon by

Returns: A scaled copy of this

◆ operator/=()

Polygon & Polygon::operator/= ( const double & mult )

Division with assignment operator

Parameters

mult	The amount to scale the polygon by

Returns: A reference to this

Here is the call graph for this function:

◆ operator=() [1/2]

Polygon & Polygon::operator= ( const Polygon & source )

virtual

Assignment operator

Parameters

source The object to copy

Returns: A reference to this

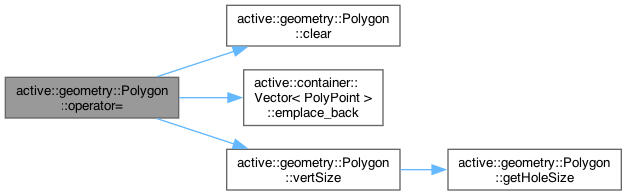

Here is the call graph for this function:

◆ operator=() [2/2]

Polygon & Polygon::operator= ( Polygon && source )

virtualnoexcept

Assignment operator

Parameters

source The object to move

Returns: A reference to this

Here is the call graph for this function:

◆ operator[]() [1/2]

PolyPoint * Polygon::operator[] ( vertex_index index )

Subscript operator

Parameters

index An index into the polygon

Returns: The indexed vertex

Here is the call graph for this function:

◆ operator[]() [2/2]

const PolyPoint * Polygon::operator[] ( vertex_index index ) const

Subscript operator

Parameters

index An index into the polygon

Returns: The indexed vertex

Here is the call graph for this function:

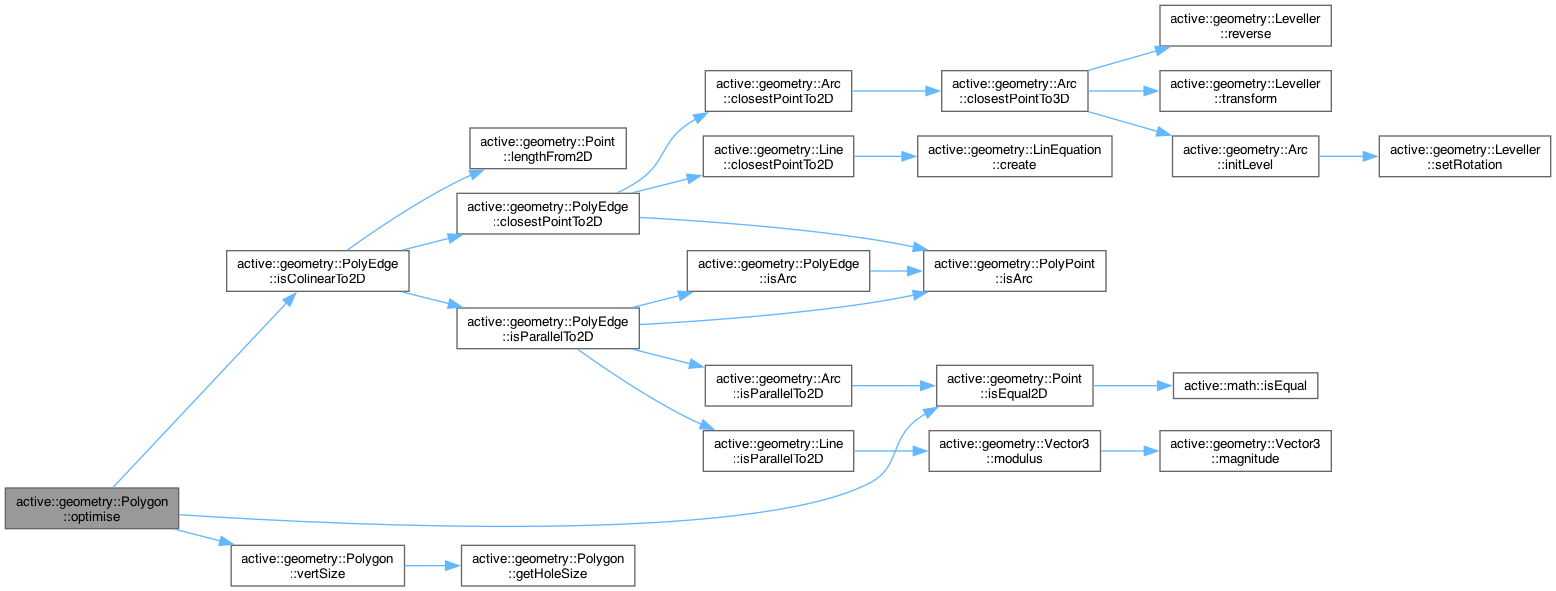

◆ optimise()

void Polygon::optimise	(	bool	doColin = false,
		double	prec = math::eps )

Optimise the polygon (eliminate duplicates, co-linear points) param doColin True if colinear points should be removed

Parameters

prec	The required precision

Here is the call graph for this function:

◆ overlaps()

bool Polygon::overlaps	(	const Polygon &	ref,
		double	prec = math::eps ) const

Determine if the this overlaps a specified polygon (closure assumed)

Parameters

ref	The reference point
prec	The required precision

Returns: True if the polygon is overlapped by this (partial or total)

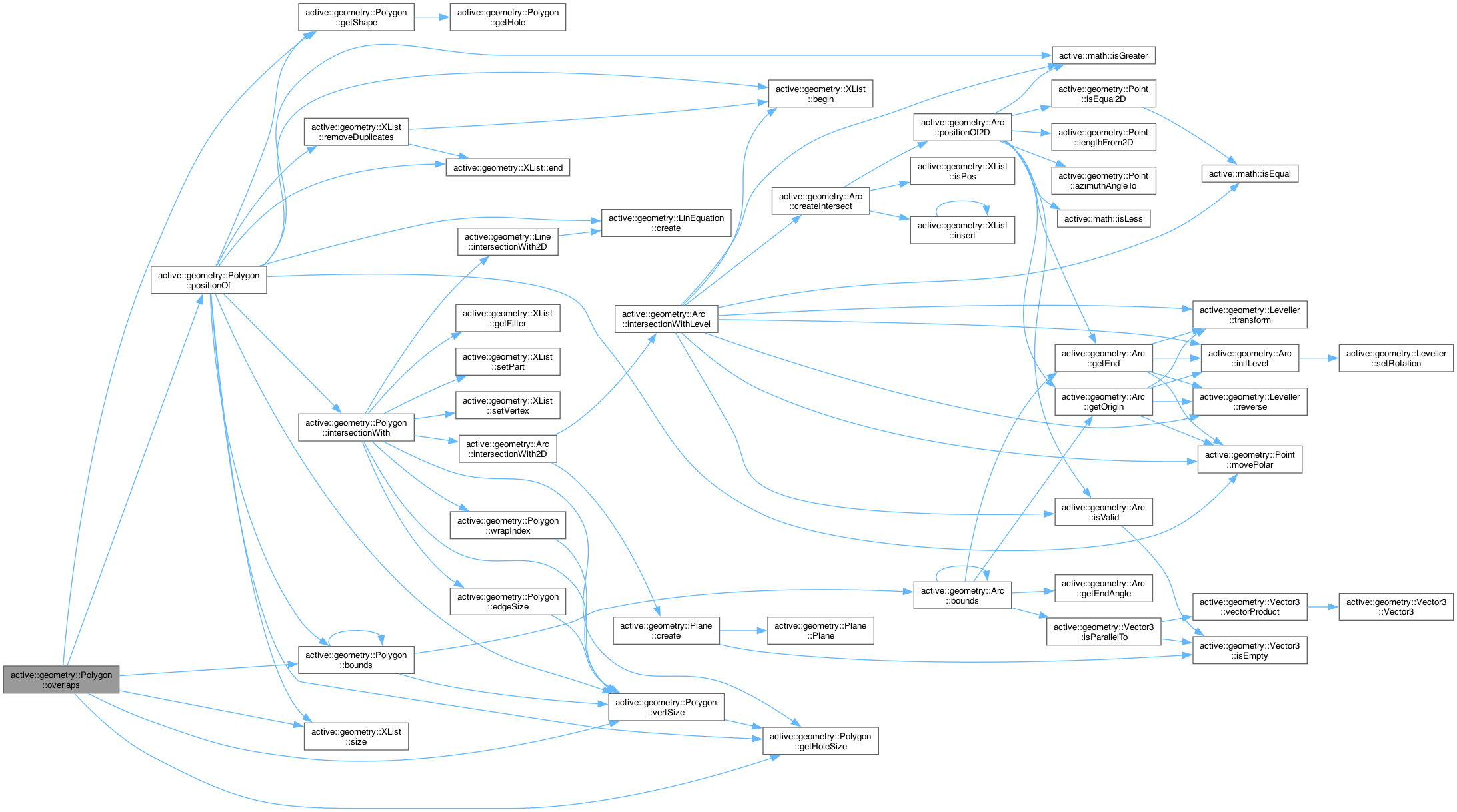

Here is the call graph for this function:

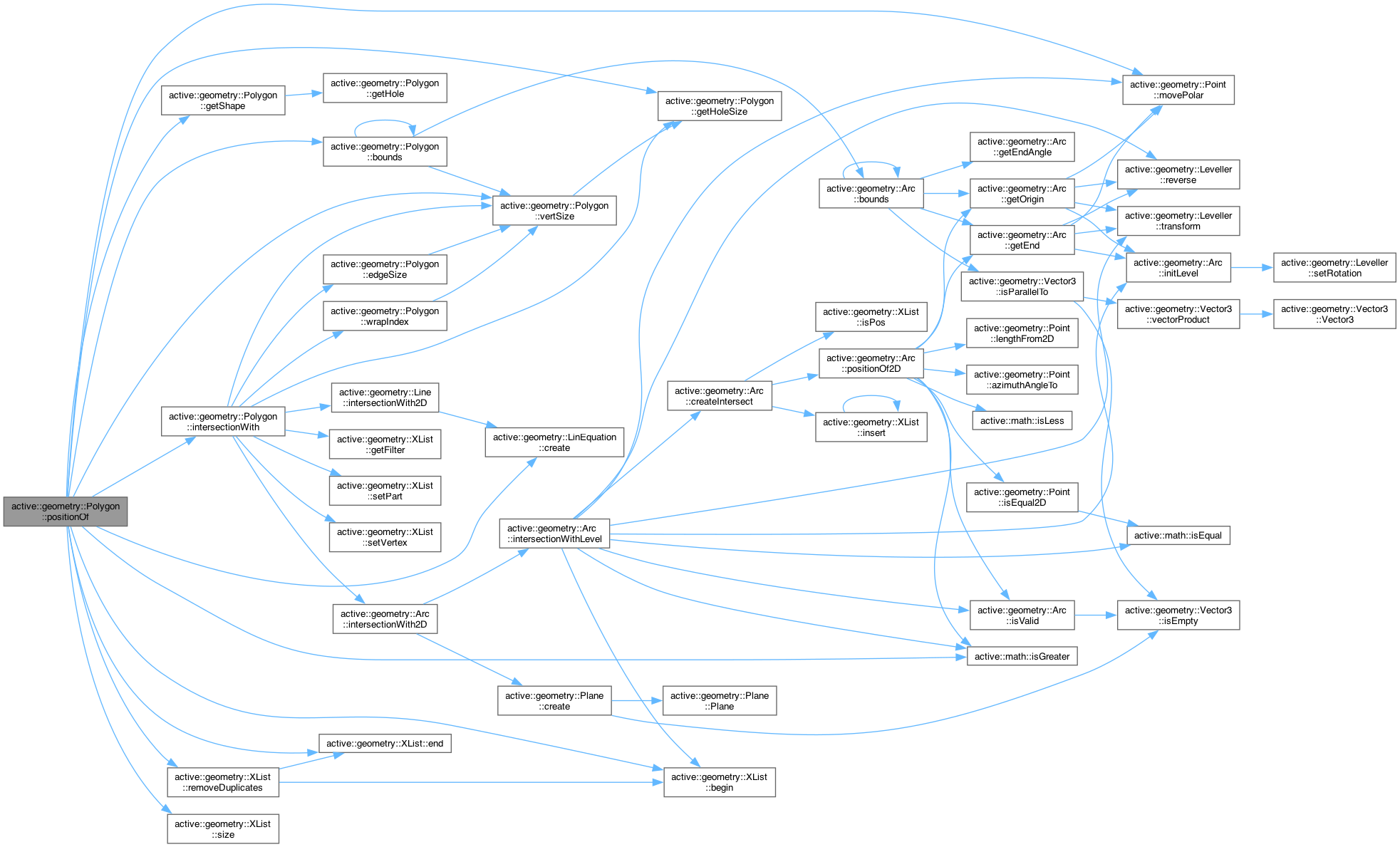

◆ positionOf()

Position Polygon::positionOf	(	const Point &	ref,
		double	prec = math::eps ) const

Get the position of a point relative to the polygon (closure assumed)

Parameters

ref	The reference point
prec	The required precision

Returns: The relative position

Here is the call graph for this function:

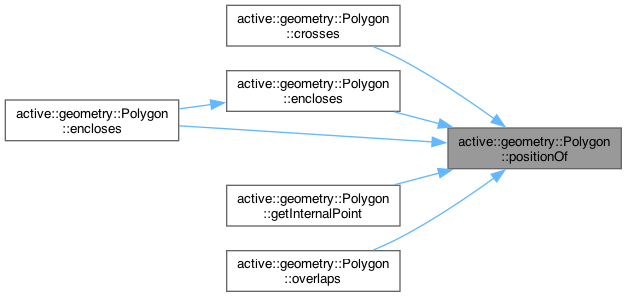

Here is the caller graph for this function:

◆ releaseHole()

Polygon::Unique Polygon::releaseHole ( part_index which )

Release a hole from the polygon

Parameters

which The index of the hole to release

Returns: The released hole polygon

◆ releaseHoles()

PolyVector::Unique Polygon::releaseHoles ( )

Remove the polygon holes and release them to the caller

Returns: The holes in the polygon

◆ removeDuplicates2D()

bool Polygon::removeDuplicates2D ( double prec = math::eps )

Remove duplicate adjoining vertices in 2D

Parameters

prec	The required precision

Returns: True if duplicates were removed

Here is the call graph for this function:

◆ removeDuplicates3D()

bool Polygon::removeDuplicates3D ( double prec = math::eps )

Remove duplicate adjoining vertices in 3D

Parameters

prec	The required precision

Returns: True if duplicates were removed

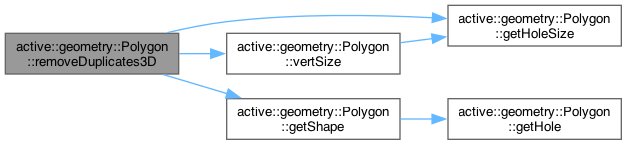

Here is the call graph for this function:

◆ removeHole()

void Polygon::removeHole ( part_index which )

Remove a hole from the polygon

Parameters

which The index of the hole to remove

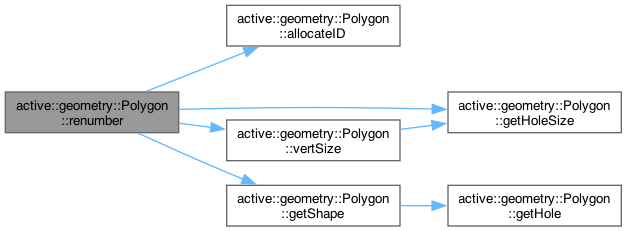

◆ renumber()

void Polygon::renumber ( bool restart = false )

Renumber the polygon vertices

Here is the call graph for this function:

Here is the caller graph for this function:

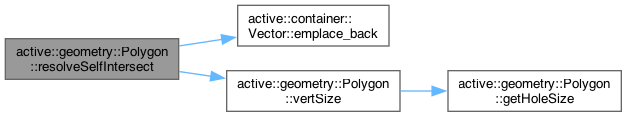

◆ resolveSelfIntersect()

part_index Polygon::resolveSelfIntersect	(	PolyVector &	resolved,
		double	prec = math::eps ) const

Resolve the polygon into a list of polygons with no self-intersection

Parameters

resolved	The list of resolved polygons
prec	The required precision

Returns: The number of resolved polygons created (0 if the polygon is already resolved)

Here is the call graph for this function:

◆ reverse()

void Polygon::reverse ( )

virtual

Reverse the polygon direction (clockwise/anticlockwise)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBaseLevel()

void Polygon::setBaseLevel ( double z = 0 )

Set the level (z coordinate) of all the polygon vertices

Parameters

z	The required level

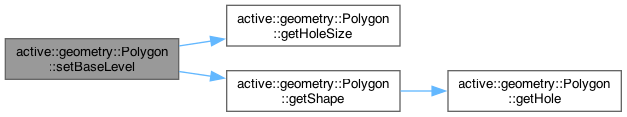

Here is the call graph for this function:

◆ setDirection()

void Polygon::setDirection	(	Rotation	direct = clockwise,
		bool	withHoles = true,
		bool	invertHoleDir = false )

virtual

Redirect the order of the polygon in the specified direction

Parameters

direct	The direction of the polygon
withHoles	True to also set the direction of holes
invertHoleDir	True to set the opposite sense for the holes

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setHoles() [1/2]

void active::geometry::Polygon::setHoles ( PolyVector && hole )

Set the holes in the polygon

Parameters

hole	The list of holes to set in the polygon

◆ setHoles() [2/2]

void active::geometry::Polygon::setHoles ( std::unique_ptr< PolyVector > && holes = nullptr )

Set the holes in the polygon

Parameters

holes The list of holes to set in the polygon (nullptr to erase all)

◆ setTopID()

void active::geometry::Polygon::setTopID ( vertex_id topId )

inline

Set the highest vertex ID

Parameters

topId The highest vertex ID

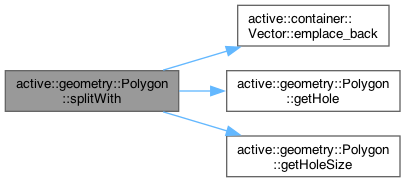

◆ splitWith() [1/2]

void Polygon::splitWith	(	const LinEquation &	ref,
		PolyVector *	polyRight = nullptr,
		PolyVector *	polyLeft = nullptr,
		double	prec = math::eps ) const

Calculate the polygons created by splitting this polygon along a line

Parameters

ref	The cutting line
polyRight	The split polygons to the right of the reference line (nullptr = discard)
polyLeft	The split polygons to the left of the reference line (nullptr = discard)
prec	The required precision

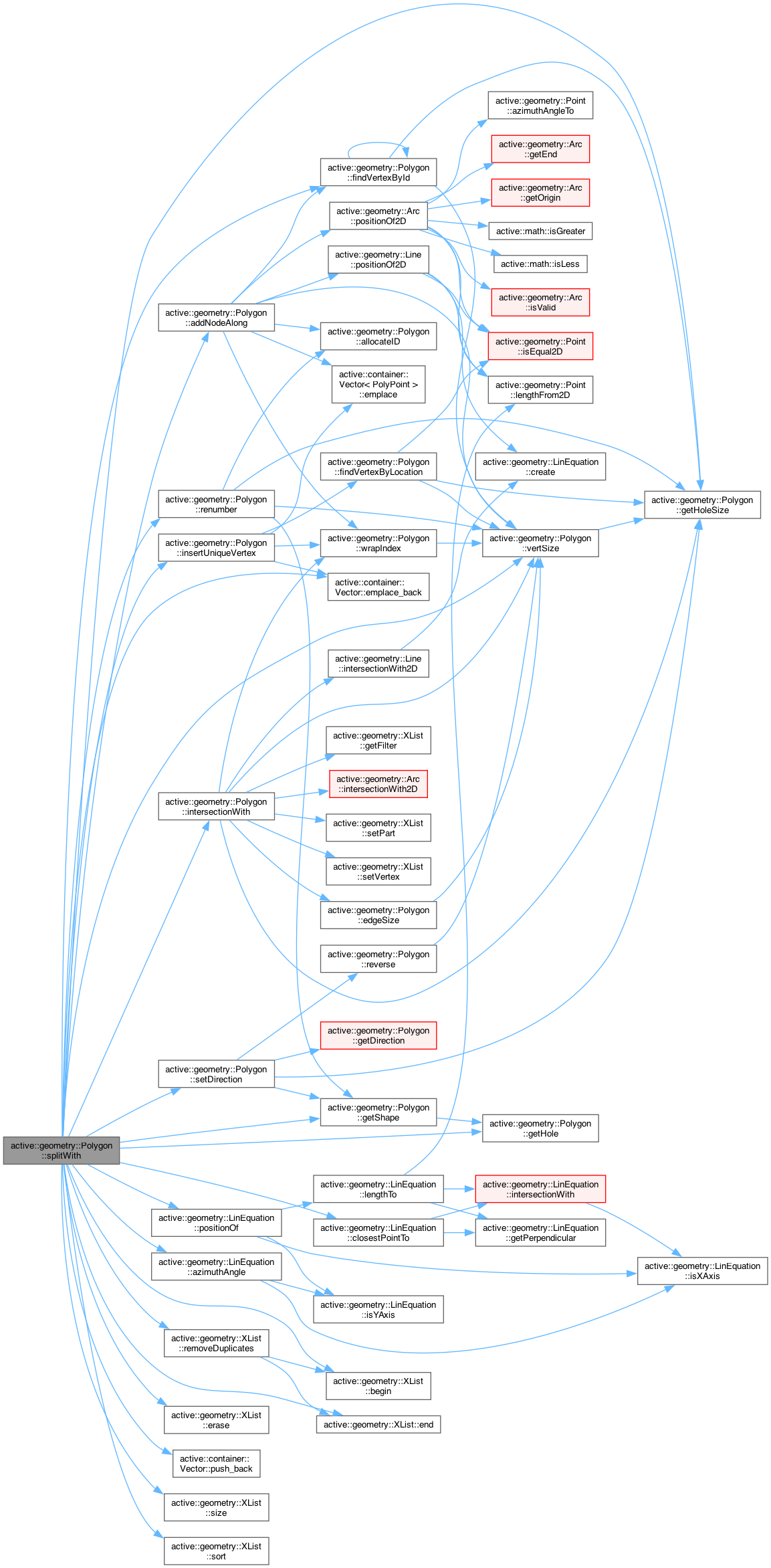

Here is the call graph for this function:

◆ splitWith() [2/2]

void Polygon::splitWith	(	const Polygon &	ref,
		PolyVector *	polyIn = nullptr,
		PolyVector *	polyOut = nullptr,
		double	prec = math::eps ) const

Calculate the polygons created by splitting this polygon with another polygon

Parameters

ref	The cutting polygon
polyIn	The split polygons inside the reference polygon (nullptr = discard)
polyOut	The split polygons outside the reference polygon (nullptr = discard)
prec	The required precision

Here is the call graph for this function:

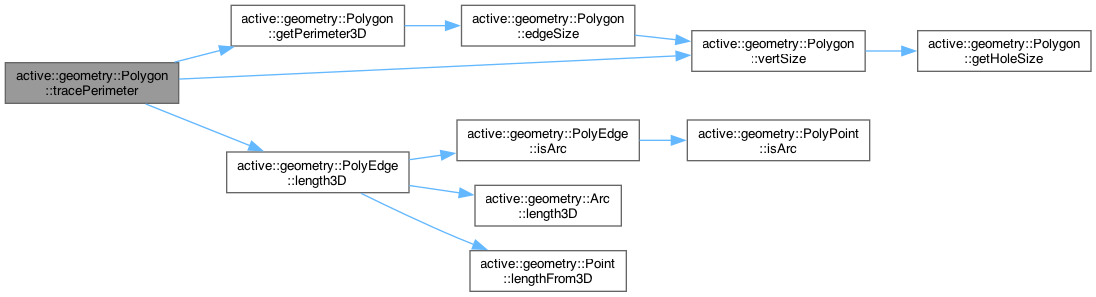

◆ tracePerimeter()

vertex_index Polygon::tracePerimeter	(	double	len,
		PolyPoint &	endPos ) const

Trace the polygon perimeter for the specified length

Parameters

len	The length to length for
endPos	The point reached

Returns: The index of the last vertex passed

Here is the call graph for this function:

◆ vertSize()

vertex_index Polygon::vertSize ( bool isOuter = true ) const

Get the number of vertices in the polygon

Parameters

isOuter True to count the outer polygon vertices only (exclude holes)

Returns: The number of vertices

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wrapIndex()

vertex_index Polygon::wrapIndex ( vertex_index index ) const

Wrap an index into the polygon range

Parameters

index The index

Returns: The wrapped index

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Polygon.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Polygon.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Polygon() [1/5]

◆ Polygon() [2/5]

◆ Polygon() [3/5]

◆ Polygon() [4/5]

◆ Polygon() [5/5]

◆ ~Polygon()

Member Function Documentation

◆ addNodeAlong()

◆ alignTo()

◆ allocateID()

◆ bounds()

◆ clear()

◆ cloneGeometry()

◆ clonePtr()

◆ closestPointAlong2D()

◆ closestPointAlong3D()

◆ crosses()

◆ edgeSize()

◆ emplaceHole() [1/2]

◆ emplaceHole() [2/2]

◆ encloses() [1/2]

◆ encloses() [2/2]

◆ facet()

◆ findVertexById()

◆ findVertexByLocation()

◆ getArea()

◆ getDirection()

◆ getHole()

◆ getHoles()

◆ getHoleSize()

◆ getInternalAngleAt()

◆ getInternalPoint()

◆ getPerimeter2D()

◆ getPerimeter3D()

◆ getShape() [1/2]

◆ getShape() [2/2]

◆ getTopID()

◆ insertHole() [1/2]

◆ insertHole() [2/2]

◆ insertUniqueVertex()

◆ intersectionWith() [1/4]

◆ intersectionWith() [2/4]

◆ intersectionWith() [3/4]

◆ intersectionWith() [4/4]

◆ isEqual2D()

◆ isEqual3D()

◆ isReflection()

◆ isTangentialAt()

◆ isValid()

◆ iteratorAt() [1/2]

◆ iteratorAt() [2/2]

◆ movePtr()

◆ operator*() [1/3]

◆ operator*() [2/3]

◆ operator*() [3/3]

◆ operator*=() [1/3]

◆ operator*=() [2/3]

◆ operator*=() [3/3]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/()

◆ operator/=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ optimise()

◆ overlaps()

◆ positionOf()

◆ releaseHole()

◆ releaseHoles()
