Class to represent a linear equation. More...

#include <LinEquation.h>

Public Types
using	Unique = std::unique_ptr<LinEquation>
	Unique pointer.

using	Shared = std::shared_ptr<LinEquation>
	Shared pointer.

using	Option = std::optional<LinEquation>
	Optional.

Public Member Functions
	LinEquation ()

	LinEquation (double angle, const Point &source=Point())

	LinEquation (const LinEquation &source)

LinEquation &	operator= (const LinEquation &source)

bool	operator== (const LinEquation &ref) const

bool	operator== (const Point &ref) const

bool	operator!= (const LinEquation &ref) const

bool	operator< (const LinEquation &ref) const

bool	isXAxis (double prec=math::eps) const

bool	isYAxis (double prec=math::eps) const

bool	isPerpendicularTo (const LinEquation &ref, double prec=math::eps) const

bool	isParallelTo (const LinEquation &ref, double prec=math::eps) const

double	azimuthAngle () const

Option	getFlipped () const

Option	getPerpendicular (const Point &ref) const

Option	getParallel (const Point &ref) const

double	angleTo (const LinEquation &ref) const

XPoint::Option	intersectionWith (const LinEquation &ref) const

Position	positionOf (const Point &ref, double prec=math::eps) const

bool	xAtY (double y, double &x) const

bool	yAtX (double x, double &y) const

Point	closestPointTo (const Point &ref) const

double	lengthTo (const Point &ref) const

Static Public Member Functions
static Option	create (const Point &source)

static Option	create (const Point &start, const Point &end)

static Option	create (const Line &source)

Detailed Description

Class to represent a linear equation.

Constructor & Destructor Documentation

◆ LinEquation() [1/3]

LinEquation::LinEquation ( )

Constructor

◆ LinEquation() [2/3]

LinEquation::LinEquation	(	double	angle,
		const Point &	source = Point() )

Constructor

Parameters

angle	Angle of the line
source	A point along the line

◆ LinEquation() [3/3]

LinEquation::LinEquation ( const LinEquation & source )

Copy constructor

Parameters

source The object to copy

Member Function Documentation

◆ angleTo()

double LinEquation::angleTo ( const LinEquation & ref ) const

Calculate the angle between two linear equations

Parameters

ref	The reference line

Returns: The angle between the two lines

Here is the call graph for this function:

◆ azimuthAngle()

double LinEquation::azimuthAngle ( ) const

Calculate the angle of this equation

Returns: The equation's angle (0 to 2*pi)

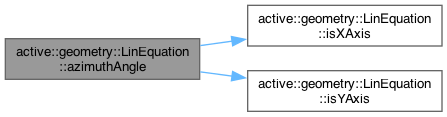

Here is the call graph for this function:

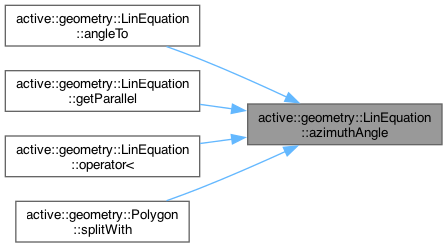

Here is the caller graph for this function:

◆ closestPointTo()

Point LinEquation::closestPointTo ( const Point & ref ) const

Calculate the closest point along this to a another specified point

Parameters

ref	The reference point

Returns: The closest point

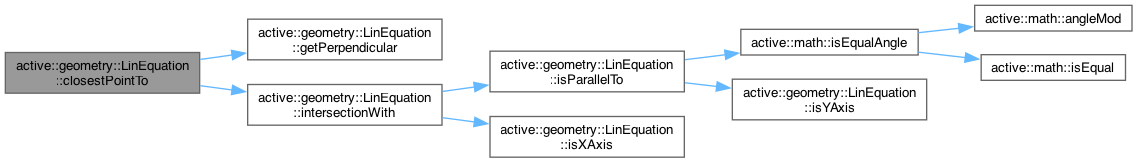

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create() [1/3]

LinEquation::Option LinEquation::create ( const Line & source )

static

Create a new linear equation from a line

Parameters

source A line

Returns: A linear equation (nullopt if input is invalid)

◆ create() [2/3]

LinEquation::Option LinEquation::create ( const Point & source )

static

Create a new linear equation from a point (origin assumed to be 0,0,0)

Parameters

source The end of the line

Returns: A linear equation (nullopt if input is invalid)

Here is the caller graph for this function:

◆ create() [3/3]

LinEquation::Option LinEquation::create	(	const Point &	start,
		const Point &	end )

static

Create a new linear equation from two points in a line

Parameters

start	The start of the line
end	The end of the line

Returns: A linear equation (nullopt if input is invalid)

◆ getFlipped()

LinEquation::Option LinEquation::getFlipped ( ) const

Create a linear equation opposite to this

Returns: An unique_ptr to the opposite equation

◆ getParallel()

LinEquation::Option LinEquation::getParallel ( const Point & ref ) const

Create a linear equation parallel to this which passes through the specified point

Parameters

ref	The point through which the new equation must pass

Returns: An unique_ptr to the parallel equation

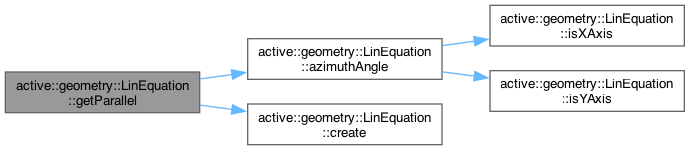

Here is the call graph for this function:

◆ getPerpendicular()

LinEquation::Option LinEquation::getPerpendicular ( const Point & ref ) const

Create a linear equation perpendicular to this which passes through the specified point

Parameters

ref	The point through which the new equation must pass

Returns: An unique_ptr to the perpendicular equation

Here is the caller graph for this function:

◆ intersectionWith()

XPoint::Option LinEquation::intersectionWith ( const LinEquation & ref ) const

Calculate the intersection point of two equations

Parameters

ref	The intersecting line

Returns: An unique_ptr for the intersection point (or 0 if parallel)

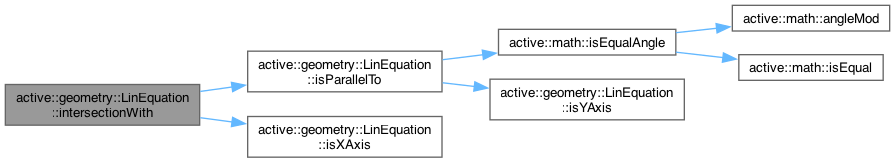

Here is the call graph for this function:

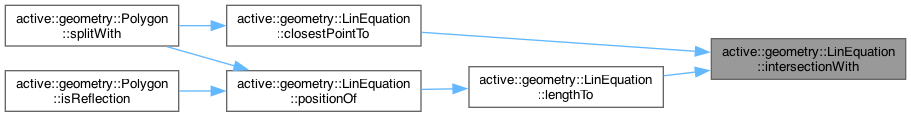

Here is the caller graph for this function:

◆ isParallelTo()

bool LinEquation::isParallelTo	(	const LinEquation &	ref,
		double	prec = math::eps ) const

Test two equations to determine if they are parallel

Parameters

ref	The reference line
prec	The required precision

Returns: True if the equations are parallel

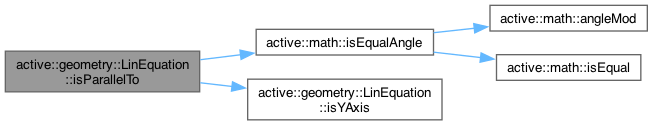

Here is the call graph for this function:

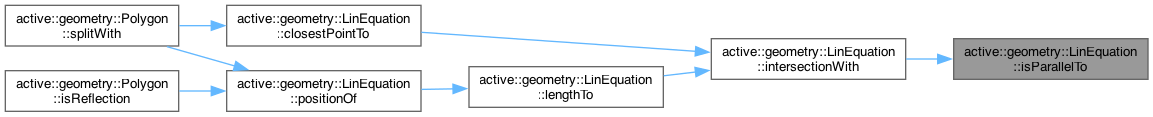

Here is the caller graph for this function:

◆ isPerpendicularTo()

bool LinEquation::isPerpendicularTo	(	const LinEquation &	ref,
		double	prec = math::eps ) const

Test two equations to determine if they are perpendicular

Parameters

ref	The reference line
prec	The required precision

Returns: True if the equations are perpendicular

Here is the call graph for this function:

◆ isXAxis()

bool active::geometry::LinEquation::isXAxis ( double prec = math::eps ) const

inline

Test if the equation is parallel to the x axis

Parameters

prec	The required precision

Returns: True the equation is parallel to the x axis

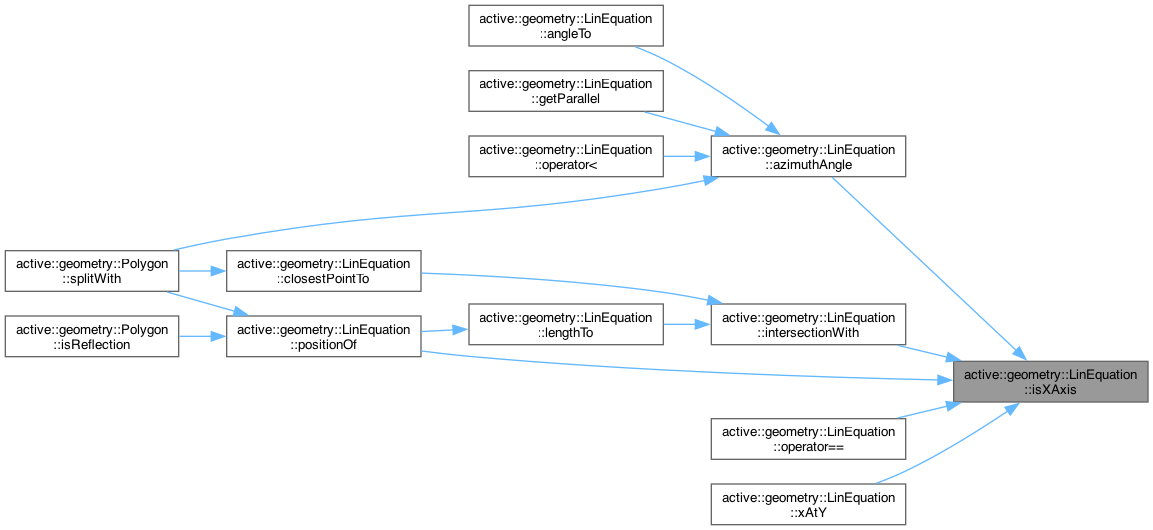

Here is the caller graph for this function:

◆ isYAxis()

bool active::geometry::LinEquation::isYAxis ( double prec = math::eps ) const

inline

Test if the equation is parallel to the y axis

Parameters

prec	The required precision

Returns: True the equation is parallel to the y axis

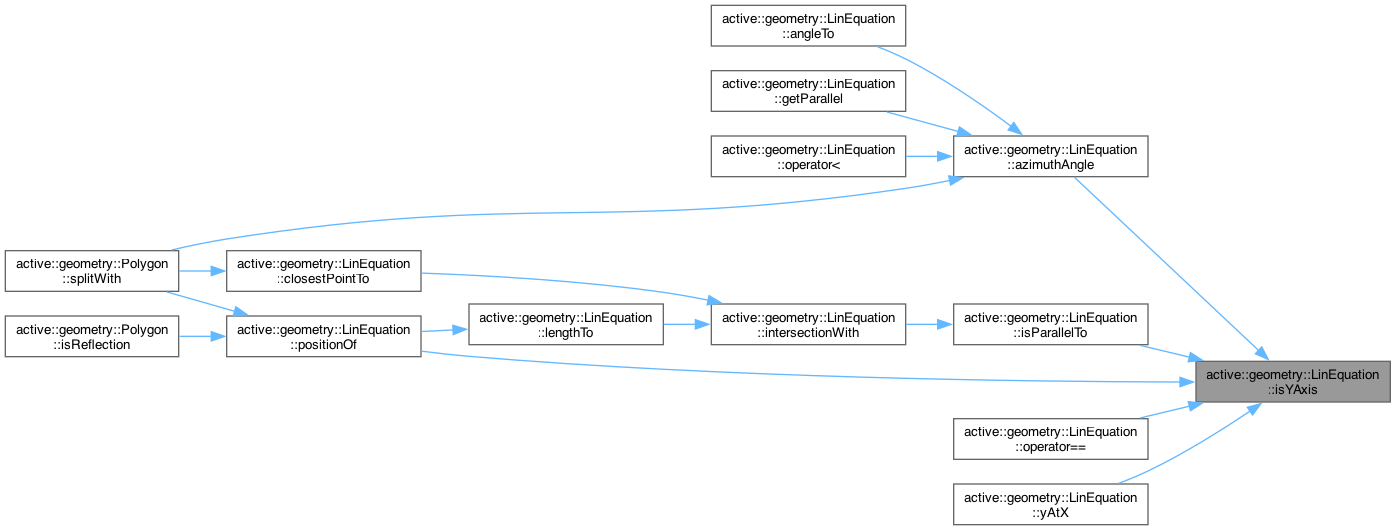

Here is the caller graph for this function:

◆ lengthTo()

double LinEquation::lengthTo ( const Point & ref ) const

Calculate the minimum distance from a point to this

Parameters

ref	The reference point

Returns: The minimum distance

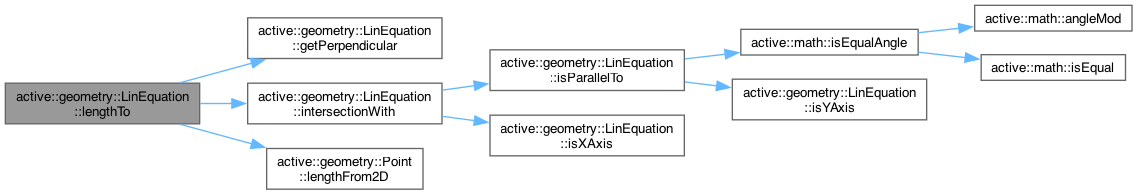

Here is the call graph for this function:

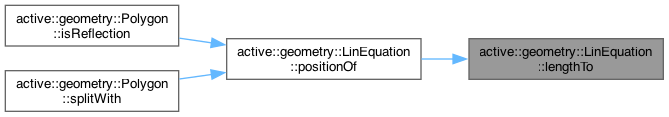

Here is the caller graph for this function:

◆ operator!=()

bool active::geometry::LinEquation::operator!= ( const LinEquation & ref ) const

inline

Inequality operator

Parameters

ref	The object to compare

Returns: True if ref is not identical to this

◆ operator<()

bool LinEquation::operator< ( const LinEquation & ref ) const

Less-than operator

Parameters

ref	The object to compare

Returns: True if the angle of this equation is less than ref

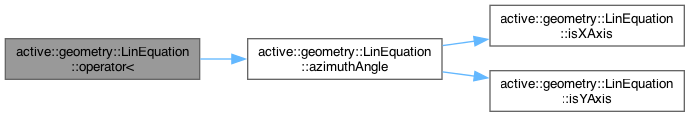

Here is the call graph for this function:

◆ operator=()

LinEquation & LinEquation::operator= ( const LinEquation & source )

Assignment operator

Parameters

source The object to copy

Returns: A reference to this

◆ operator==() [1/2]

bool LinEquation::operator== ( const LinEquation & ref ) const

Equality operator

Parameters

ref	The object to compare

Returns: True if ref is identical to this

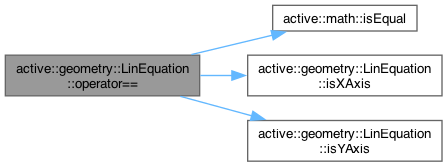

Here is the call graph for this function:

◆ operator==() [2/2]

bool LinEquation::operator== ( const Point & ref ) const

Test to determine if a point lies within this equation

Parameters

ref	A point to test

Returns: True if the point lies along the line

Here is the call graph for this function:

◆ positionOf()

Position LinEquation::positionOf	(	const Point &	ref,
		double	prec = math::eps ) const

Determine the relationship of a point to the equation

Parameters

ref	The point to test
prec	The required precision

Returns: The relative position of the point (along, left, right)

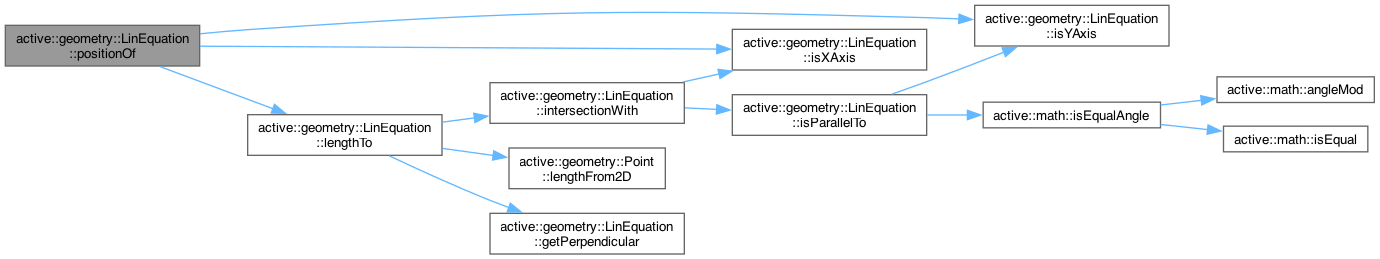

Here is the call graph for this function:

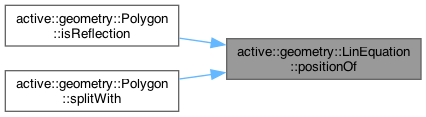

Here is the caller graph for this function:

◆ xAtY()

bool LinEquation::xAtY	(	double	y,
		double &	x ) const

Calculate the x coordinate at the specifed y coordinate

Parameters

y	The y coordinate
x	The x coordinate (n/a if the equation is parallel to the x axis)

Returns: False if the equation is parallel to the x axis

Here is the call graph for this function:

◆ yAtX()

bool LinEquation::yAtX	(	double	x,
		double &	y ) const

Calculate the y coordinate at the specifed x coordinate

Parameters

x	The x coordinate
y	The y coordinate (n/a if the equation is parallel to the y axis)

Returns: False if the equation is parallel to the y axis

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/LinEquation.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/LinEquation.cpp
