#include <PolyPoint.h>

Inheritance diagram for active::geometry::PolyPoint:

[legend]

Collaboration diagram for active::geometry::PolyPoint:

[legend]

Public Types
using	Unique = std::unique_ptr<PolyPoint>
	Unique pointer.

using	Shared = std::shared_ptr<PolyPoint>
	Shared pointer.

using	Option = std::optional<PolyPoint>
	Optional.

Public Types inherited from active::geometry::Point
using	Unique = std::unique_ptr<Point>
	Unique pointer.

using	Shared = std::shared_ptr<Point>
	Shared pointer.

using	Option = std::optional<Point>
	Optional.

Public Member Functions
	PolyPoint ()

	PolyPoint (const double &x, const double &y, const double &z=0.0, double angle=0.0, vertex_id id=0)

	PolyPoint (const Point &source, double angle=0.0, vertex_id id=0)

	PolyPoint (const PolyPoint &source)

virtual	~PolyPoint ()=default

virtual PolyPoint *	clonePtr () const override

PolyPoint &	operator= (const PolyPoint &source)

PolyPoint &	operator= (const Point &source)

bool	isArc (double prec=math::eps) const

virtual double	lengthFrom2D (const Point &ref) const override

void	setSweep (const Line &ref)

void	setSweepParallel (const Line &ref)

Public Member Functions inherited from active::geometry::Point
	Point ()

	Point (const double &x, const double &y, const double &z=0.0)

	Point (const Point &source2D, double z)

virtual	~Point ()=default

virtual bool	operator== (const Point &ref) const

virtual bool	operator!= (const Point &ref) const

virtual bool	operator< (const Point &ref) const

Point &	operator= (const Point &source)

virtual Point	operator+ (const Point &offset) const

virtual Point &	operator+= (const Point &offset)

virtual Point	operator- (const Point &offset) const

virtual Point &	operator-= (const Point &offset)

virtual Point	operator* (const double &mult) const

virtual Point	operator* (const Matrix3x3 &matrix) const

virtual Point	operator* (const Matrix4x4 &matrix) const

virtual Point &	operator*= (const double &mult)

virtual Point &	operator*= (const Matrix3x3 &matrix)

virtual Point &	operator*= (const Matrix4x4 &matrix)

virtual Point	operator/ (const double &mult) const

virtual Point &	operator/= (const double &mult)

virtual bool	isEqual2D (const Point &ref, double prec=math::eps) const

virtual bool	isEqual3D (const Point &ref, double prec=math::eps) const

virtual double	lengthFrom3D (const Point &ref) const

Point	rounded2D (double prec=math::eps) const

Point	rounded3D (double prec=math::eps) const

double	azimuthAngleTo (const Point &ref) const

double	altitudeAngleTo (const Point &ref) const

Point &	movePolar (double len, double angle)

Point &	movePolar (double len, double azim, double alt)

Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Public Attributes
double	sweep = 0.0
	The sweep angle of an edge leading to this point (0.0 = atraight line)

vertex_id	id = 0
	An optional unique ID for the vertex, e.g. for maintaining links to a specific vertex within a polygon.

Public Attributes inherited from active::geometry::Point
double	x
	X coordinate.

double	y
	Y coordinate.

double	z
	Z coordinate.

Detailed Description

Overrides the Point class to support curved edges, primarily for Polygon vertices

PolyPoint defines the sweep angle for an edge leading to this point (0.0 = straight edge). It also includes an ID, a number that can be used to uniquely identify a specific vertex within a polygon. This ID can ensure that operations modifying the order of vertices does not affect associations between vertices and other data.

Constructor & Destructor Documentation

◆ PolyPoint() [1/4]

active::geometry::PolyPoint::PolyPoint ( )

inline

Default constructor

Here is the caller graph for this function:

◆ PolyPoint() [2/4]

active::geometry::PolyPoint::PolyPoint	(	const double &	x,
		const double &	y,
		const double &	z = 0.0,
		double	angle = 0.0,
		vertex_id	id = 0 )

inline

Constructor

Parameters

x	X coordinate
y	Y coordinate
z	Z coordinate
angle	The sweep angle to this position (0 = straight line)
id	The point ID

◆ PolyPoint() [3/4]

PolyPoint::PolyPoint	(	const Point &	source,
		double	angle = 0.0,
		vertex_id	id = 0 )

Constructor

Parameters

source	The point position
angle	The sweep angle to this position (0 = straight line)
id	The point ID

◆ PolyPoint() [4/4]

PolyPoint::PolyPoint ( const PolyPoint & source )

Copy constructor

Parameters

source The object to copy

◆ ~PolyPoint()

virtual active::geometry::PolyPoint::~PolyPoint ( )

virtualdefault

Destructor

Member Function Documentation

◆ clonePtr()

virtual PolyPoint * active::geometry::PolyPoint::clonePtr ( ) const

inlineoverridevirtual

Clone method

Returns: A clone of this object

Reimplemented from active::geometry::Point.

Here is the call graph for this function:

◆ isArc()

bool active::geometry::PolyPoint::isArc ( double prec = math::eps ) const

inline

Determine if the vertex describes an arc

Returns: True if an arc is described

Here is the caller graph for this function:

◆ lengthFrom2D()

double PolyPoint::lengthFrom2D ( const Point & ref ) const

overridevirtual

Calculates the distant from a specified point to this in 2D

Parameters

ref	A point to calculate the distance from

Returns: The distance from the point to this

Reimplemented from active::geometry::Point.

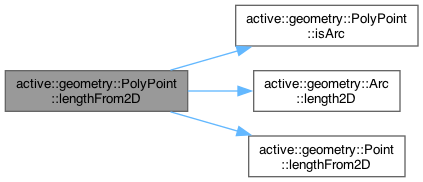

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/2]

PolyPoint & active::geometry::PolyPoint::operator= ( const Point & source )

inline

Assignment operator

Parameters

source The point to assign

Returns: A reference to this

Here is the call graph for this function:

◆ operator=() [2/2]

PolyPoint & PolyPoint::operator= ( const PolyPoint & source )

Assignment operator

Parameters

source The point to assign

Returns: A reference to this

Here is the call graph for this function:

◆ setSweep()

void PolyPoint::setSweep ( const Line & ref )

Set the sweep angle to this point from the specified line

Parameters

ref	The reference line (centre to sweep start)

Here is the call graph for this function:

◆ setSweepParallel()

void PolyPoint::setSweepParallel ( const Line & ref )

Set the sweep angle for an arc starting parallel to a line

Parameters

ref	The reference line

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/PolyPoint.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/PolyPoint.cpp
