active::geometry::Line Class Reference

Class to represent a line. More...

#include <Line.h>

Collaboration diagram for active::geometry::Line:

Public Types
using	Unique = std::unique_ptr<Line>
	Unique pointer.
using	Shared = std::shared_ptr<Line>
	Shared pointer.
using	Option = std::optional<Line>
	Optional.

Public Member Functions
	Line (const Point &origin, const Point &end)
	Line (const Point &origin, double rad, double azim)
bool	operator== (const Line &ref) const
bool	operator!= (const Line &ref) const
Line	operator+ (const Point &offset) const
Line &	operator+= (const Point &offset)
Line	operator- (const Point &offset) const
Line &	operator-= (const Point &offset)
Line	operator* (double scale) const
Line &	operator*= (double scale)
Line	operator* (const Matrix3x3 &matrix) const
Line &	operator*= (const Matrix3x3 &matrix)
bool	isEqual2D (const Line &ref, double prec=math::eps) const
bool	isEqual3D (const Line &ref, double prec=math::eps) const
double	length2D () const
double	length3D () const
double	azimuthAngle () const
double	altitudeAngle () const
double	angleTo (const Line &ref) const
Point	midpoint () const
double	heightAt (const Point &ref) const
bool	isColinearTo2D (const Line &ref, double prec=math::eps) const
bool	isColinearTo3D (const Line &ref, double prec=math::eps) const
bool	isParallelTo2D (const Line &ref, double prec=math::eps) const
bool	isParallelTo3D (const Line &ref, double prec=math::eps) const
Point	closestPointTo2D (const Point &ref, double prec=math::eps) const
Point	closestPointTo3D (const Point &ref, double prec=math::eps) const
Point	closestPointAlong2D (const Point &ref, double prec=math::eps) const
Point	closestPointAlong3D (const Point &ref, double prec=math::eps) const
XPoint::Option	intersectionWith2D (const Line &ref, double prec=math::eps) const
vertex_index	intersectionWith2D (const Line &ref, XList &inter, double prec=math::eps) const
vertex_index	intersectionWith3D (const Line &ref, XList &inter, double prec=math::eps) const
Position	positionOf2D (const Point &ref, double prec=math::eps) const
Position	positionOf3D (const Point &ref, double prec=math::eps) const
bool	encloses2D (const Point &ref, double prec) const
bool	encloses3D (const Point &ref, double prec) const
double	angleTo2D (const Line &ref) const
void	extend (double len)
void	movePolar (double len, double azim, double alt)
void	movePolar (double len, double angle)
void	flip ()

Public Attributes
Point	origin
	The line origin.
Point	end
	The line end.

Detailed Description

Class to represent a line.

Constructor & Destructor Documentation

Line() [1/2]

active::geometry::Line::Line ( const Point & origin, const Point & end )

inline

Constructor

Parameters

origin	Origin point of the line
end	End point of the line

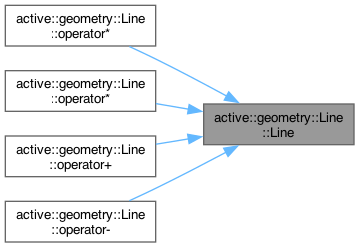

Here is the caller graph for this function:

Line() [2/2]

active::geometry::Line::Line ( const Point & origin, double rad, double azim )

inline

Constructor

Parameters

origin	Origin point of the line
rad	The radial offset to the end of the line
azim	The azimuth angle of the line

Here is the call graph for this function:

Member Function Documentation

altitudeAngle()

double Line::altitudeAngle

(

)

const

Get the altitude angle of the line

Returns

The altitude angle

Here is the call graph for this function:

Here is the caller graph for this function:

angleTo()

double Line::angleTo

(

const Line &

ref

)

const

Get the angle between two lines

Parameters

ref	The reference line

Returns

The angle between the lines

Here is the call graph for this function:

Here is the caller graph for this function:

angleTo2D()

double Line::angleTo2D

(

const Line &

ref

)

const

Get the angle between two lines

Parameters

ref	The reference line

Returns

The angle between the lines

Here is the call graph for this function:

azimuthAngle()

double Line::azimuthAngle

(

)

const

Get the azimuth angle of the line

Returns

The azimuth angle

Here is the call graph for this function:

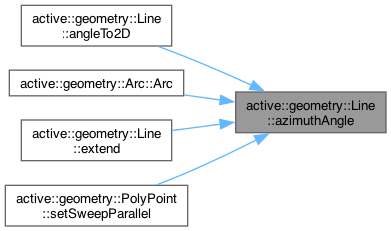

Here is the caller graph for this function:

closestPointAlong2D()

Point Line::closestPointAlong2D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point along the line to a given point in 2D

Parameters

ref	The reference point

Returns

The closest point along the line to the reference point

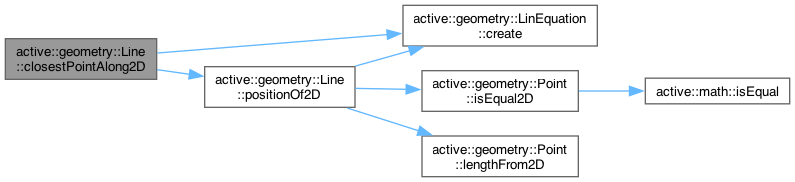

Here is the call graph for this function:

Here is the caller graph for this function:

closestPointAlong3D()

Point Line::closestPointAlong3D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point along the line to a given point

Parameters

ref	The reference point

Returns

The closest point along the line to the reference point

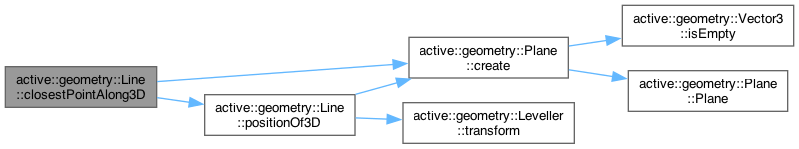

Here is the call graph for this function:

Here is the caller graph for this function:

closestPointTo2D()

Point Line::closestPointTo2D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point in the line to a given point in 2D

Parameters

ref	The reference point

Returns

The closest point in the line to the reference point

Here is the call graph for this function:

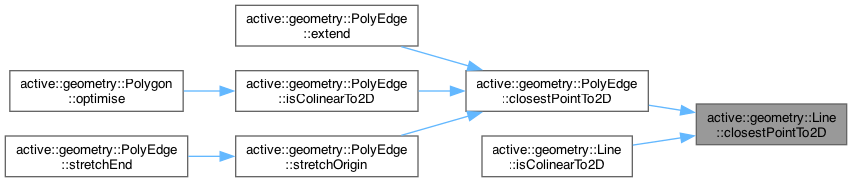

Here is the caller graph for this function:

closestPointTo3D()

Point Line::closestPointTo3D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point in the line to a given point

Parameters

ref	The reference point

Returns

The closest point in the line to the reference point

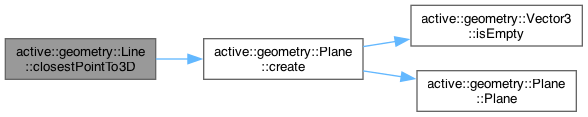

Here is the call graph for this function:

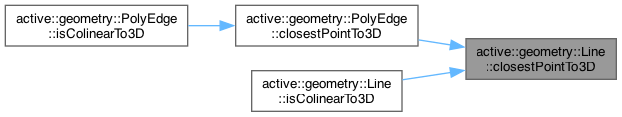

Here is the caller graph for this function:

encloses2D()

bool Line::encloses2D	(	const Point &	ref,
		double	prec ) const

Determine if a point is enclosed by a line in 2D

Parameters

ref	The reference point

Returns

True if the lineline encloses the point

Here is the call graph for this function:

encloses3D()

bool Line::encloses3D	(	const Point &	ref,
		double	prec ) const

Determine if a point is enclosed by a line

Parameters

ref	The reference point

Returns

True if the lineline encloses the point

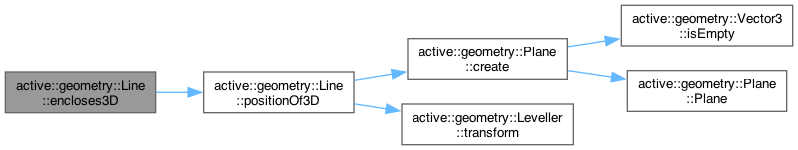

Here is the call graph for this function:

extend()

void Line::extend

(

double

len

)

Extend the line length by the specified amount

Parameters

len	The amount to extend the line by

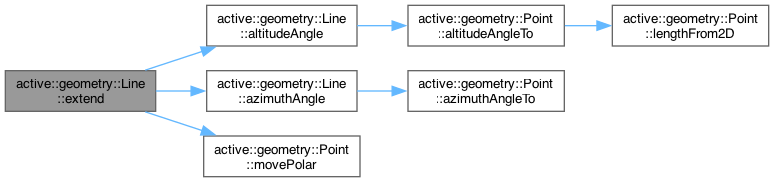

Here is the call graph for this function:

flip()

void Line::flip

(

)

Flip the line

heightAt()

double Line::heightAt

(

const Point &

ref

)

const

Get the height of the line at a specified point

Parameters

ref	The point at which to calculate the height

Returns

The height at the specified point

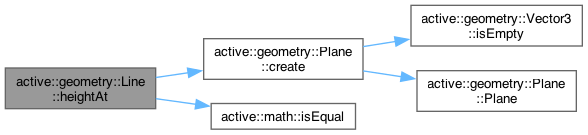

Here is the call graph for this function:

intersectionWith2D() [1/2]

XPoint::Option Line::intersectionWith2D	(	const Line &	ref,
		double	prec = math::eps ) const

Get the intersection point of two lines in 2D (NB: either along or projected beyond the line extents)

Parameters

ref	The reference line
prec	The required precision

Returns

The intersection point (nullopt if no intersection is possible)

Here is the call graph for this function:

Here is the caller graph for this function:

intersectionWith2D() [2/2]

vertex_index Line::intersectionWith2D	(	const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of two lines in 2D

Parameters

ref	The reference line
inter	The intersection list to populate
prec	The required precision

Returns

The number of intersections calculated

Here is the call graph for this function:

intersectionWith3D()

vertex_index Line::intersectionWith3D	(	const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of two lines in 3D ref: The reference line inter: The intersection list to populate prec: The required precision return: The number of intersections calculated

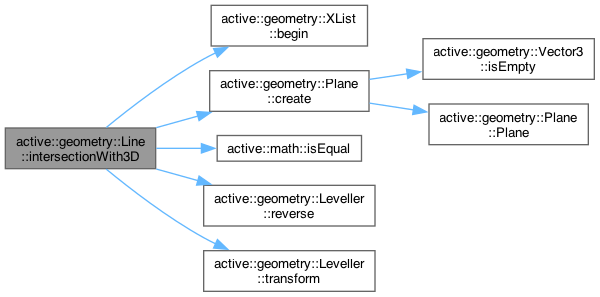

Here is the call graph for this function:

Here is the caller graph for this function:

isColinearTo2D()

bool Line::isColinearTo2D	(	const Line &	ref,
		double	prec = math::eps ) const

Check if two lines are colinear

Parameters

ref	The reference line

Returns

True if the lines are colinear

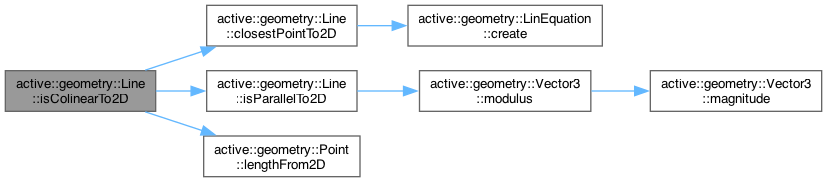

Here is the call graph for this function:

isColinearTo3D()

bool Line::isColinearTo3D	(	const Line &	ref,
		double	prec = math::eps ) const

Check if two lines are colinear

Parameters

ref	The reference line

Returns

True if the lines are colinear

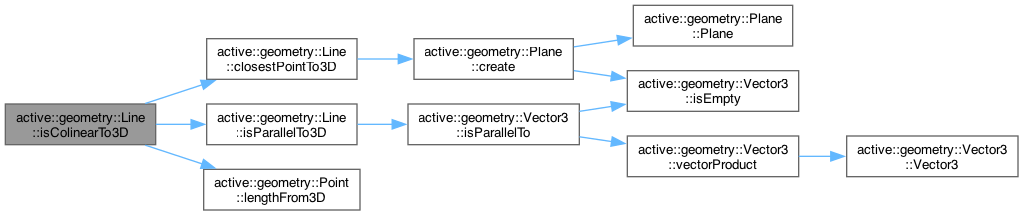

Here is the call graph for this function:

isEqual2D()

bool Line::isEqual2D	(	const Line &	ref,
		double	prec = math::eps ) const

Determine if two lines are equal in 2D

Parameters

ref	The line to compare with this
prec	The required precision

Returns

True if the lines are identical

Here is the call graph for this function:

isEqual3D()

bool Line::isEqual3D	(	const Line &	ref,
		double	prec = math::eps ) const

Determine if two lines are equal

Parameters

ref	The line to compare with this
prec	The required precision

Returns

True if the lines are identical

Here is the call graph for this function:

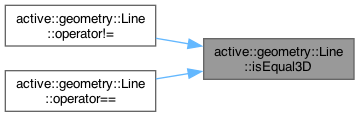

Here is the caller graph for this function:

isParallelTo2D()

bool Line::isParallelTo2D	(	const Line &	ref,
		double	prec = math::eps ) const

Check if two lines are parallel

Parameters

ref	The reference line

Returns

True if they are parallel

Here is the call graph for this function:

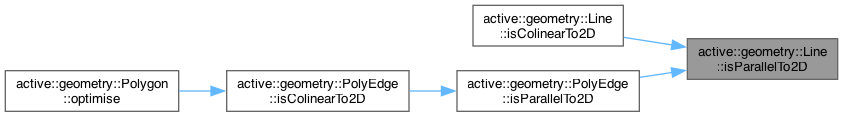

Here is the caller graph for this function:

isParallelTo3D()

bool Line::isParallelTo3D	(	const Line &	ref,
		double	prec = math::eps ) const

Check if two lines are parallel

Parameters

ref	The reference line

Returns

True if the lines are parallel

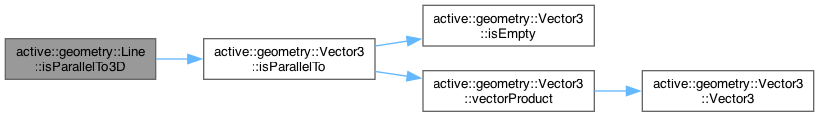

Here is the call graph for this function:

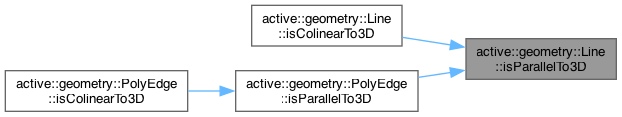

Here is the caller graph for this function:

length2D()

double Line::length2D

(

)

const

Get the length of the line in 2D

Returns

The 2D line length

Here is the call graph for this function:

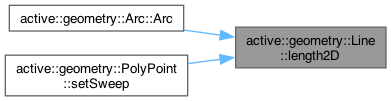

Here is the caller graph for this function:

length3D()

double Line::length3D

(

)

const

Get the length of the line

Returns

The length of the line

Here is the call graph for this function:

midpoint()

Point Line::midpoint

(

)

const

Get the midpoint of the line

Returns

The midpoint of the line

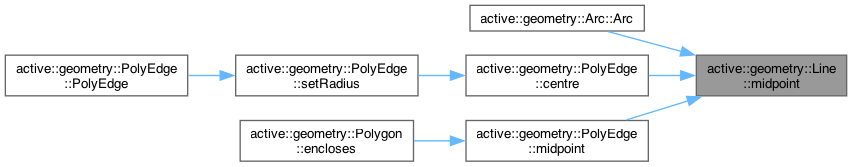

Here is the caller graph for this function:

movePolar() [1/2]

void Line::movePolar	(	double	len,
		double	angle )

Move the line by the specified distance and angle

Parameters

len	The distance to move the line
angle	The angle to move the line along

Here is the call graph for this function:

movePolar() [2/2]

void Line::movePolar	(	double	len,
		double	azim,
		double	alt )

Move the line by the specified distance and azimuth/altitude angles

Parameters

len	The distance to move the line
azim	The azimuth angle to move the line along
alt	The altitude angle to move the line along

Here is the call graph for this function:

operator!=()

bool active::geometry::Line::operator!= ( const Line & ref ) const

inline

Inequality operator

Parameters

ref	The line to compare with this

Returns

True if the lines are different

Here is the call graph for this function:

operator*() [1/2]

Line Line::operator*

(

const Matrix3x3 &

matrix

)

const

Multiplication operator

Parameters

matrix

The matrix to multiply the line by

Returns

A multiplied line

Here is the call graph for this function:

operator*() [2/2]

Line Line::operator*

(

double

scale

)

const

Multiplication operator

Parameters

scale

The amount to multiply the line by

Returns

A multiplied line

Here is the call graph for this function:

operator*=() [1/2]

Line & Line::operator*=

(

const Matrix3x3 &

matrix

)

Multiplication with assignment operator

Parameters

matrix

The matrix to multiply the line by

Returns

A reference to this

operator*=() [2/2]

Line & Line::operator*=

(

double

scale

)

Multiplication with assignment operator

Parameters

scale

The amount to multiply the line by

Returns

A reference to this

operator+()

Line Line::operator+

(

const Point &

offset

)

const

Addition operator

Parameters

offset

The amount to add to the line

Returns

An offset line

Here is the call graph for this function:

operator+=()

Line & Line::operator+=

(

const Point &

offset

)

Addition with assignment operator

Parameters

offset

The amount to add to the line

Returns

A reference to this

operator-()

Line Line::operator-

(

const Point &

offset

)

const

Subtraction operator

Parameters

offset

The amount to subtract from the line

Returns

An offset line

Here is the call graph for this function:

operator-=()

Line & Line::operator-=

(

const Point &

offset

)

Subtraction with assignment operator

Parameters

offset

The amount to subtract from the line

Returns

A reference to this

operator==()

bool active::geometry::Line::operator== ( const Line & ref ) const

inline

Equality operator

Parameters

ref	The line to compare with this

Returns

True if the lines are identical

Here is the call graph for this function:

positionOf2D()

Position Line::positionOf2D	(	const Point &	ref,
		double	prec = math::eps ) const

Determine the relationship of a point to the line in 2D

Parameters

ref	The point to test
prec	The required precision

Returns

The relative position of the point

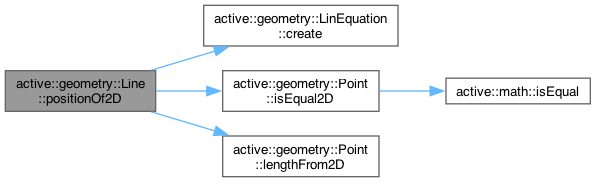

Here is the call graph for this function:

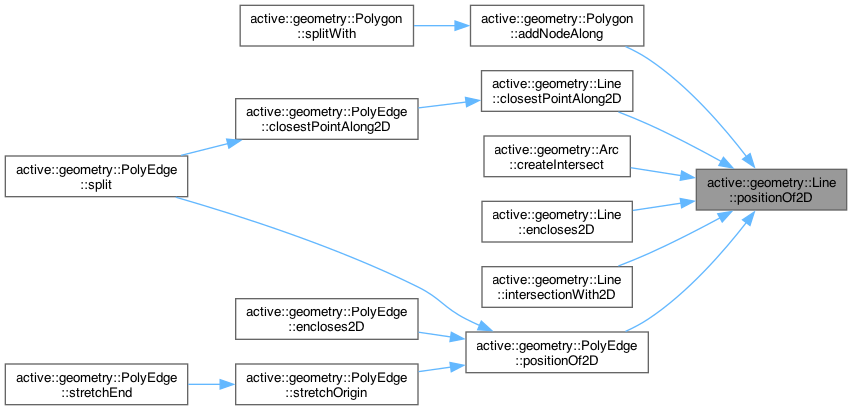

Here is the caller graph for this function:

positionOf3D()

Position Line::positionOf3D	(	const Point &	ref,
		double	prec = math::eps ) const

Determine the relationship of a point to the line in 3D

Parameters

ref	The point to test
prec	The required precision

Returns

The relative position of the point

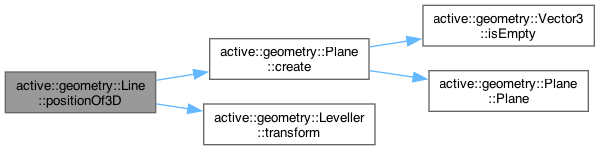

Here is the call graph for this function:

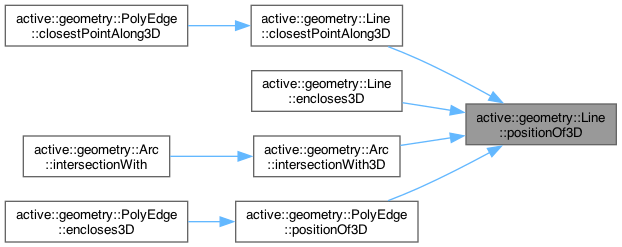

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Line.h
• /Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Line.cpp
