#include <XList.h>

Public Types
typedef container::List< XPoint >	base
	The list container type.

typedef base::iterator	iterator
	The list iterator type.

typedef base::const_iterator	const_iterator
	The list const_iterator type.

typedef base::size_type	size_type
	The list size type.

Public Member Functions
	XList (const XInfo &targetFilter=XInfo(), const XInfo &bladeFilter=XInfo())

const_iterator	begin () const

const_iterator	end () const

const XPoint *	front () const

const XPoint *	back () const

size_type	size () const

bool	empty () const

const XInfo &	getFilter (XPoint::Role role) const

bool	withPos (XPoint::Role role, Position pos) const

bool	isPos (XPoint::Role role) const

void	setFilter (XPoint::Role role, const XInfo &filter)

iterator	begin ()

iterator	end ()

XPoint *	front ()

XPoint *	back ()

bool	insert (XPoint &&pt)

bool	insert (XPoint::Unique &&pt)

iterator	erase (iterator iter)

auto	release (iterator &iter)

void	clear ()

void	removeDuplicates (double prec=math::eps)

template<class Compare >
void	sort (Compare comp)

void	reverse ()

void	addPos (XPoint::Role role, Position pos)

void	setVertex (XPoint::Role role, vertOption vertexIndex)

void	setPart (XPoint::Role role, partOption partIndex)

void	swapFilters ()

Detailed Description

Class to represent a list of intersection points

NB: The word "intersection" is generally abbreviated to "X" in class names, e.g. XPoint, XInfo etc. Refer to the documentation for XInfo and Xpoint for a better understanding of the terminology and management of intersections, e.g. blade and target (defined in XPoint).

Constructor & Destructor Documentation

◆ XList()

XList::XList	(	const XInfo &	targetFilter = XInfo(),
		const XInfo &	bladeFilter = XInfo() )

Constructor

Parameters

targetFilter	A filter for intersections with the target
bladeFilter	A filter for intersections with the blade

Member Function Documentation

◆ addPos()

void XList::addPos	(	XPoint::Role	role,
		Position	pos )

Add an intersection type to the target filter

Parameters

role	The component role
pos	The relative position of the point with respect to the component

◆ back() [1/2]

XPoint * active::geometry::XList::back ( )

inline

Get the back intersection in the list

Returns: The back intersection

◆ back() [2/2]

const XPoint * active::geometry::XList::back ( ) const

inline

Get the back intersection in the list

Returns: The back intersection

◆ begin() [1/2]

iterator active::geometry::XList::begin ( )

inline

Get an iterator at the first intersection

Returns: An iterator at the first intersection

◆ begin() [2/2]

const_iterator active::geometry::XList::begin ( ) const

inline

Get an iterator at the first intersection

Returns: An iterator at the first intersection

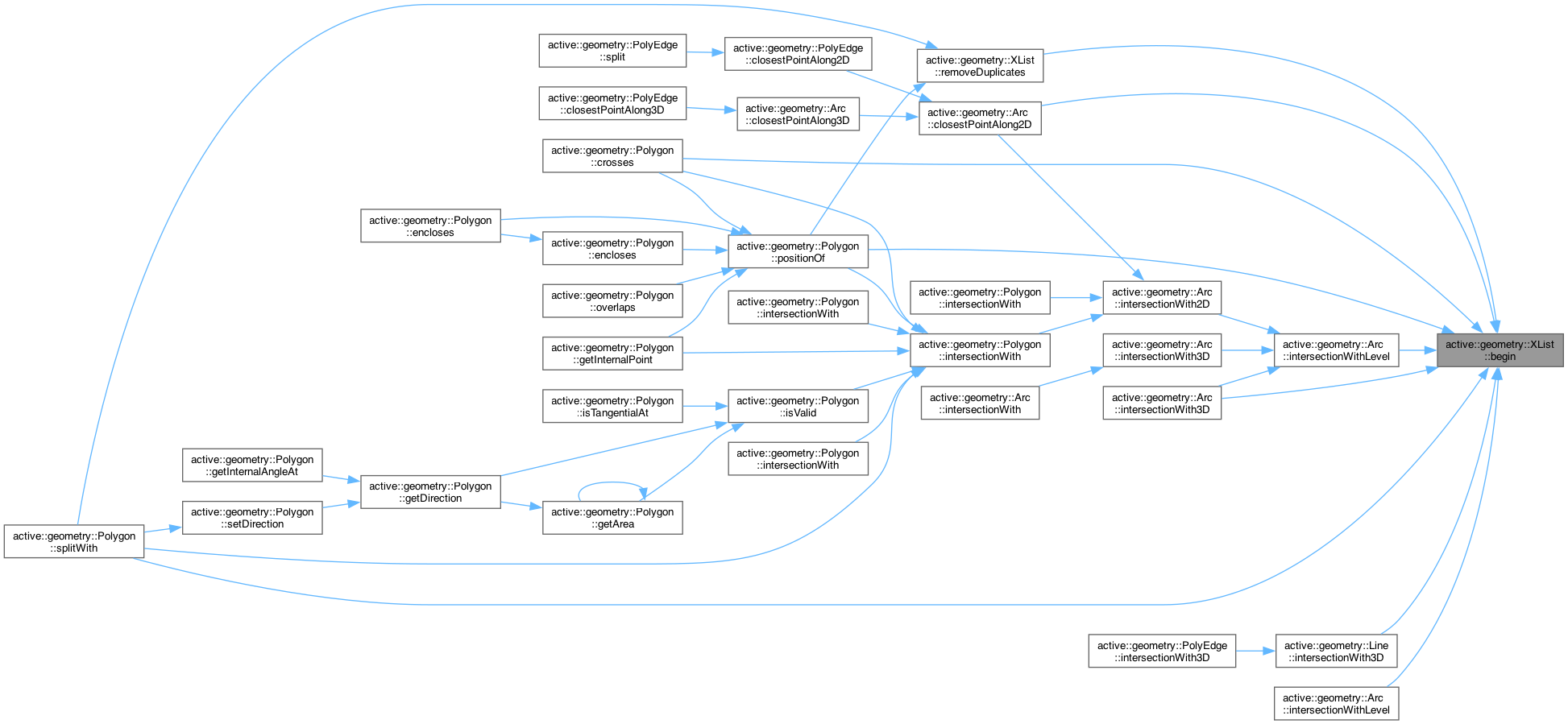

Here is the caller graph for this function:

◆ clear()

void active::geometry::XList::clear ( )

inline

Clear the list of intersections

◆ empty()

bool active::geometry::XList::empty ( ) const

inline

Determine if the intersection list is empty

Returns: True if the list is empty

◆ end() [1/2]

iterator active::geometry::XList::end ( )

inline

Get an iterator one beyond the last intersection

Returns: An iterator one beyond the last intersection

◆ end() [2/2]

const_iterator active::geometry::XList::end ( ) const

inline

Get an iterator one beyond the last intersection

Returns: An iterator one beyond the last intersection

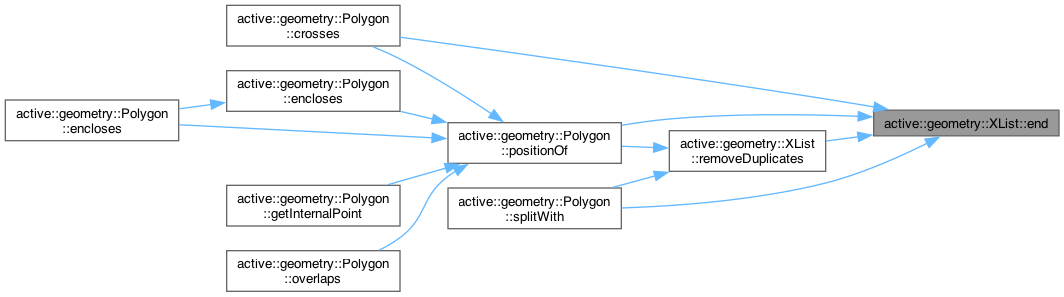

Here is the caller graph for this function:

◆ erase()

iterator active::geometry::XList::erase ( iterator iter )

inline

Erase the intersection at the specified iterator

Parameters

iter	The iterator pointing to the intersection to erase

Returns: A interator at the next intersection in the list

Here is the caller graph for this function:

◆ front() [1/2]

XPoint * active::geometry::XList::front ( )

inline

Get the front intersection in the list

Returns: The front intersection

◆ front() [2/2]

const XPoint * active::geometry::XList::front ( ) const

inline

Get the front intersection in the list

Returns: The front intersection

◆ getFilter()

const XInfo & active::geometry::XList::getFilter ( XPoint::Role role ) const

inline

Get the intersection filter for a specified role

Returns: The requested intersection filter

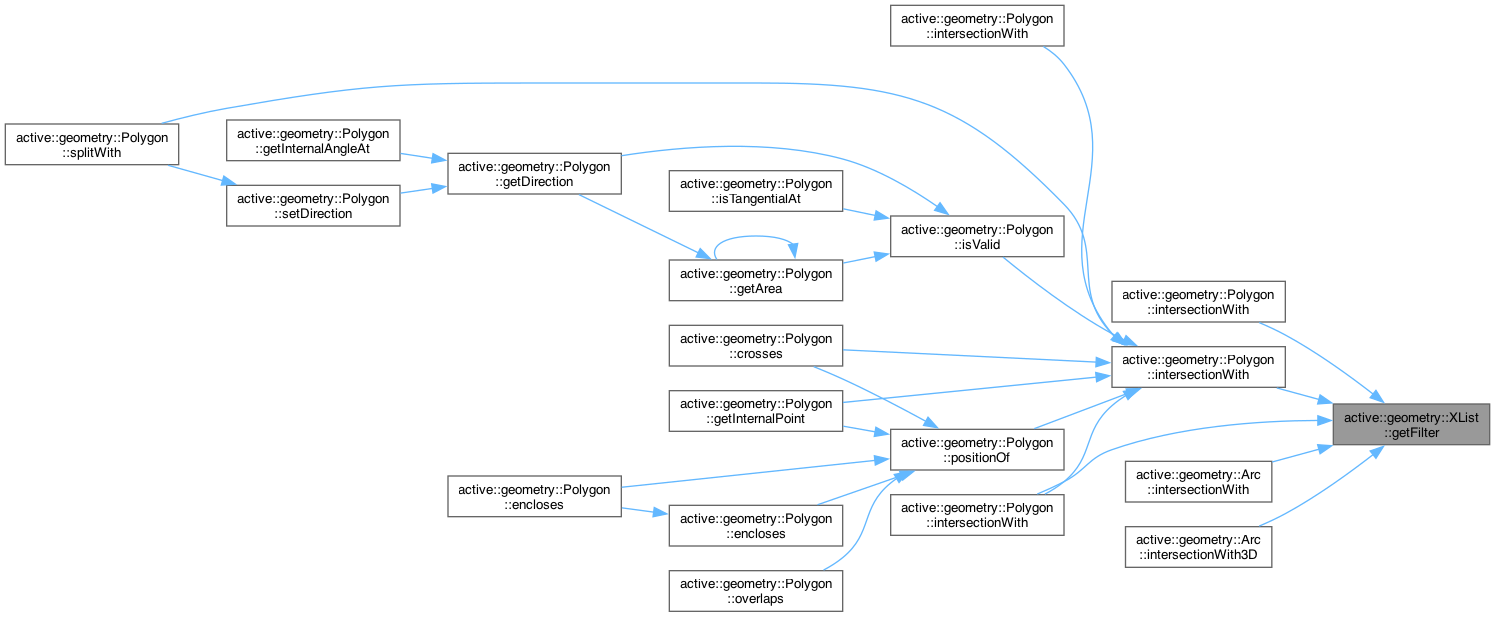

Here is the caller graph for this function:

◆ insert() [1/2]

bool XList::insert ( XPoint && pt )

Insert an intersection point

Parameters

pt	A new intersection point

Returns: True if the point was inserted

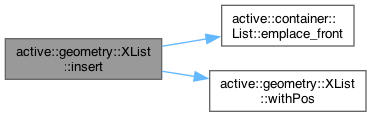

Here is the call graph for this function:

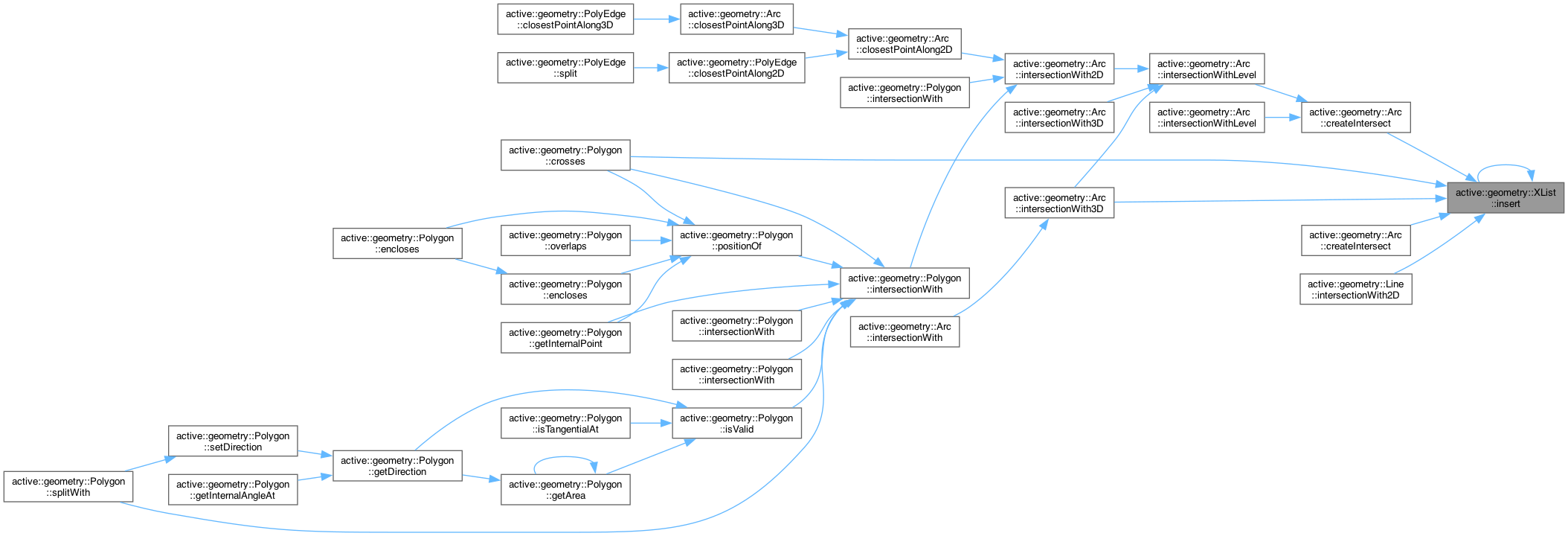

Here is the caller graph for this function:

◆ insert() [2/2]

bool XList::insert ( XPoint::Unique && pt )

Insert an intersection point

Parameters

pt	A new intersection point

Returns: True if the point was inserted

Here is the call graph for this function:

◆ isPos()

bool XList::isPos ( XPoint::Role role ) const

Determine if the list filters intersections for a specified role based on its relative position

Parameters

role	The component role

Returns: True if the list has a defined filter for this role

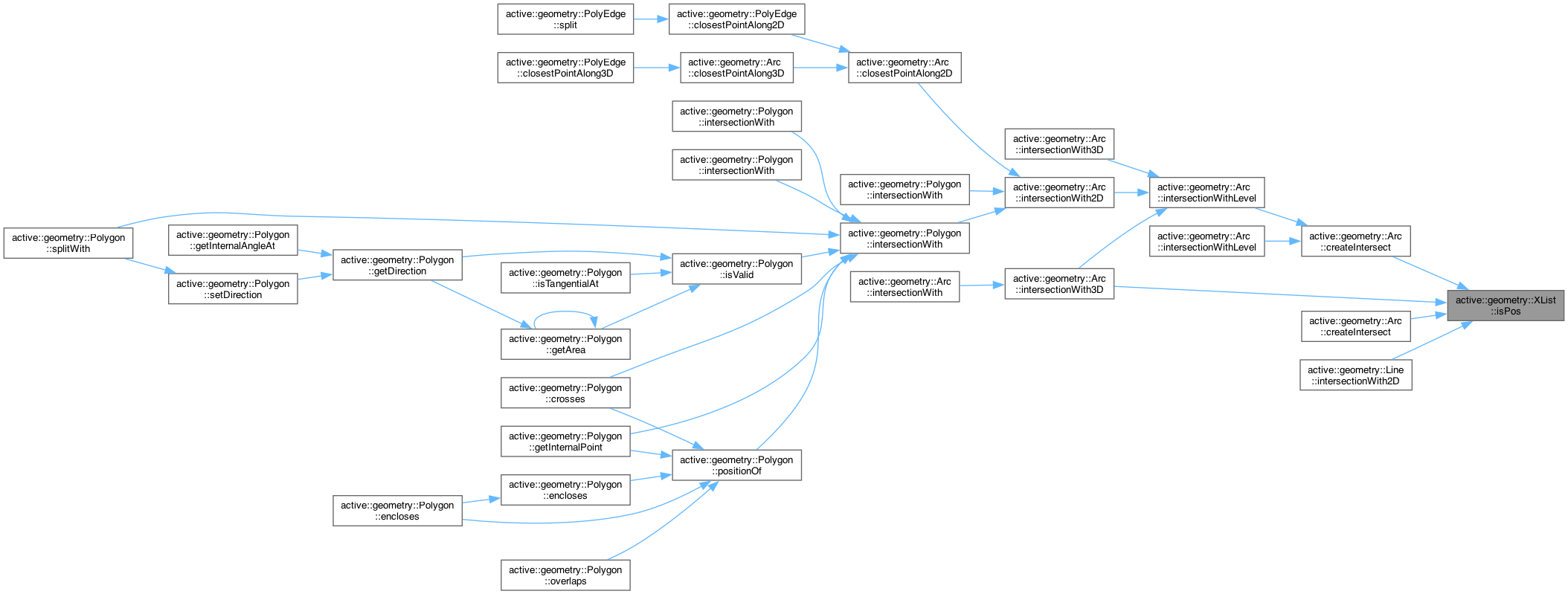

Here is the caller graph for this function:

◆ release()

auto active::geometry::XList::release ( iterator & iter )

inline

Release the intersection at the specified iterator

Parameters

iter	The iterator pointing to the intersection to release

Returns: The release intersection

Here is the call graph for this function:

◆ removeDuplicates()

void XList::removeDuplicates ( double prec = math::eps )

Remove duplicate intersections

Parameters

prec	The comparison precision

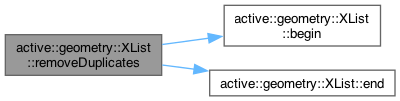

Here is the call graph for this function:

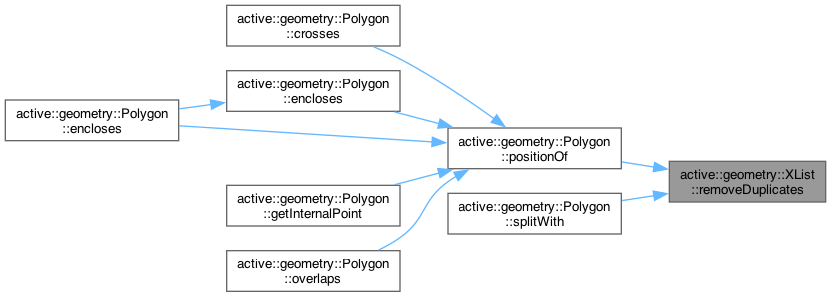

Here is the caller graph for this function:

◆ reverse()

void active::geometry::XList::reverse ( )

inline

Reverse the order of intersections in the list

◆ setFilter()

void active::geometry::XList::setFilter	(	XPoint::Role	role,
		const XInfo &	filter )

inline

Set the current target intersection filter

Parameters

filter The target intersection filter

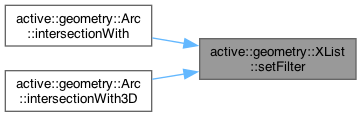

Here is the caller graph for this function:

◆ setPart()

void active::geometry::XList::setPart	(	XPoint::Role	role,
		partOption	partIndex )

inline

Set the current blade object ID

Parameters

partIndex The current blade part index

Here is the caller graph for this function:

◆ setVertex()

void active::geometry::XList::setVertex	(	XPoint::Role	role,
		vertOption	vertexIndex )

inline

Set the current target vertex index

Parameters

vertexIndex The current target vertex index

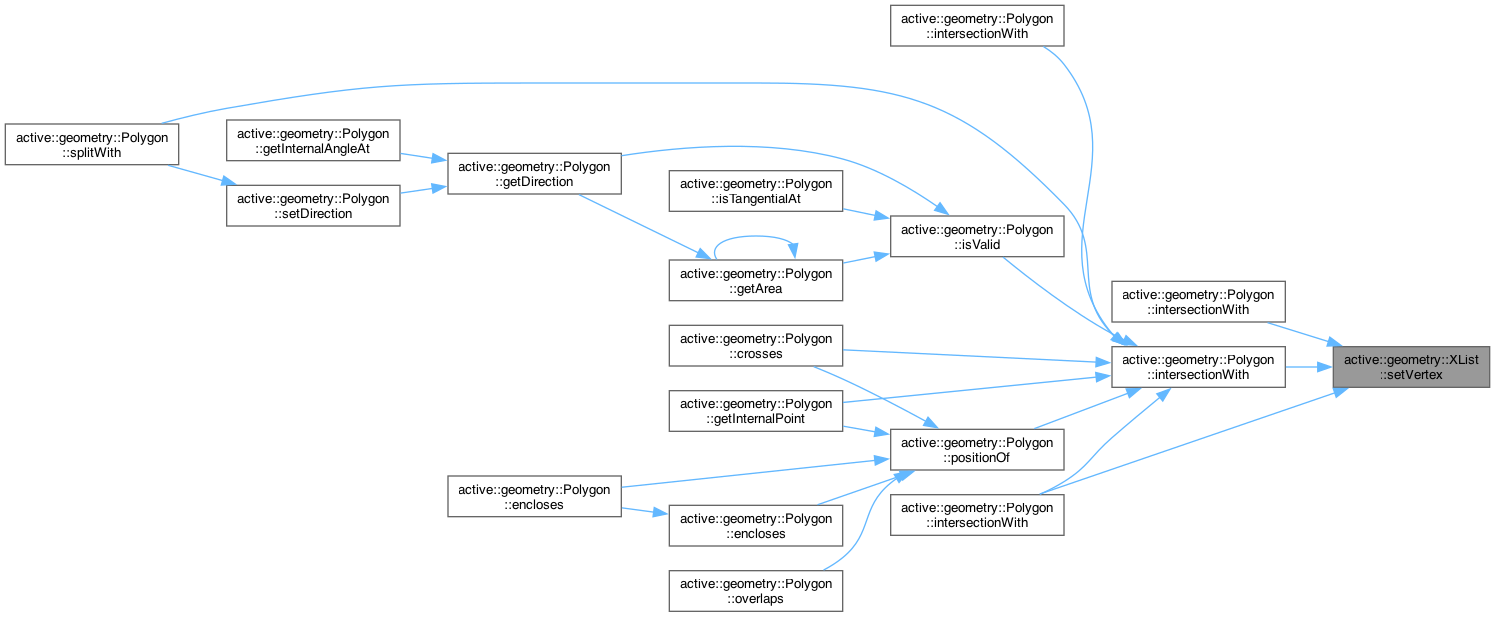

Here is the caller graph for this function:

◆ size()

size_type active::geometry::XList::size ( ) const

inline

Get the list size

Returns: The list size

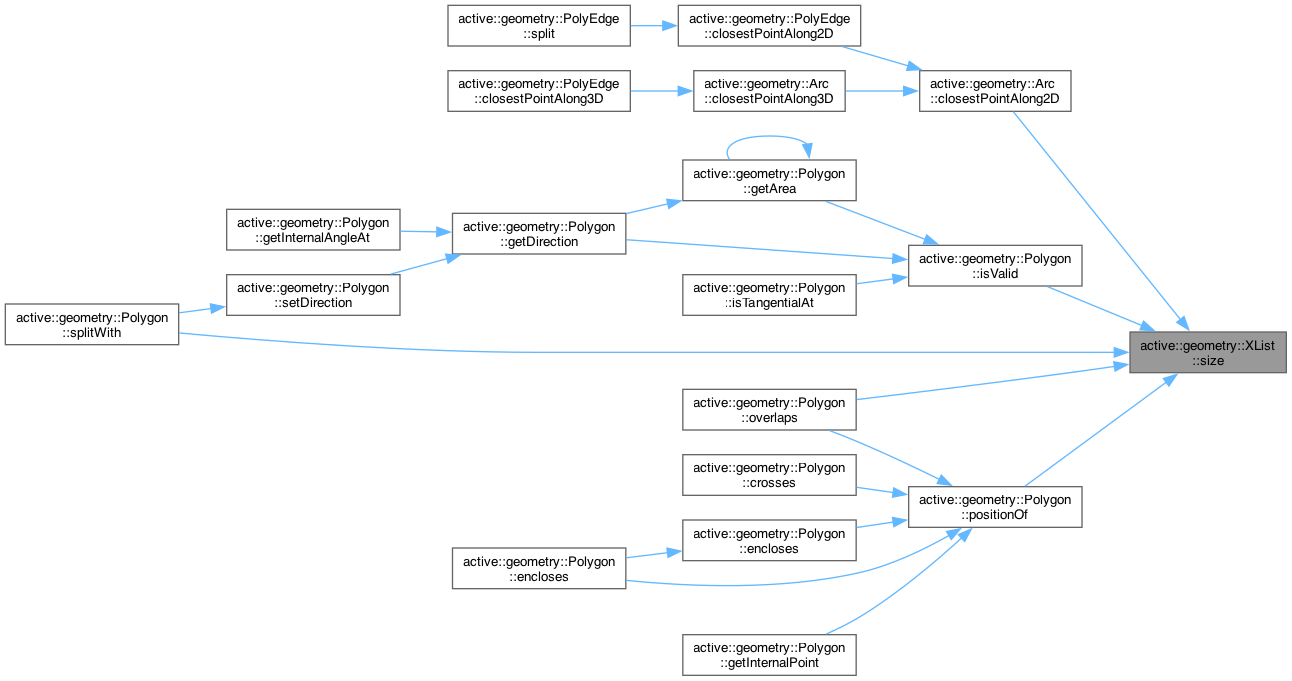

Here is the caller graph for this function:

◆ sort()

template<class Compare >

void active::geometry::XList::sort ( Compare comp )

inline

Template method to sort the list of intersections

Parameters

comp	The object to make the sort comparisons

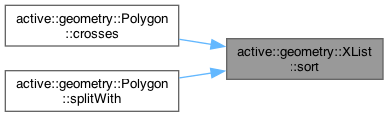

Here is the caller graph for this function:

◆ swapFilters()

void XList::swapFilters ( )

Swap the target and blade filters

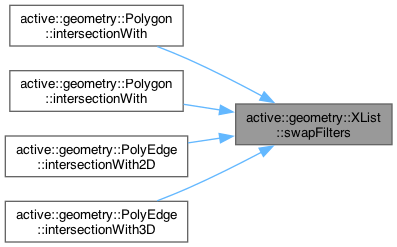

Here is the caller graph for this function:

◆ withPos()

bool XList::withPos	(	XPoint::Role	role,
		Position	pos ) const

Determine if the list accepts intersections having a relative position to a component with a specified role

Parameters

role	The component role
pos	The relative position of the point with respect to the component

Returns: True if the list accepts this relative position for the role

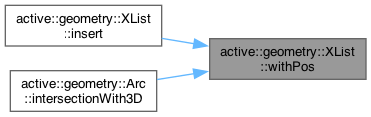

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/XList.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/XList.cpp
