#include <Point.h>

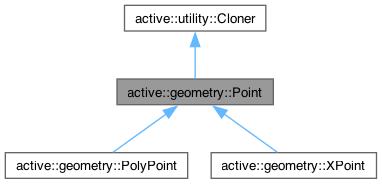

Inheritance diagram for active::geometry::Point:

[legend]

Collaboration diagram for active::geometry::Point:

Public Types
using	Unique = std::unique_ptr<Point>
	Unique pointer.

using	Shared = std::shared_ptr<Point>
	Shared pointer.

using	Option = std::optional<Point>
	Optional.

Public Member Functions
	Point ()

	Point (const double &x, const double &y, const double &z=0.0)

	Point (const Point &source2D, double z)

virtual	~Point ()=default

virtual Point *	clonePtr () const

virtual bool	operator== (const Point &ref) const

virtual bool	operator!= (const Point &ref) const

virtual bool	operator< (const Point &ref) const

Point &	operator= (const Point &source)

virtual Point	operator+ (const Point &offset) const

virtual Point &	operator+= (const Point &offset)

virtual Point	operator- (const Point &offset) const

virtual Point &	operator-= (const Point &offset)

virtual Point	operator* (const double &mult) const

virtual Point	operator* (const Matrix3x3 &matrix) const

virtual Point	operator* (const Matrix4x4 &matrix) const

virtual Point &	operator*= (const double &mult)

virtual Point &	operator*= (const Matrix3x3 &matrix)

virtual Point &	operator*= (const Matrix4x4 &matrix)

virtual Point	operator/ (const double &mult) const

virtual Point &	operator/= (const double &mult)

virtual bool	isEqual2D (const Point &ref, double prec=math::eps) const

virtual bool	isEqual3D (const Point &ref, double prec=math::eps) const

virtual double	lengthFrom2D (const Point &ref) const

virtual double	lengthFrom3D (const Point &ref) const

Point	rounded2D (double prec=math::eps) const

Point	rounded3D (double prec=math::eps) const

double	azimuthAngleTo (const Point &ref) const

double	altitudeAngleTo (const Point &ref) const

Point &	movePolar (double len, double angle)

Point &	movePolar (double len, double azim, double alt)

Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Public Attributes
double	x
	X coordinate.

double	y
	Y coordinate.

double	z
	Z coordinate.

Detailed Description

A class to represent a point in 3-dimensional space, i.e. with x, y, z coordinates

Note that this class serves for both 2D and 3D contexts (rather than having a separate class for each). Functionality that is specific to either context is clearly labelled, e.g. 'isEqual2D' vs 'isEqual3D'.

Constructor & Destructor Documentation

◆ Point() [1/3]

Point::Point ( )

Constructor

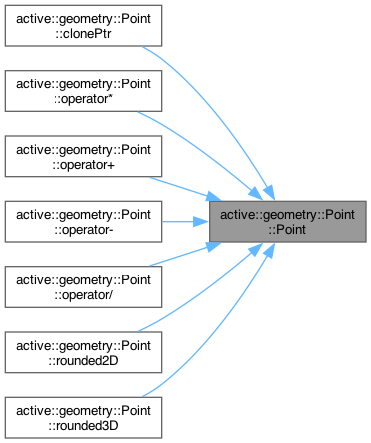

Here is the caller graph for this function:

◆ Point() [2/3]

Point::Point	(	const double &	x,
		const double &	y,
		const double &	z = 0.0 )

Constructor

Parameters

x	X coordinate
y	Y coordinate
z	Z coordinate

◆ Point() [3/3]

Point::Point	(	const Point &	source2D,
		double	z )

Constructor

Parameters

source2D	A 2D point, i.e. only the x/y coordinates are relevant
z	z coordinate

◆ ~Point()

virtual active::geometry::Point::~Point ( )

virtualdefault

Destructor

Member Function Documentation

◆ altitudeAngleTo()

double Point::altitudeAngleTo ( const Point & ref ) const

Calculates the altitude angle from this to the specified point

Parameters

ref	A point to calculate the angle to

Returns: The altitude angle from this to the specified point (-pi / 2 to pi / 2)

Here is the call graph for this function:

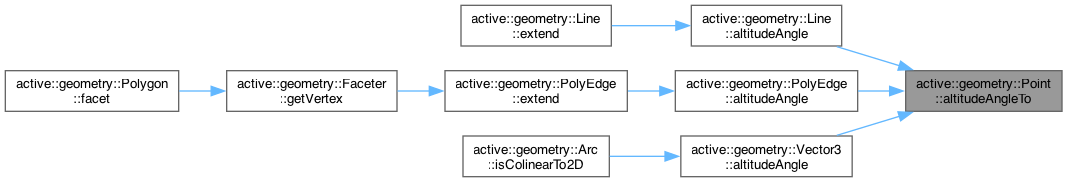

Here is the caller graph for this function:

◆ azimuthAngleTo()

double Point::azimuthAngleTo ( const Point & ref ) const

Calculates the azimuth angle from this to the specified point

Parameters

ref	A point to calculate the angle to

Returns: The azimuth angle from this to the specified point (0 to 2.pi)

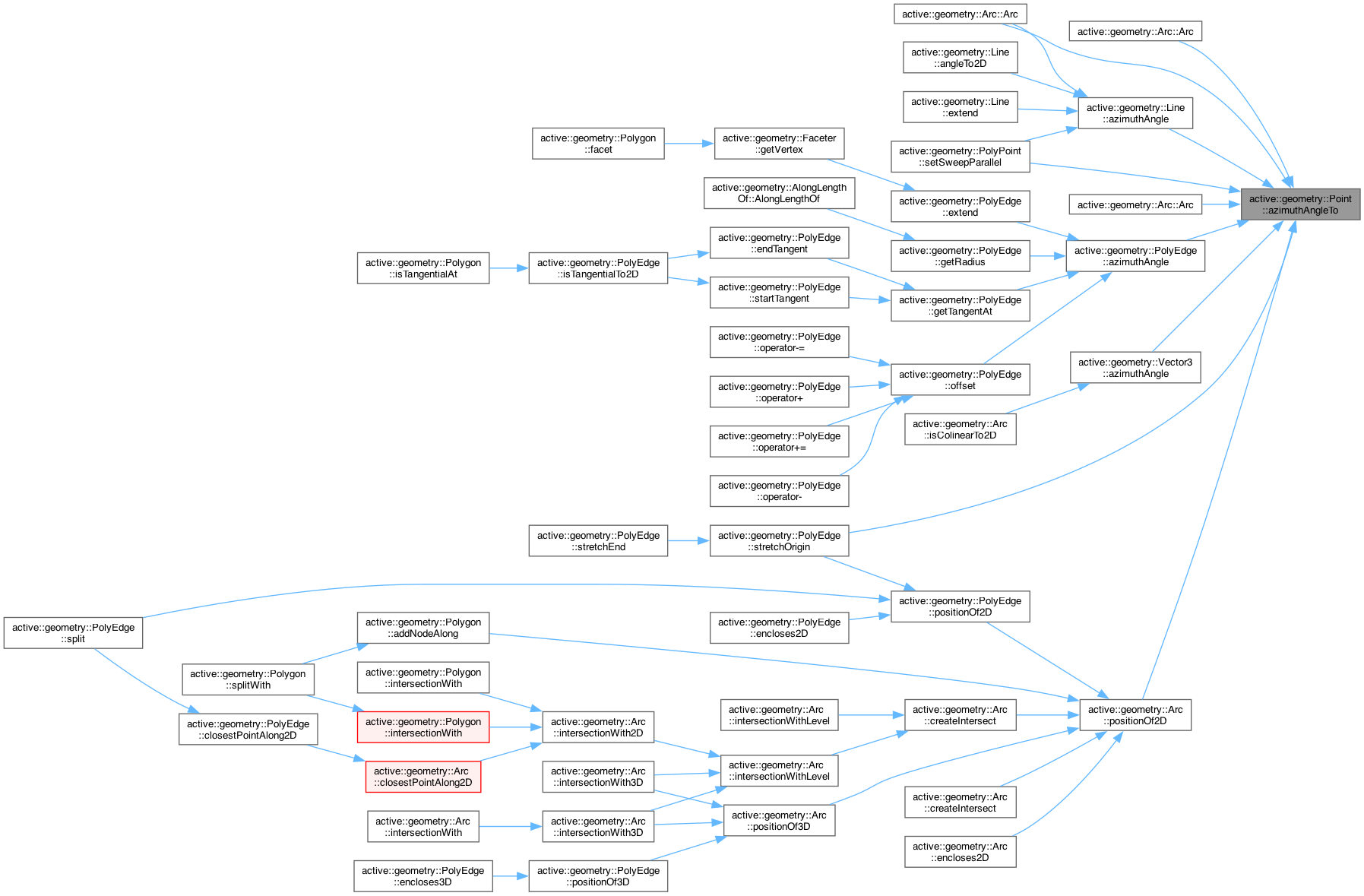

Here is the caller graph for this function:

◆ clonePtr()

virtual Point * active::geometry::Point::clonePtr ( ) const

inlinevirtual

Clone method

Returns: A clone of this object

Implements active::utility::Cloner.

Reimplemented in active::geometry::XPoint, and active::geometry::PolyPoint.

Here is the call graph for this function:

◆ isEqual2D()

bool Point::isEqual2D	(	const Point &	ref,
		double	prec = math::eps ) const

virtual

Determine if two points are equal in 2D

Parameters

ref	The point to compare with this
prec	Precision

Returns: True if the points are identical

Here is the call graph for this function:

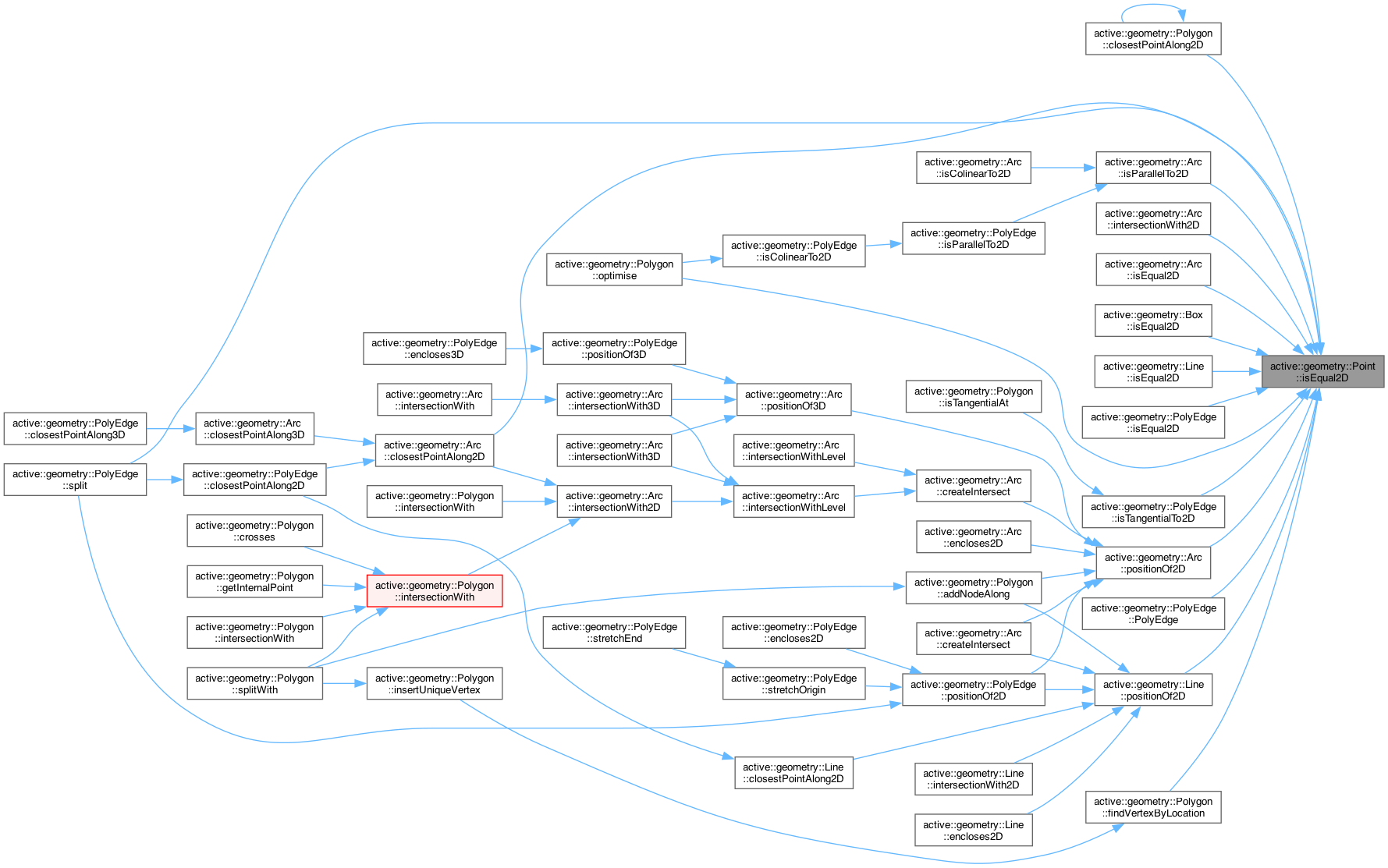

Here is the caller graph for this function:

◆ isEqual3D()

bool Point::isEqual3D	(	const Point &	ref,
		double	prec = math::eps ) const

virtual

Determine if two points are equal

Parameters

ref	The point to compare with this
prec	Precision

Returns: True if the points are identical

Here is the call graph for this function:

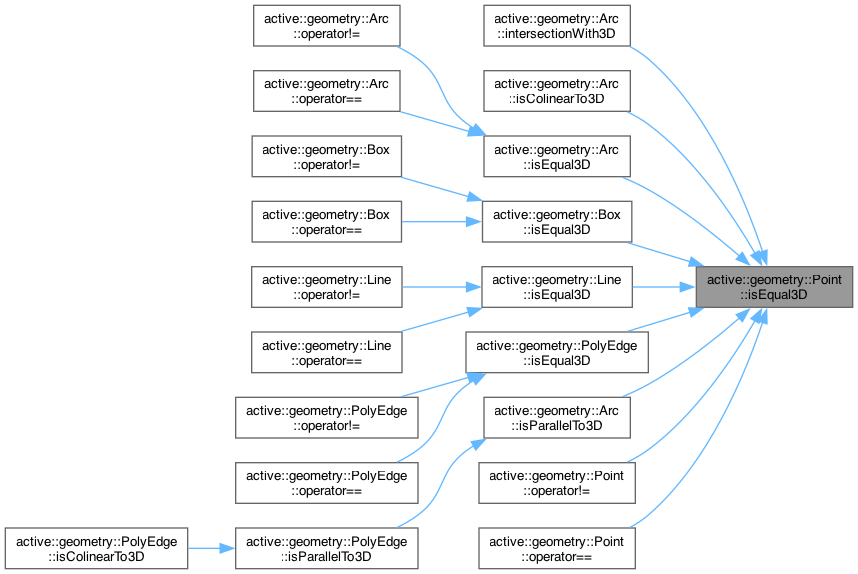

Here is the caller graph for this function:

◆ lengthFrom2D()

double Point::lengthFrom2D ( const Point & ref ) const

virtual

Calculates the 2D distance from this to a specified point

Parameters

ref	The point to compare with this

Returns: The 2D distance between the points

Reimplemented in active::geometry::PolyPoint.

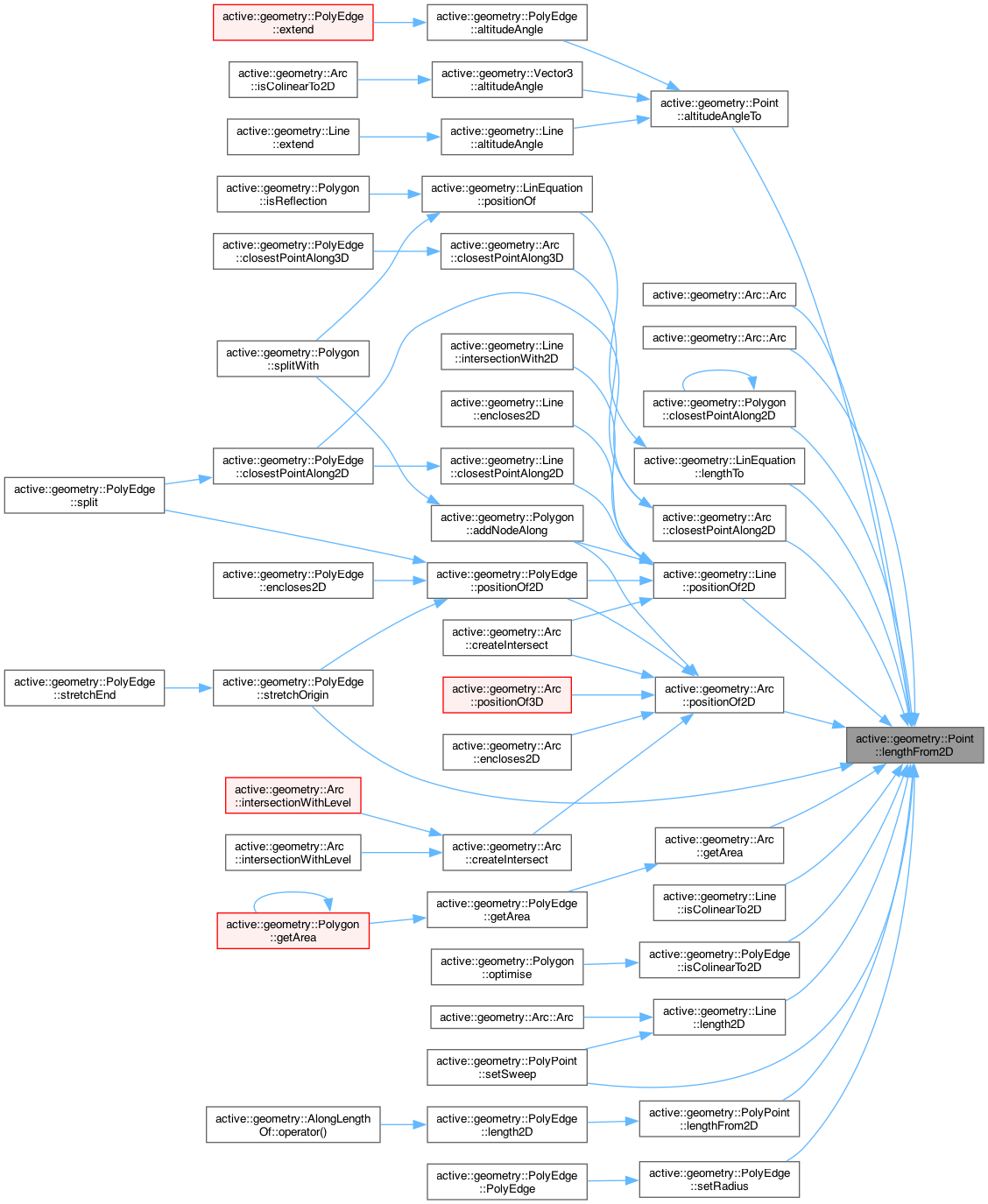

Here is the caller graph for this function:

◆ lengthFrom3D()

double Point::lengthFrom3D ( const Point & ref ) const

virtual

Calculates the distant from a specified point to this in 3D

Parameters

ref	A point to calculate the distance from

Returns: The distance from the point to this

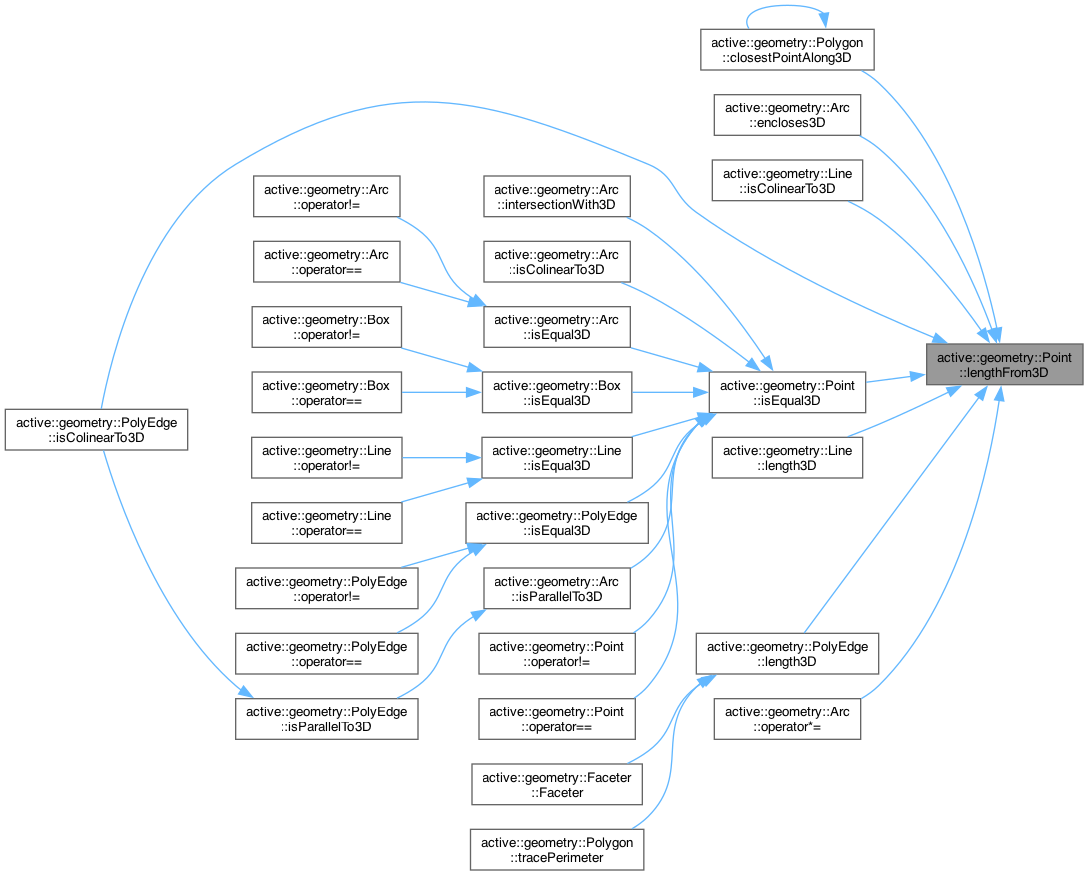

Here is the caller graph for this function:

◆ movePolar() [1/2]

Point & Point::movePolar	(	double	len,
		double	angle )

Offset a point in the x/y plane by the specified distance and angle

Parameters

len	The distance to move the point
angle	The angle on which the point will move

Returns: A reference to this

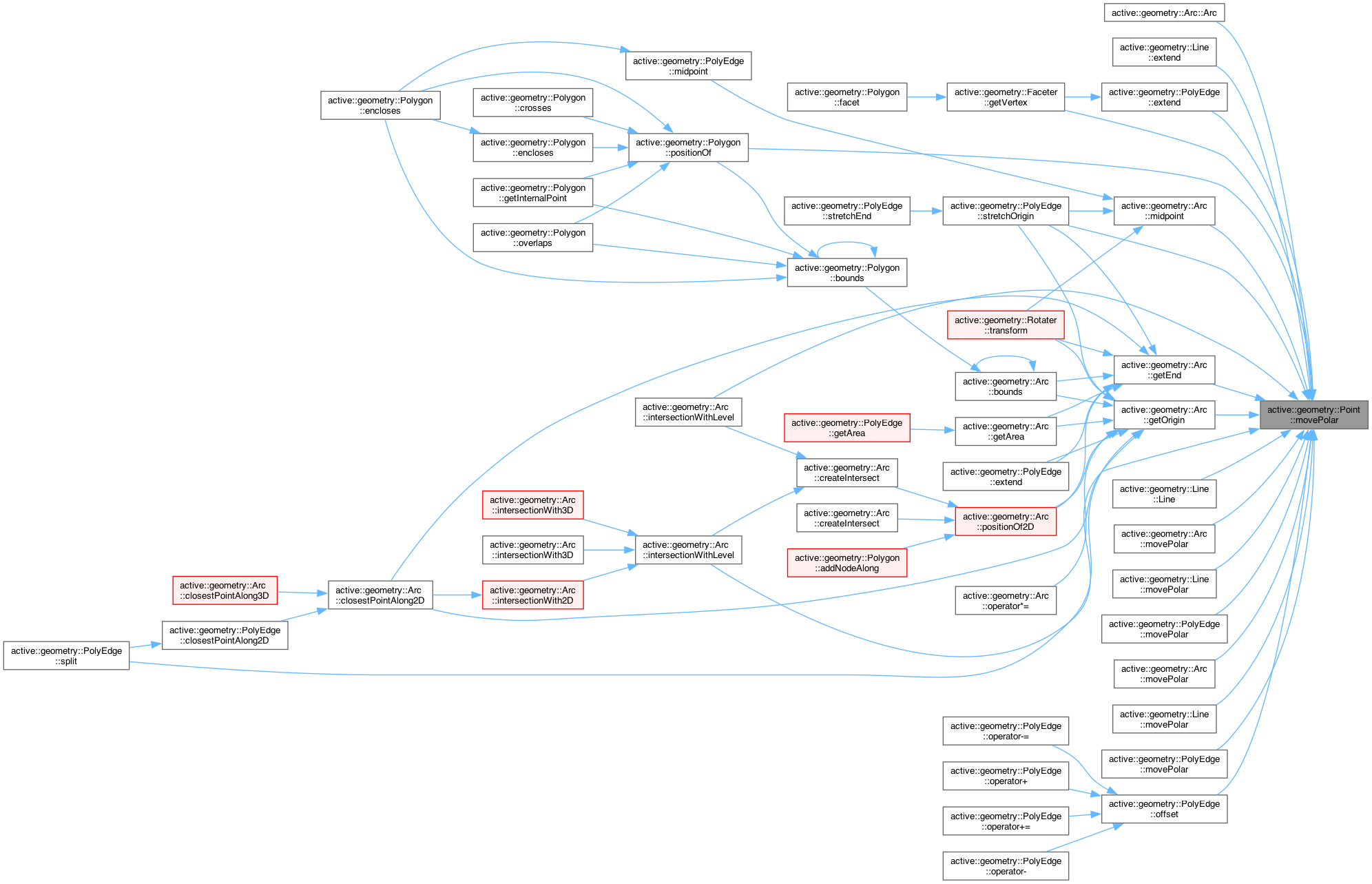

Here is the caller graph for this function:

◆ movePolar() [2/2]

Point & Point::movePolar	(	double	len,
		double	azim,
		double	alt )

Offset a point in the x/y/z plane by the specified distance and azimuth/altitude angle

Parameters

len	The distance to move the point
azim	The azimuth angle on which the point will move
alt	The altitude angle on which the point will move

Returns: A reference to this

◆ operator!=()

virtual bool active::geometry::Point::operator!= ( const Point & ref ) const

inlinevirtual

Inequality operator

Parameters

ref	The point to compare with this

Returns: True if the points are different

Here is the call graph for this function:

◆ operator*() [1/3]

Point Point::operator* ( const double & mult ) const

virtual

Multiplication operator

Parameters

mult	The factor to multiply the point by

Returns: The result of the multiplication of this and the specified factor

Here is the call graph for this function:

◆ operator*() [2/3]

Point Point::operator* ( const Matrix3x3 & matrix ) const

virtual

Multiplication operator

Parameters

matrix The matrix to multiply the point by

Returns: The result of the multiplication

◆ operator*() [3/3]

Point Point::operator* ( const Matrix4x4 & matrix ) const

virtual

Multiplication operator

Parameters

matrix The matrix to multiply the point by

Returns: The result of the multiplication

◆ operator*=() [1/3]

Point & Point::operator*= ( const double & mult )

virtual

Multiplication and assignment operator

Parameters

mult	The factor to multiply the point by

Returns: A reference to this

◆ operator*=() [2/3]

Point & Point::operator*= ( const Matrix3x3 & matrix )

virtual

Multiplication and assignment operator

Parameters

matrix The matrix to multiply the point by

Returns: A reference to this

◆ operator*=() [3/3]

Point & Point::operator*= ( const Matrix4x4 & matrix )

virtual

Multiplication and assignment operator

Parameters

matrix The matrix to multiply the point by

Returns: A reference to this

◆ operator+()

Point Point::operator+ ( const Point & offset ) const

virtual

Addition operator

Parameters

offset The point to add

Returns: The sum of this and the specified points

Here is the call graph for this function:

◆ operator+=()

Point & Point::operator+= ( const Point & offset )

virtual

Addition and assignment operator

Parameters

offset The point to add

Returns: A reference to this

◆ operator-()

Point Point::operator- ( const Point & offset ) const

virtual

Substraction operator

Parameters

offset The point to substract

Returns: The result of this less the specified point

Here is the call graph for this function:

◆ operator-=()

Point & Point::operator-= ( const Point & offset )

virtual

Substraction and assignment operator

Parameters

offset The point to substract

Returns: A reference to this

◆ operator/()

Point Point::operator/ ( const double & mult ) const

virtual

Division operator

Parameters

mult	The factor to divide the point by

Returns: The result of the division of this by the specified factor

Here is the call graph for this function:

◆ operator/=()

Point & Point::operator/= ( const double & mult )

virtual

Division and assignment operator

Parameters

mult	The factor to divide the point by

Returns: A reference to this

◆ operator<()

bool Point::operator< ( const Point & ref ) const

virtual

Less-than operator

Parameters

ref	The point to compare with this

Returns: True if this is less than ref

Here is the call graph for this function:

◆ operator=()

Point & Point::operator= ( const Point & source )

Assignment operator

Parameters

source The point to assign

Returns: A reference to this

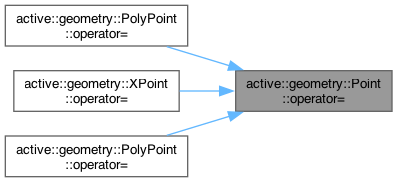

Here is the caller graph for this function:

◆ operator==()

virtual bool active::geometry::Point::operator== ( const Point & ref ) const

inlinevirtual

Equality operator

Parameters

ref	The point to compare with this

Returns: True if the points are identical

Here is the call graph for this function:

◆ rounded2D()

Point Point::rounded2D ( double prec = math::eps ) const

Return the point with coordinates rounded to the specified level of precision

Returns: The point with rounded coordinates (z set to 0.0)

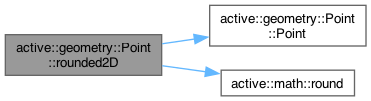

Here is the call graph for this function:

◆ rounded3D()

Point Point::rounded3D ( double prec = math::eps ) const

Return the point with coordinates rounded to the specified level of precision

Returns: The point with rounded coordinates

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Point.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Point.cpp
