Class to represent an arc. More...

#include <Arc.h>

Inheritance diagram for active::geometry::Arc:

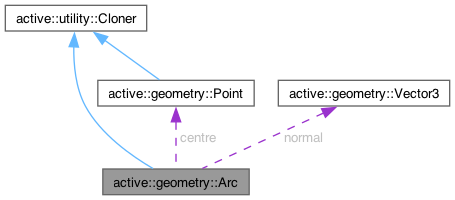

Collaboration diagram for active::geometry::Arc:

[legend]

Public Types
using	Unique = std::unique_ptr<Arc>
	Unique pointer.

using	Shared = std::shared_ptr<Arc>
	Shared pointer.

using	Option = std::optional<Arc>
	Optional.

Public Member Functions
	Arc ()

	Arc (const Point &centre, double radius, double sweep=2.0 *math::pi, double start=0, const Vector3 &norm=Vector3(0, 0, 1))

	Arc (const Point &centre, const Point &pt1, const Point &pt2, bool isClockwise)

	Arc (const Point &pt1, const Point &pt2, const Point &pt3)

	Arc (const Point &origin, const PolyPoint &end)

Arc *	clonePtr () const

bool	operator== (const Arc &ref) const

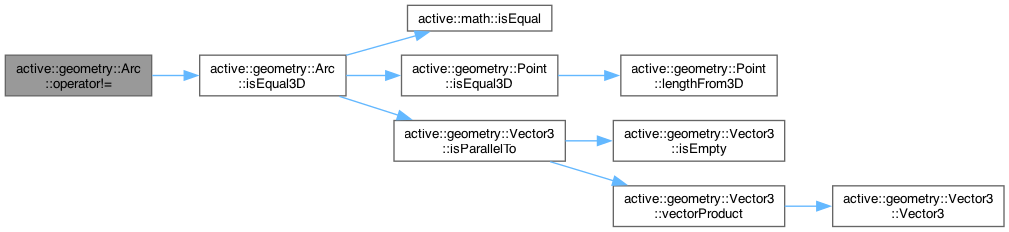

bool	operator!= (const Arc &ref) const

Arc &	operator= (const Arc &source)

Arc	operator+ (const Point &offset) const

Arc &	operator+= (const Point &offset)

Arc	operator- (const Point &offset) const

Arc &	operator-= (const Point &offset)

Arc	operator* (double scale) const

Arc &	operator*= (double scale)

Arc	operator* (const Matrix3x3 &matrix) const

Arc &	operator*= (const Matrix3x3 &matrix)

double	isValid (double prec=math::eps) const

bool	isEqual2D (const Arc &ref, double prec=math::eps) const

bool	isEqual3D (const Arc &ref, double prec=math::eps) const

Point	getOrigin () const

PolyPoint	getEnd () const

Point	midpoint () const

double	getEndAngle () const

Plane	getPlane () const

Box::Unique	bounds () const

double	length2D () const

double	length3D () const

double	getArea (bool isArcOnly=true, bool isResultSigned=false) const

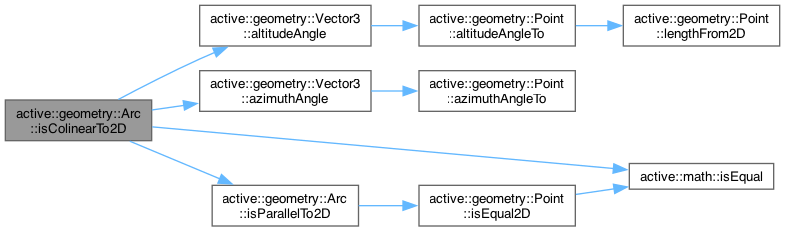

bool	isColinearTo2D (const Arc &ref, double prec=math::eps) const

bool	isColinearTo3D (const Arc &ref, double prec=math::eps) const

bool	isParallelTo2D (const Arc &ref, double prec=math::eps) const

bool	isParallelTo3D (const Arc &ref, double prec=math::eps) const

Point	closestPointAlong2D (const Point &ref, double prec=math::eps) const

Point	closestPointAlong3D (const Point &ref, double prec=math::eps) const

Point	closestPointTo2D (const Point &ref, double prec=math::eps) const

Point	closestPointTo3D (const Point &ref, double prec=math::eps) const

vertex_index	intersectionWith (const Plane &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith2D (const Line &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith2D (const Arc &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith3D (const Line &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWith3D (const Arc &ref, XList &inter, double prec=math::eps) const

Position	positionOf2D (const Point &ref, double prec=math::eps) const

Position	positionOf3D (const Point &ref, double prec=math::eps) const

bool	encloses2D (const Point &ref, double prec=math::eps) const

bool	encloses3D (const Point &ref, double prec=math::eps) const

void	setEndAngle (double end)

void	movePolar (double len, double azim, double alt)

void	movePolar (double len, double angle)

void	expand (double inc)

void	spin (double rotAngle)

void	flip ()

Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Public Attributes
Point	centre

Vector3	normal

double	radius

double	startAngle

double	sweep

Protected Member Functions
void	initLevel (Leveller &level, double prec=math::eps) const

bool	createIntersect (const Point &pt, const Arc &arc, const Arc &ref, XList &inter, double prec=math::eps) const

bool	createIntersect (const Point &pt, const Arc &arc, const Line &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWithLevel (const Line &ref, XList &inter, double prec=math::eps) const

vertex_index	intersectionWithLevel (const Arc &ref, XList &inter, double prec=math::eps) const

Detailed Description

Class to represent an arc.

Constructor & Destructor Documentation

◆ Arc() [1/5]

Arc::Arc ( )

Constructor

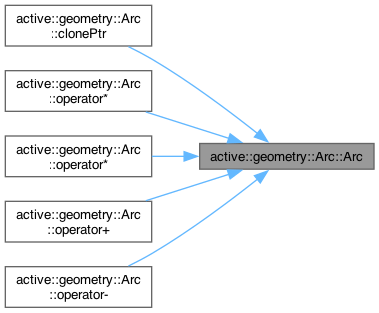

Here is the caller graph for this function:

◆ Arc() [2/5]

Arc::Arc	(	const Point &	centre,
		double	radius,
		double	sweep = 2.0 * math::pi,
		double	start = 0,
		const Vector3 &	norm = Vector3(0, 0, 1) )

Constructor

Parameters

centre	Centre of the arc
start	Start angle of the arc sweep
sweep	Arc sweep angle
norm	Normal to the arc plane

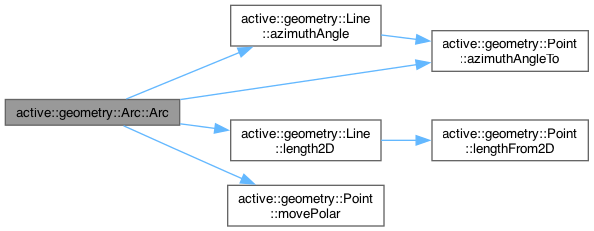

◆ Arc() [3/5]

Arc::Arc	(	const Point &	centre,
		const Point &	pt1,
		const Point &	pt2,
		bool	isClockwise )

Constructor

Parameters

centre	Centre of the arc
pt1	First point on the arc
pt2	Second point on the arc
isClockwise	True if the arc travels in a clockwise direction from pt1 to pt2

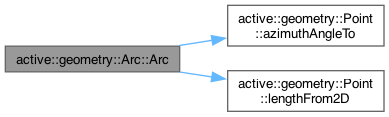

Here is the call graph for this function:

◆ Arc() [4/5]

Arc::Arc	(	const Point &	pt1,
		const Point &	pt2,
		const Point &	pt3 )

Constructor

Parameters

pt1	First point on the arc (Note: points must be consecutive)
pt2	Second point on the arc
pt3	Third point on the arc

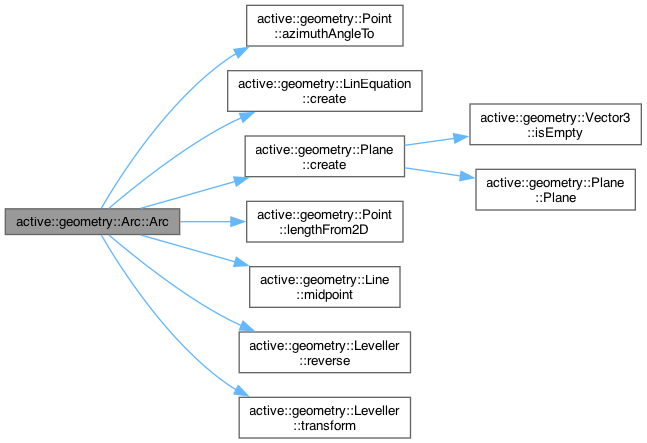

Here is the call graph for this function:

◆ Arc() [5/5]

Arc::Arc	(	const Point &	origin,
		const PolyPoint &	end )

Constructor

Parameters

origin	Origin point of the arc
end	End point of the arc

Here is the call graph for this function:

Member Function Documentation

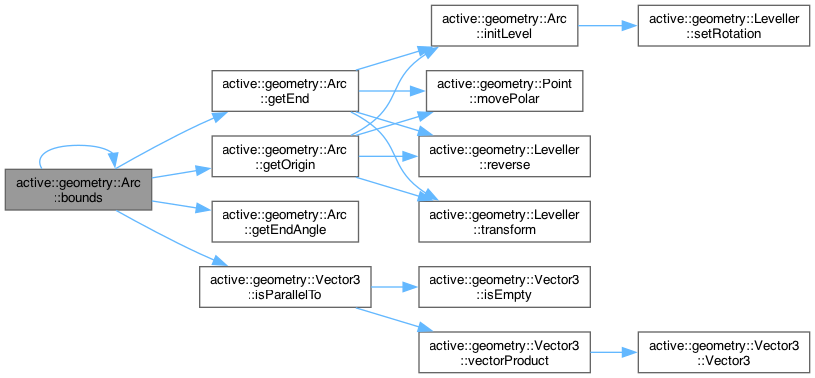

◆ bounds()

Box::Unique Arc::bounds ( ) const

Get the bounds of the arc

Returns: The bounds of the arc

Here is the call graph for this function:

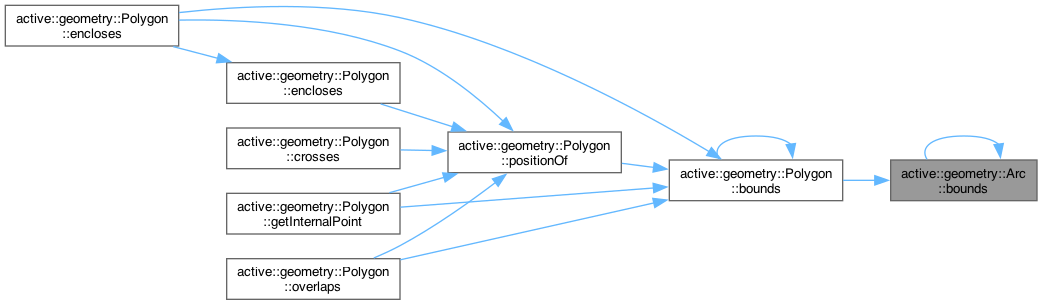

Here is the caller graph for this function:

◆ clonePtr()

Arc * active::geometry::Arc::clonePtr ( ) const

inlinevirtual

Clone method

Returns: A clone of this object

Implements active::utility::Cloner.

Here is the call graph for this function:

◆ closestPointAlong2D()

Point Arc::closestPointAlong2D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point along the arc to a given point in 2D

Parameters

ref	The reference point

Returns: The closest point along the arc to the reference point

Here is the call graph for this function:

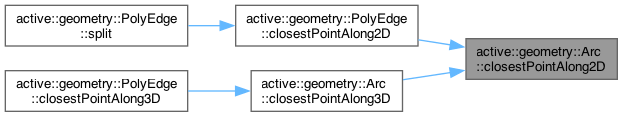

Here is the caller graph for this function:

◆ closestPointAlong3D()

Point Arc::closestPointAlong3D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point along the arc to a given point

Parameters

ref	The reference point

Returns: The closest point along the line to the reference point

Here is the call graph for this function:

Here is the caller graph for this function:

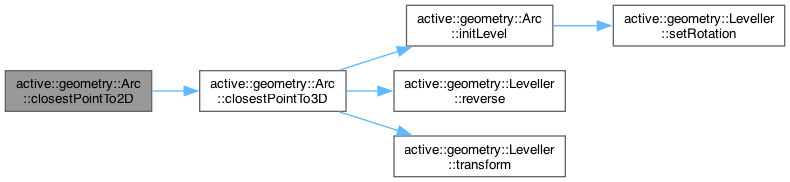

◆ closestPointTo2D()

Point Arc::closestPointTo2D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point in the arc to a given point in 2D

Parameters

ref	The reference point

Returns: The closest point in the arc to the reference point

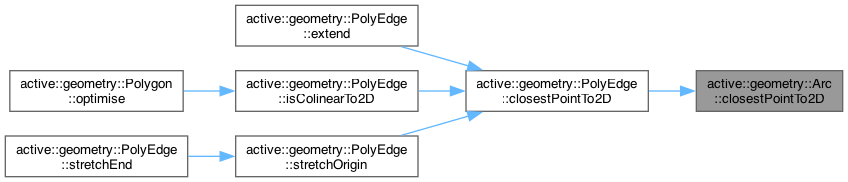

Here is the call graph for this function:

Here is the caller graph for this function:

◆ closestPointTo3D()

Point Arc::closestPointTo3D	(	const Point &	ref,
		double	prec = math::eps ) const

Get the closest point in the arc to a given point

Parameters

ref	The reference point

Returns: The closest point in the arc to the reference point

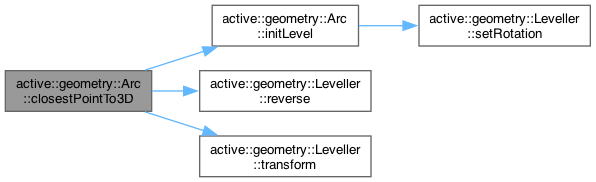

Here is the call graph for this function:

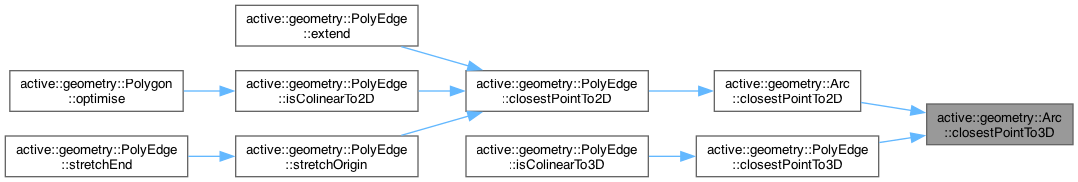

Here is the caller graph for this function:

◆ createIntersect() [1/2]

bool Arc::createIntersect	(	const Point &	pt,
		const Arc &	arc,
		const Arc &	ref,
		XList &	inter,
		double	prec = math::eps ) const

protected

Create an intersection point

Parameters

pt	The intersection point
arc	The source arc
ref	The reference arc
inter	The intersection list to populate
prec	The required precision

Returns: True if a new intersection was formed

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createIntersect() [2/2]

bool Arc::createIntersect	(	const Point &	pt,
		const Arc &	arc,
		const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

protected

Create an intersection point

Parameters

pt	The intersection point
arc	The source arc
ref	The reference line
inter	The intersection list to populate
prec	The required precision

Returns: True if a new intersection was formed

Here is the call graph for this function:

◆ encloses2D()

bool Arc::encloses2D	(	const Point &	ref,
		double	prec = math::eps ) const

Determine if a point is enclosed by an arc in 2D

Parameters

ref	The reference point

Returns: True if the arcarc encloses the point

Here is the call graph for this function:

◆ encloses3D()

bool Arc::encloses3D	(	const Point &	ref,
		double	prec = math::eps ) const

Determine if a point is enclosed by an arc

Parameters

ref	The reference point

Returns: True if the arc encloses the point

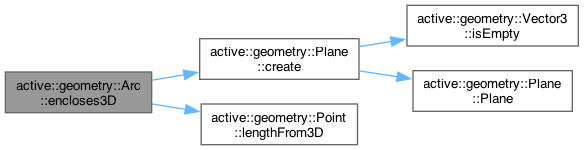

Here is the call graph for this function:

◆ expand()

void active::geometry::Arc::expand ( double inc )

inline

Adjust the radius by the specified amount

Parameters

inc	The expansion amount

◆ flip()

void Arc::flip ( )

Flip the arc

◆ getArea()

double Arc::getArea	(	bool	isArcOnly = true,
		bool	isResultSigned = false ) const

Get the arc area

Parameters

isArcOnly	True if only the area enclosed by the arc is included (not the wedge to the centre)
isResultSigned	True if the result should be signed (reflecting the arc angle)

Returns: The arc area

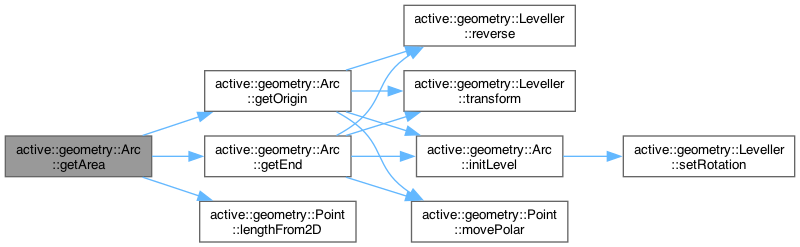

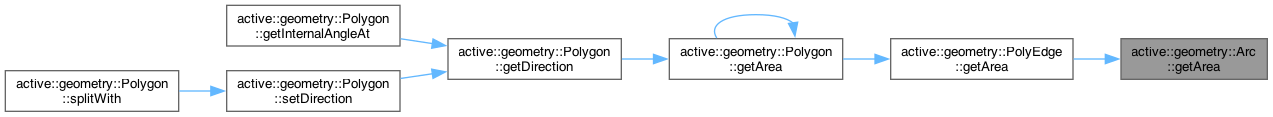

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getEnd()

PolyPoint Arc::getEnd ( ) const

Get the end point of the arc

Returns: The end point

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getEndAngle()

double active::geometry::Arc::getEndAngle ( ) const

inline

Get the arc end angle

Returns: The arc end angle

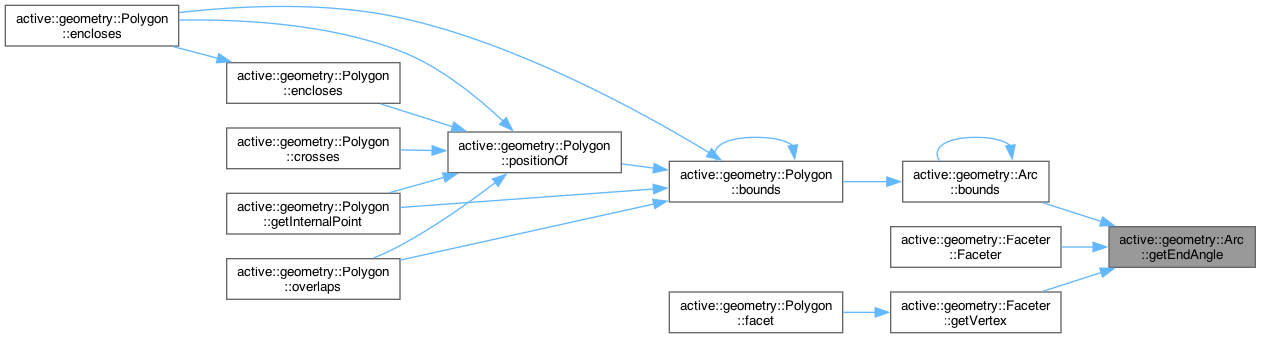

Here is the caller graph for this function:

◆ getOrigin()

Point Arc::getOrigin ( ) const

Get the origin point of the arc

Returns: The origin point

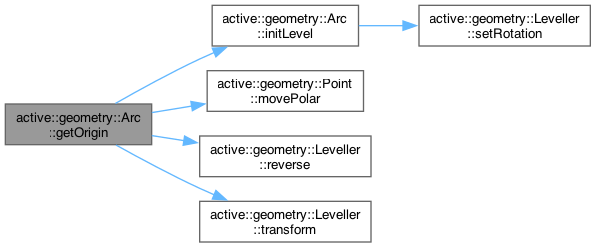

Here is the call graph for this function:

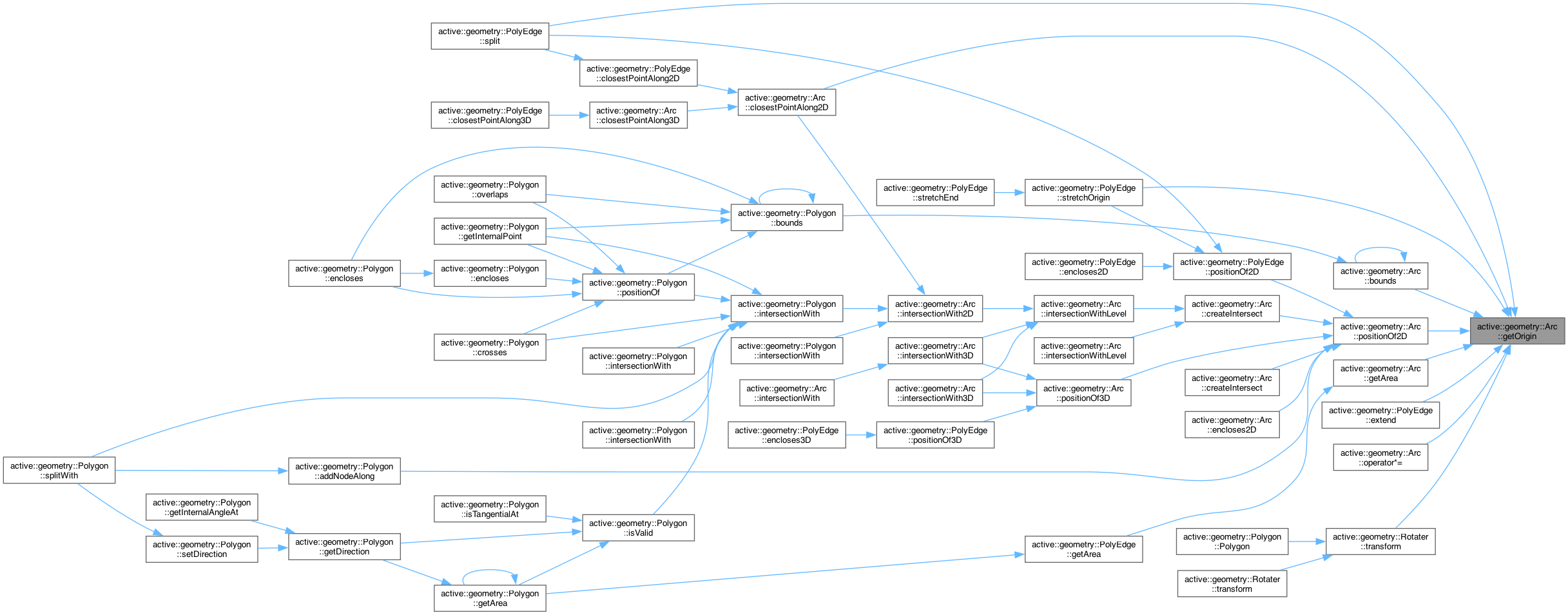

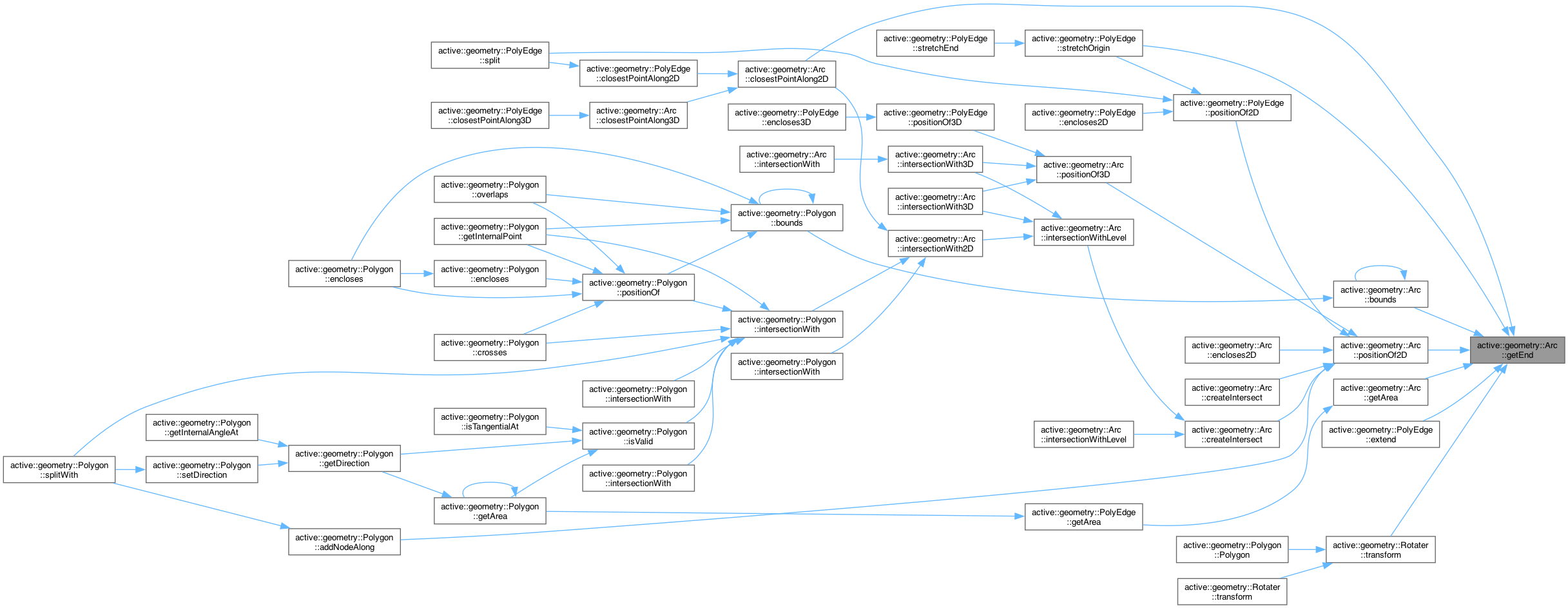

Here is the caller graph for this function:

◆ getPlane()

Plane Arc::getPlane ( ) const

Get the plane of the arc

Returns: The plane of the arc

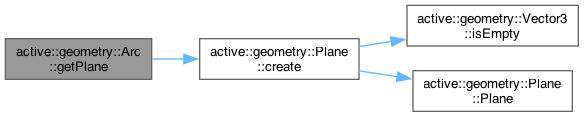

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initLevel()

void Arc::initLevel	(	Leveller &	level,
		double	prec = math::eps ) const

protected

Initialise a Leveller to transform the arc to flat plane

Parameters

level	The Leveller to be initialised
prec	The required precision

Here is the call graph for this function:

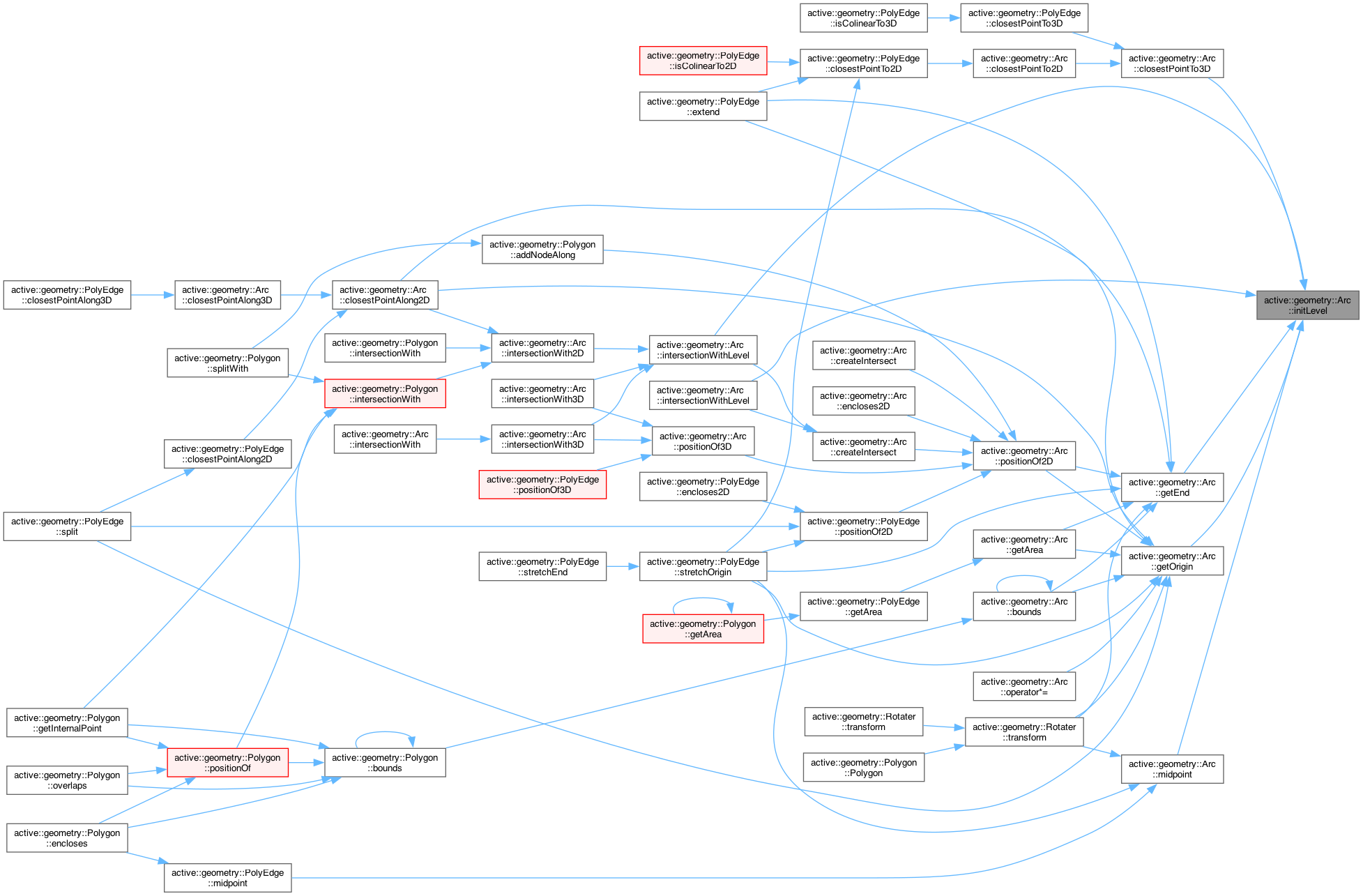

Here is the caller graph for this function:

◆ intersectionWith()

vertex_index Arc::intersectionWith	(	const Plane &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of an arc and plane in 3D

Parameters

ref	The reference plane
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

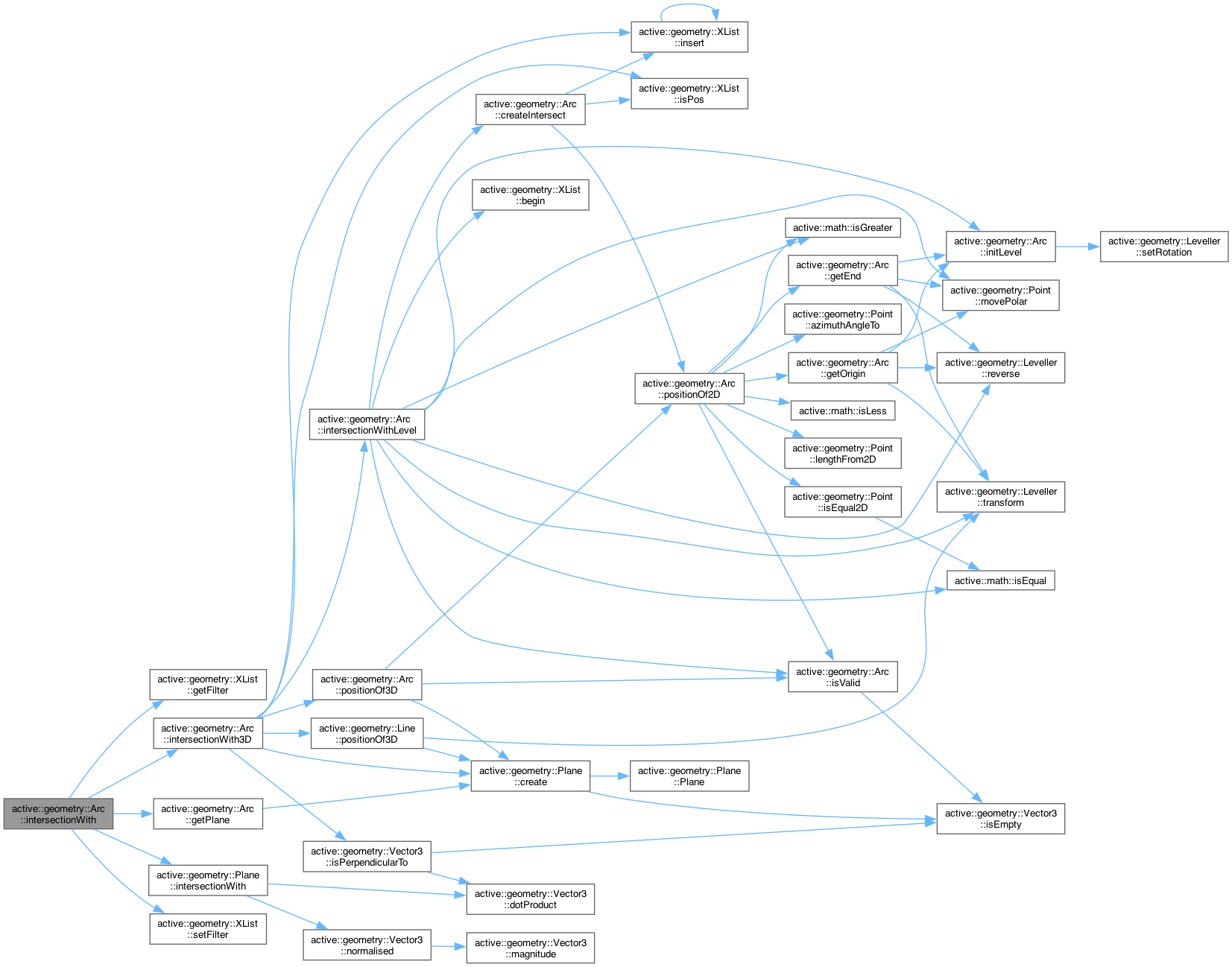

Here is the call graph for this function:

◆ intersectionWith2D() [1/2]

vertex_index Arc::intersectionWith2D	(	const Arc &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of two arcs in 2D

Parameters

ref	The reference arc
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

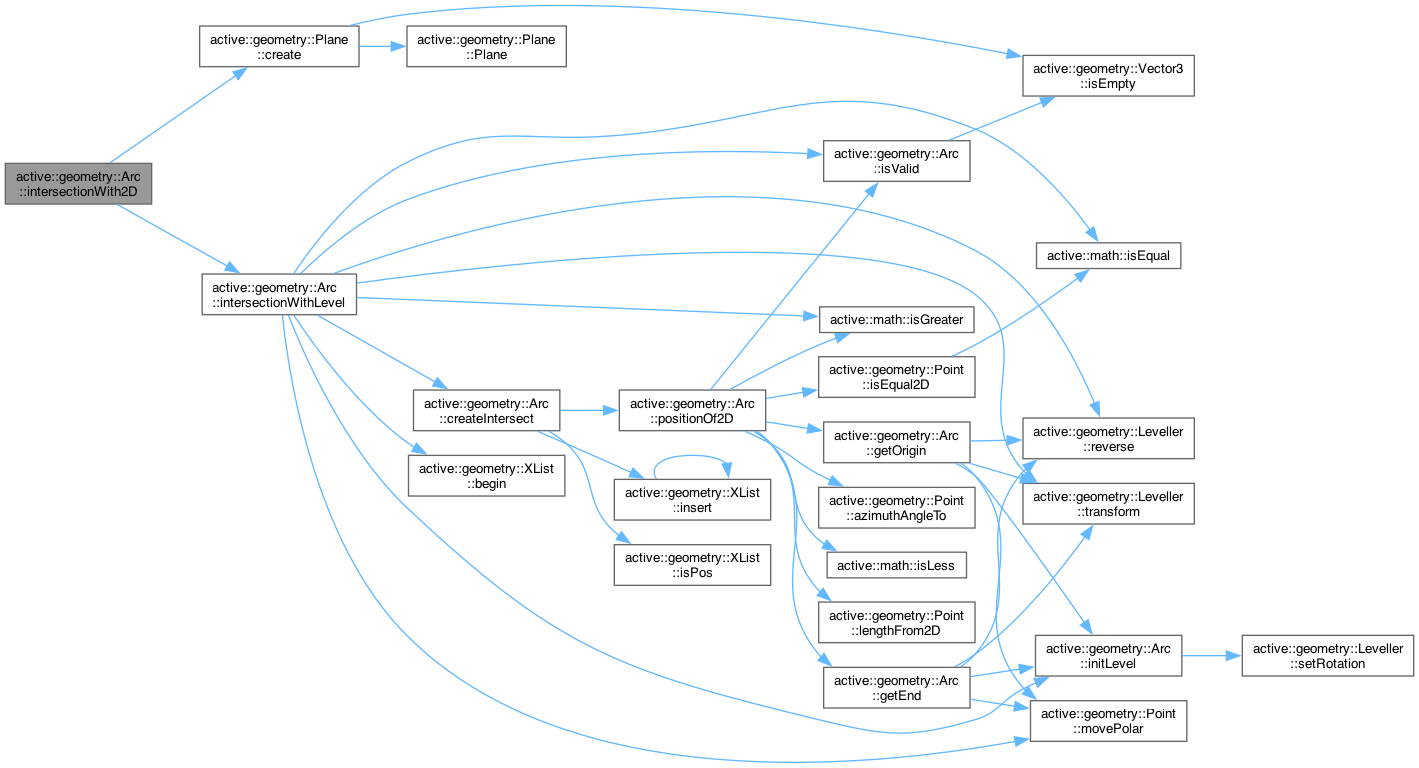

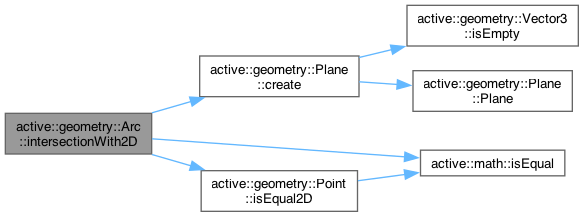

Here is the call graph for this function:

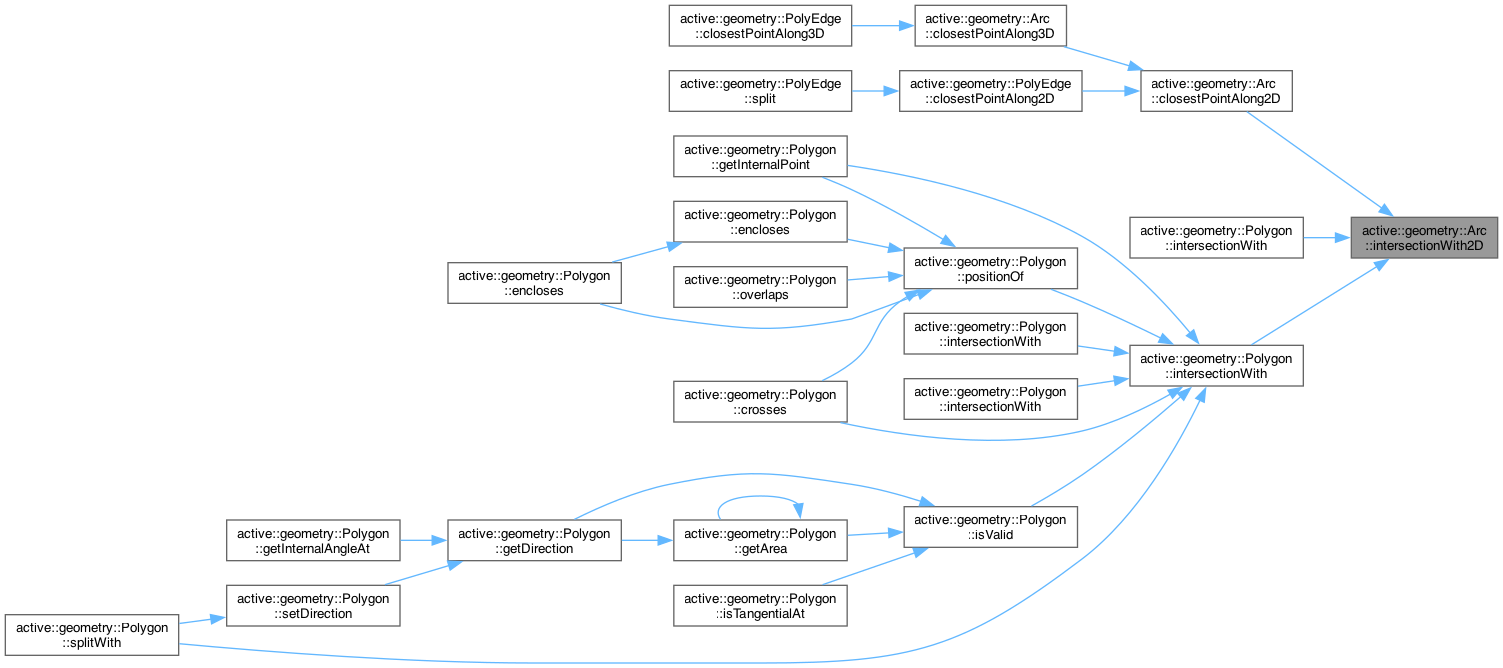

◆ intersectionWith2D() [2/2]

vertex_index Arc::intersectionWith2D	(	const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of an arc and line in 2D

Parameters

ref	The reference line
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersectionWith3D() [1/2]

vertex_index Arc::intersectionWith3D	(	const Arc &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of two arcs in 3D

Parameters

ref	The reference arc
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

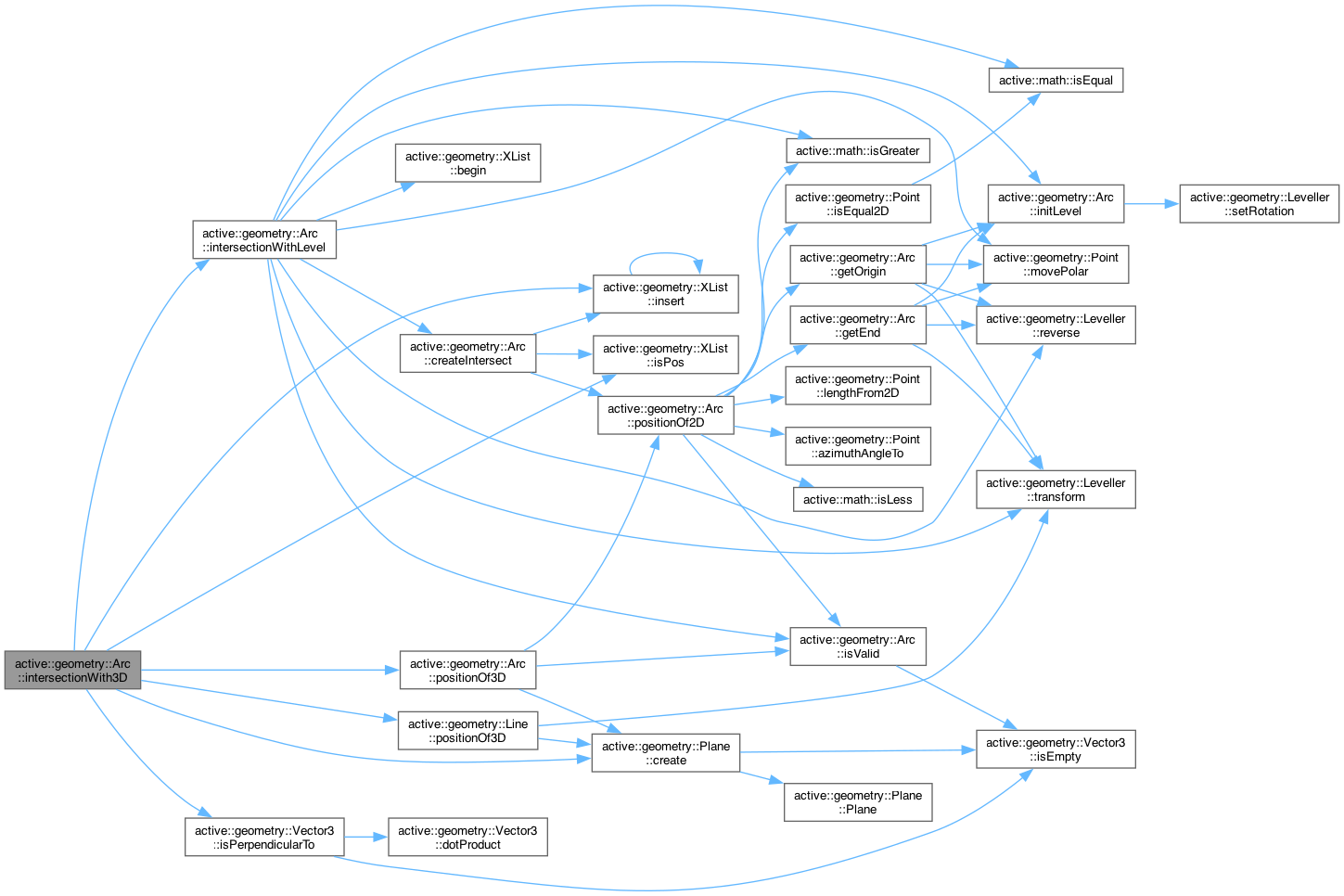

Here is the call graph for this function:

◆ intersectionWith3D() [2/2]

vertex_index Arc::intersectionWith3D	(	const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

Get the intersection point of an arc and line in 3D

Parameters

ref	The reference line
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

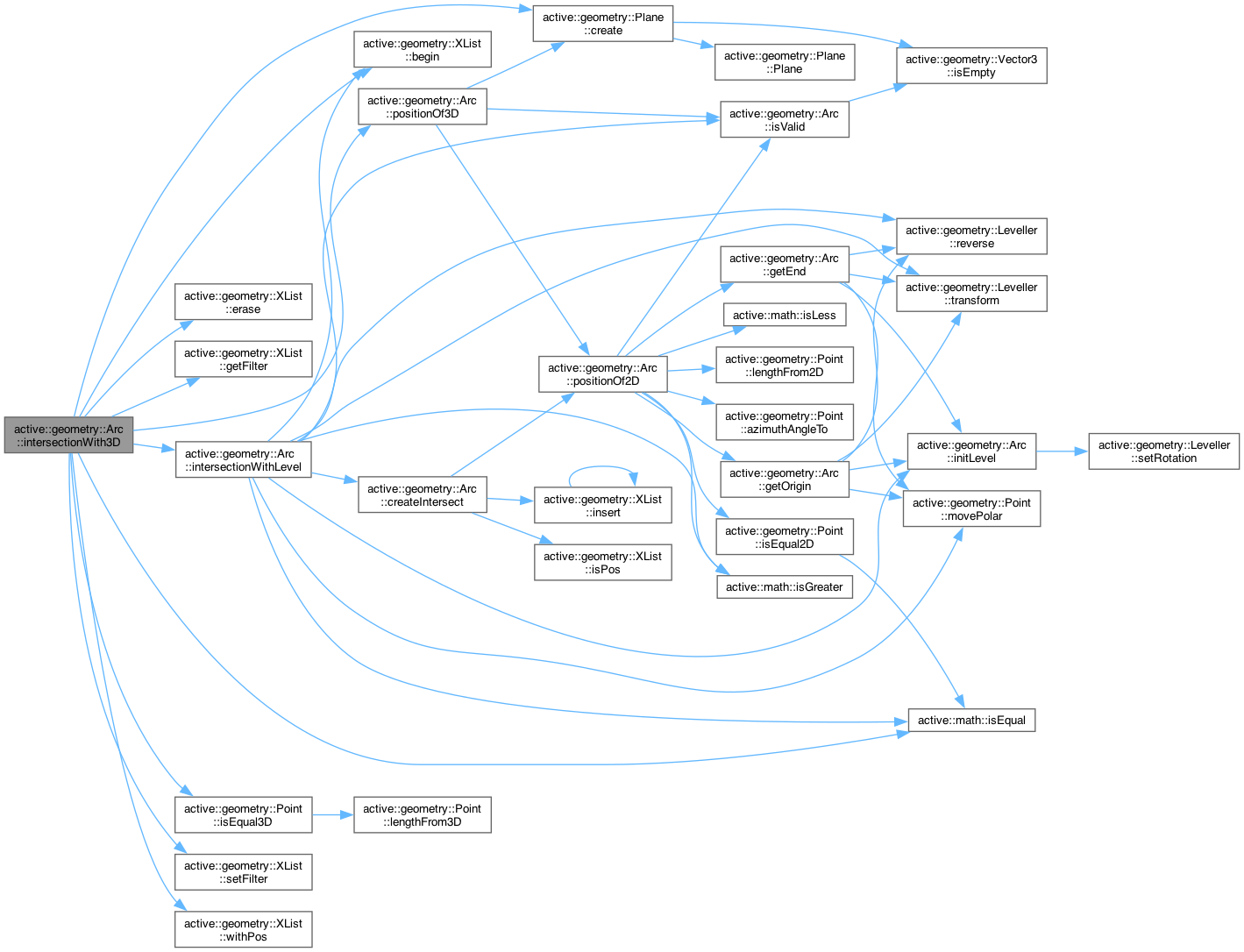

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersectionWithLevel() [1/2]

vertex_index Arc::intersectionWithLevel	(	const Arc &	ref,
		XList &	inter,
		double	prec = math::eps ) const

protected

Get the intersection point between two co-planar horizontal arcs

Parameters

ref	The reference arc
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

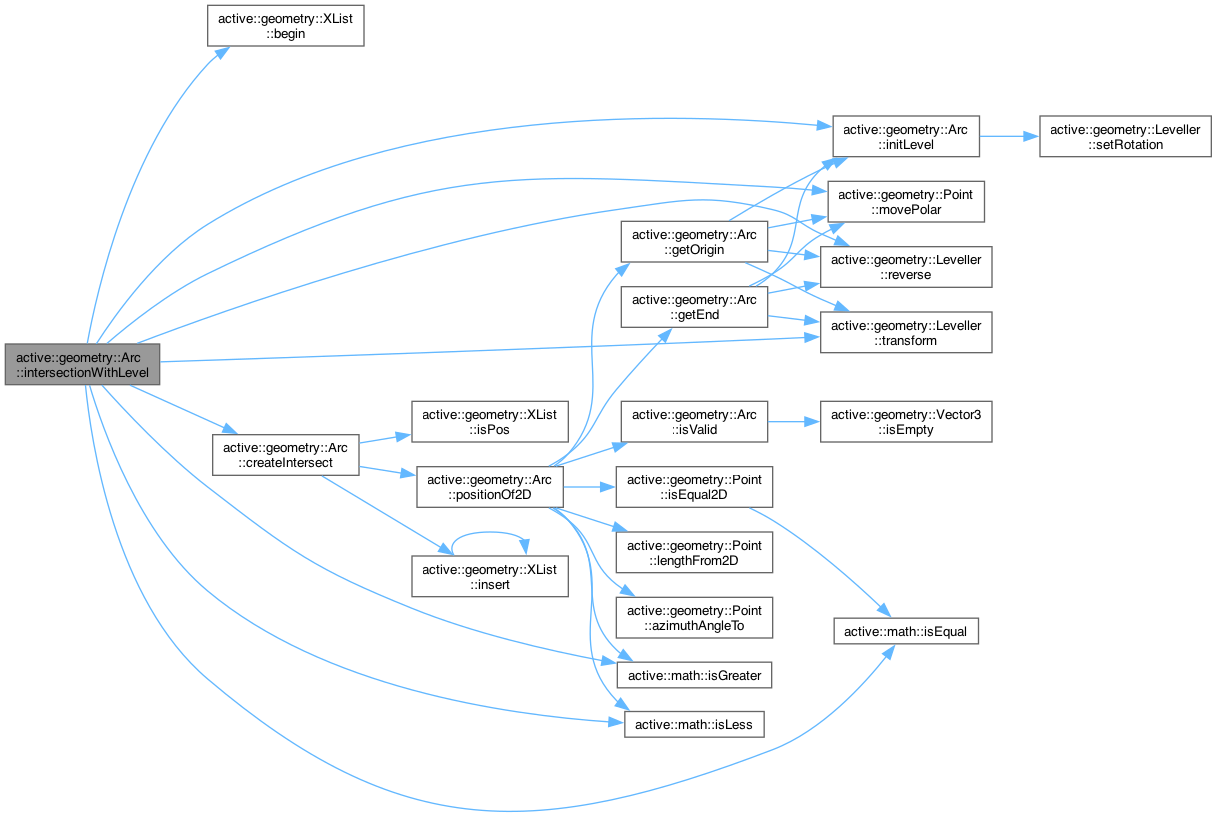

Here is the call graph for this function:

◆ intersectionWithLevel() [2/2]

vertex_index Arc::intersectionWithLevel	(	const Line &	ref,
		XList &	inter,
		double	prec = math::eps ) const

protected

Get the intersection point between a co-planar horizontal line and arc

Parameters

ref	The reference line
inter	The intersection list to populate
prec	The required precision

Returns: The number of intersections calculated

Here is the call graph for this function:

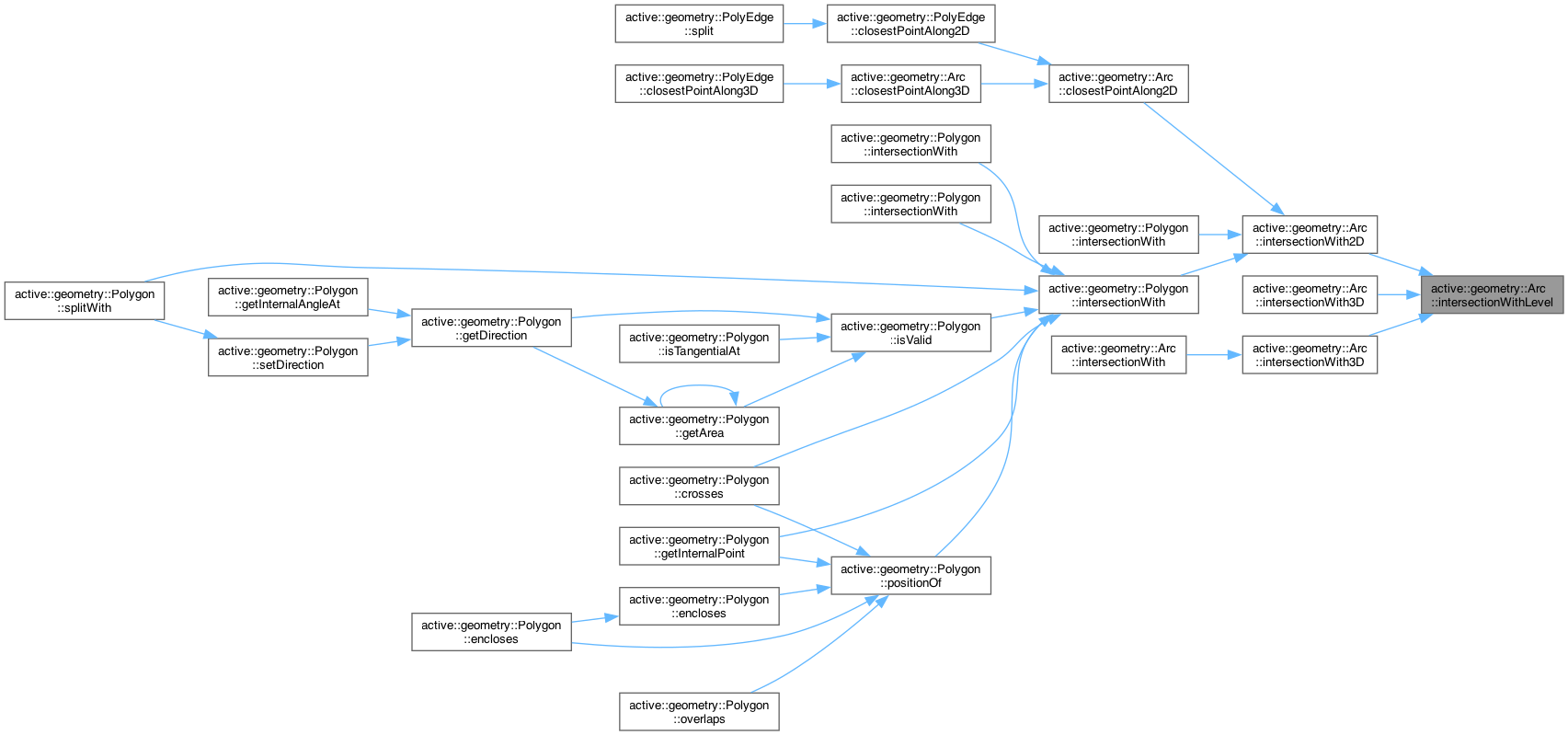

Here is the caller graph for this function:

◆ isColinearTo2D()

bool Arc::isColinearTo2D	(	const Arc &	ref,
		double	prec = math::eps ) const

Check if two arcs are colinear

Parameters

ref	The reference arc

Returns: True if the arcs are colinear

Here is the call graph for this function:

◆ isColinearTo3D()

bool Arc::isColinearTo3D	(	const Arc &	ref,
		double	prec = math::eps ) const

Check if two arcs are colinear

Parameters

ref	The reference arc

Returns: True if the arcs are colinear

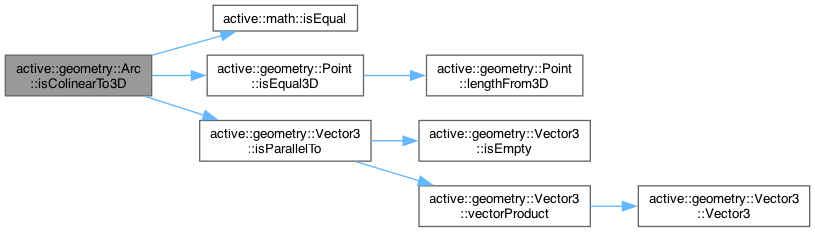

Here is the call graph for this function:

◆ isEqual2D()

bool Arc::isEqual2D	(	const Arc &	ref,
		double	prec = math::eps ) const

Determine if two arcs are equal in 2D

Parameters

ref	The arc to compare with this
prec	The required precision

Returns: True if the arcs are identical

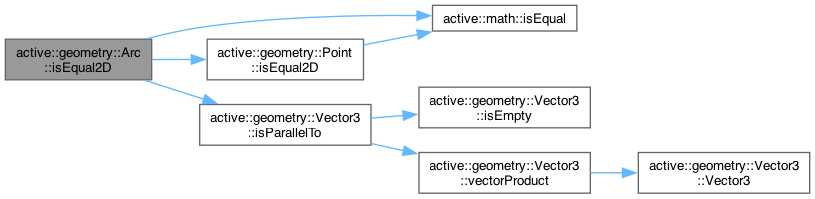

Here is the call graph for this function:

◆ isEqual3D()

bool Arc::isEqual3D	(	const Arc &	ref,
		double	prec = math::eps ) const

Determine if two arcs are equal

Parameters

ref	The arc to compare with this
prec	The required precision

Returns: True if the arcs are identical

Here is the call graph for this function:

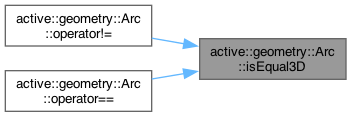

Here is the caller graph for this function:

◆ isParallelTo2D()

bool Arc::isParallelTo2D	(	const Arc &	ref,
		double	prec = math::eps ) const

Check if two arcs are parallel

Parameters

ref	The reference arc

Returns: True if they are parallel

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isParallelTo3D()

bool Arc::isParallelTo3D	(	const Arc &	ref,
		double	prec = math::eps ) const

Check if two arcs are concentric

Parameters

ref	The reference arc

Returns: True if the arcs are concentric

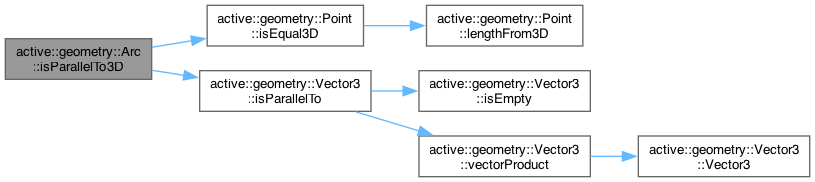

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isValid()

double Arc::isValid ( double prec = math::eps ) const

Determine if the arc is valid

Returns: True if the arc is valid

Here is the call graph for this function:

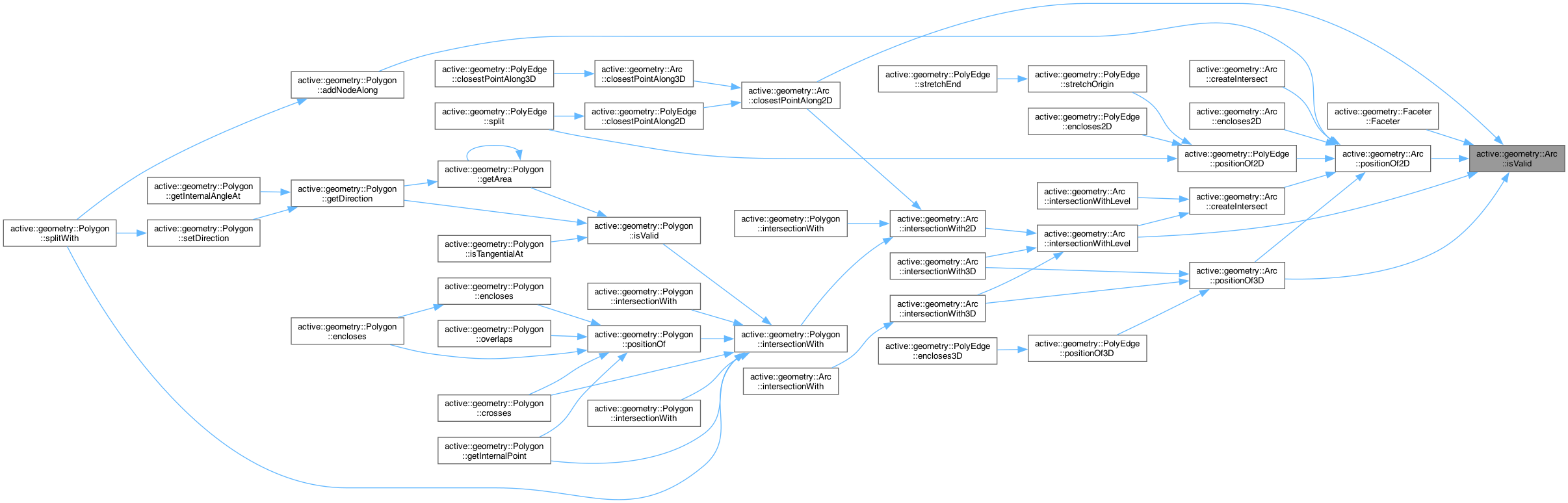

Here is the caller graph for this function:

◆ length2D()

double Arc::length2D ( ) const

Get the length of the arc in 2D

Returns: The 2D arc length

Here is the caller graph for this function:

◆ length3D()

double Arc::length3D ( ) const

Get the length of the arc

Returns: The length of the arc

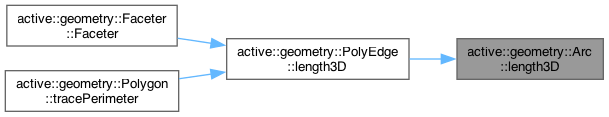

Here is the caller graph for this function:

◆ midpoint()

Point Arc::midpoint ( ) const

Get the midpoint of the arc

Returns: The midpoint of the arc

Here is the call graph for this function:

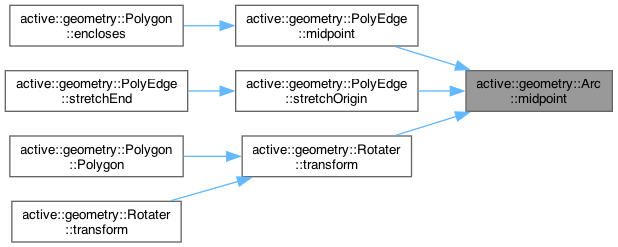

Here is the caller graph for this function:

◆ movePolar() [1/2]

void Arc::movePolar	(	double	len,
		double	angle )

Move the arc by the specified distance and angle

Parameters

len	The distance to move the arc
angle	The angle to move the arc along

Here is the call graph for this function:

◆ movePolar() [2/2]

void Arc::movePolar	(	double	len,
		double	azim,
		double	alt )

Move the arc by the specified distance and azimuth/altitude angles

Parameters

len	The distance to move the arc
azim	The azimuth angle to move the arc along
alt	The altitude angle to move the arc along

Here is the call graph for this function:

◆ operator!=()

bool active::geometry::Arc::operator!= ( const Arc & ref ) const

inline

Inequality operator

Parameters

ref	The line to compare with this

Returns: True if the lines are different

Here is the call graph for this function:

◆ operator*() [1/2]

Arc Arc::operator* ( const Matrix3x3 & matrix ) const

Multiplication operator

Parameters

matrix The matrix to multiply the arc by

Returns: A multiplied arc

Here is the call graph for this function:

◆ operator*() [2/2]

Arc Arc::operator* ( double scale ) const

Multiplication operator

Parameters

scale The amount to multiply the arc by

Returns: A multiplied arc

Here is the call graph for this function:

◆ operator*=() [1/2]

Arc & Arc::operator*= ( const Matrix3x3 & matrix )

Multiplication with assignment operator

Parameters

matrix The matrix to multiply the arc by

Returns: A reference to this

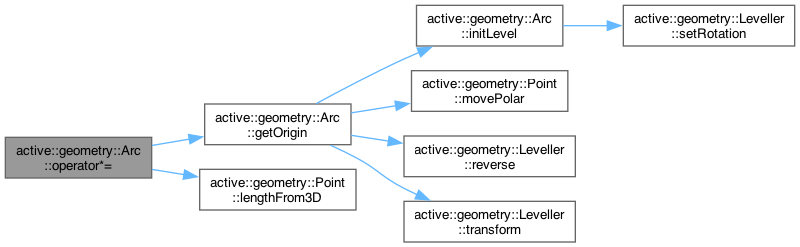

Here is the call graph for this function:

◆ operator*=() [2/2]

Arc & Arc::operator*= ( double scale )

Multiplication with assignment operator

Parameters

scale The amount to multiply the arc by

Returns: A reference to this

◆ operator+()

Arc Arc::operator+ ( const Point & offset ) const

Addition operator

Parameters

offset The amount to add to the arc

Returns: An offset arc

Here is the call graph for this function:

◆ operator+=()

Arc & Arc::operator+= ( const Point & offset )

Addition with assignment operator

Parameters

offset The amount to add to the arc

Returns: A reference to this

◆ operator-()

Arc Arc::operator- ( const Point & offset ) const

Subtraction operator

Parameters

offset The amount to subtract from the arc

Returns: An offset arc

Here is the call graph for this function:

◆ operator-=()

Arc & Arc::operator-= ( const Point & offset )

Subtraction with assignment operator

Parameters

offset The amount to subtract from the arc

Returns: A reference to this

◆ operator=()

Arc & Arc::operator= ( const Arc & source )

Assignment operator

Parameters

source The arc to be assigned to this

Returns: A reference to this arc

◆ operator==()

bool active::geometry::Arc::operator== ( const Arc & ref ) const

inline

Equality operator

Parameters

ref	The line to compare with this

Returns: True if the lines are identical

Here is the call graph for this function:

◆ positionOf2D()

Position Arc::positionOf2D	(	const Point &	ref,
		double	prec = math::eps ) const

Determine the relationship of a point to the arc in 2D

Parameters

ref	The point to test
prec	The required precision

Returns: The relative position of the point

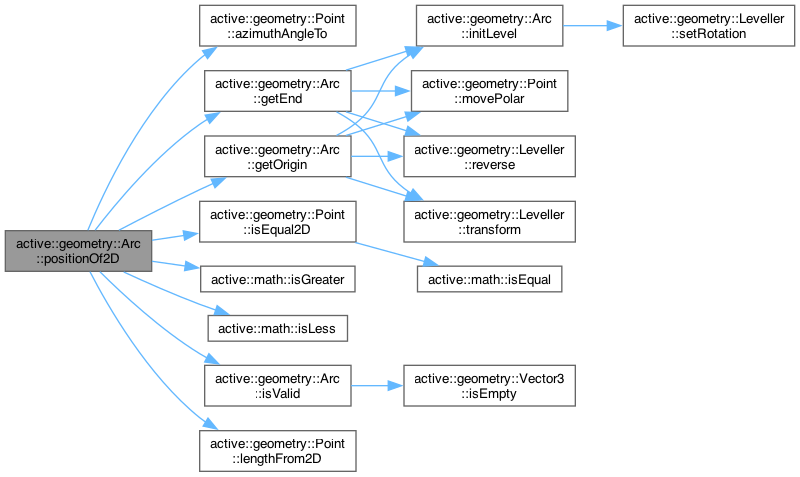

Here is the call graph for this function:

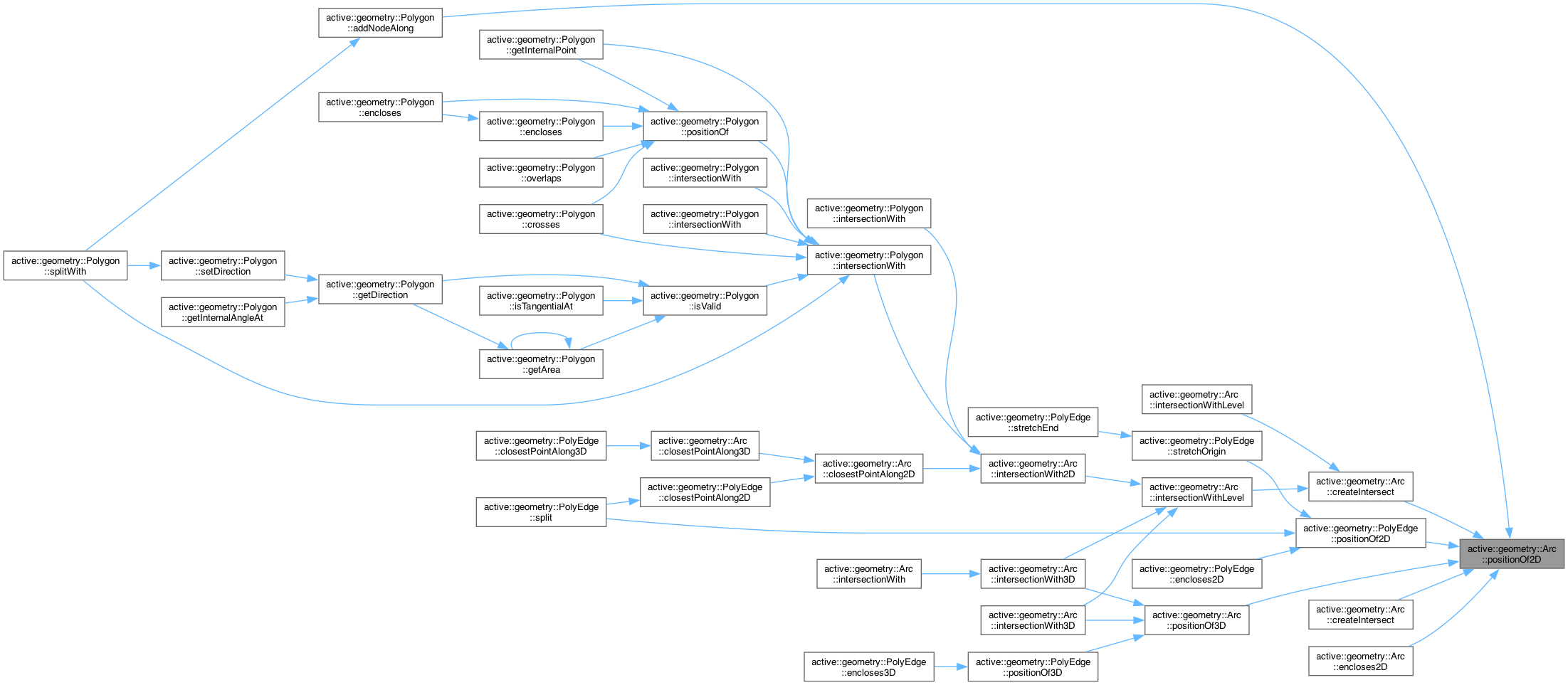

Here is the caller graph for this function:

◆ positionOf3D()

Position Arc::positionOf3D	(	const Point &	ref,
		double	prec = math::eps ) const

Determine the relationship of a point to the arc in 3D

Parameters

ref	The point to test
prec	The required precision

Returns: The relative position of the point

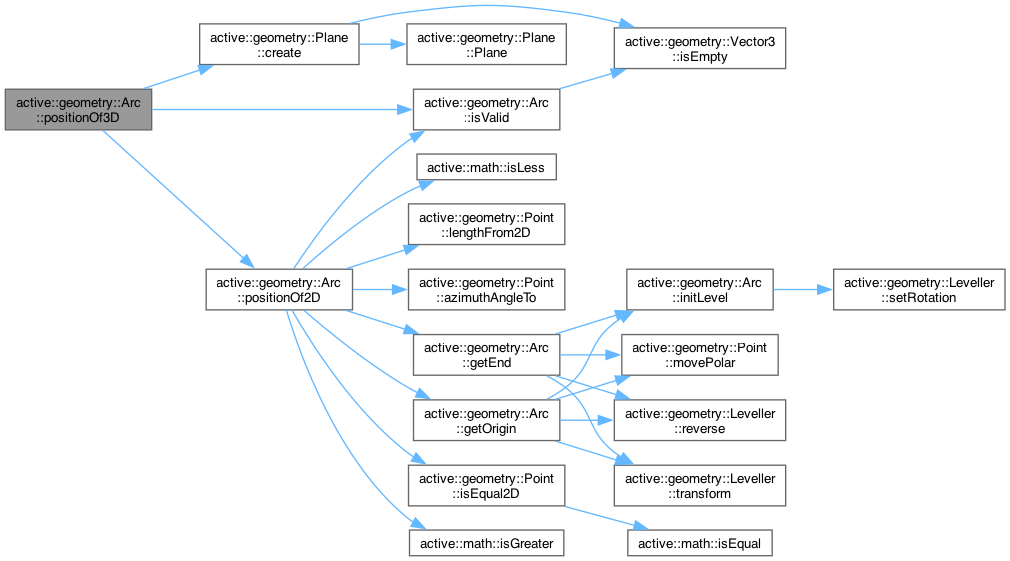

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setEndAngle()

void active::geometry::Arc::setEndAngle ( double end )

inline

Set the arc end angle

Parameters

end	The arc end angle

◆ spin()

void active::geometry::Arc::spin ( double rotAngle )

inline

Spin the arc about its axis by the specified angle

Parameters

rotAngle The rotation angle

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Arc.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Arc.cpp

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ Arc() [1/5]

◆ Arc() [2/5]

◆ Arc() [3/5]

◆ Arc() [4/5]

◆ Arc() [5/5]

Member Function Documentation

◆ bounds()

◆ clonePtr()

◆ closestPointAlong2D()

◆ closestPointAlong3D()

◆ closestPointTo2D()

◆ closestPointTo3D()

◆ createIntersect() [1/2]

◆ createIntersect() [2/2]

◆ encloses2D()

◆ encloses3D()

◆ expand()

◆ flip()

◆ getArea()

◆ getEnd()

◆ getEndAngle()

◆ getOrigin()

◆ getPlane()

◆ initLevel()

◆ intersectionWith()

◆ intersectionWith2D() [1/2]

◆ intersectionWith2D() [2/2]

◆ intersectionWith3D() [1/2]

◆ intersectionWith3D() [2/2]

◆ intersectionWithLevel() [1/2]

◆ intersectionWithLevel() [2/2]

◆ isColinearTo2D()

◆ isColinearTo3D()

◆ isEqual2D()

◆ isEqual3D()

◆ isParallelTo2D()

◆ isParallelTo3D()

◆ isValid()

◆ length2D()

◆ length3D()

◆ midpoint()

◆ movePolar() [1/2]

◆ movePolar() [2/2]

◆ operator!=()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator=()

◆ operator==()

◆ positionOf2D()

◆ positionOf3D()

◆ setEndAngle()

◆ spin()
