active::geometry::XPoint Class Reference

#include <XPoint.h>

Inheritance diagram for active::geometry::XPoint:

Collaboration diagram for active::geometry::XPoint:

Public Types
enum	Role { target = 0 , blade }
using	Unique = std::unique_ptr<XPoint>
	Unique pointer.
using	Shared = std::shared_ptr<XPoint>
	Shared pointer.
using	Option = std::optional<XPoint>
	Optional.
Public Types inherited from active::geometry::Point
using	Unique = std::unique_ptr<Point>
	Unique pointer.
using	Shared = std::shared_ptr<Point>
	Shared pointer.
using	Option = std::optional<Point>
	Optional.

Public Member Functions
	XPoint (const Point &source=Point(), Position oPos=Point::undefined, Position bPos=Point::undefined)
Point *	clonePtr () const
XPoint &	operator= (const Point &source)
auto	getInfo (Role role) const
auto	getPos (Role role) const
vertOption	getVertex (Role role) const
partOption	getPart (Role role) const
void	setInfo (Role role, const XInfo &info)
void	setPos (Role role, Position pos)
void	setVertex (Role role, vertOption vertexIndex)
void	setPart (Role role, partOption partIndex)
void	swapIntercept ()
Public Member Functions inherited from active::geometry::Point
	Point ()
	Point (const double &x, const double &y, const double &z=0.0)
	Point (const Point &source2D, double z)
virtual	~Point ()=default
virtual bool	operator== (const Point &ref) const
virtual bool	operator!= (const Point &ref) const
virtual bool	operator< (const Point &ref) const
Point &	operator= (const Point &source)
virtual Point	operator+ (const Point &offset) const
virtual Point &	operator+= (const Point &offset)
virtual Point	operator- (const Point &offset) const
virtual Point &	operator-= (const Point &offset)
virtual Point	operator* (const double &mult) const
virtual Point	operator* (const Matrix3x3 &matrix) const
virtual Point	operator* (const Matrix4x4 &matrix) const
virtual Point &	operator*= (const double &mult)
virtual Point &	operator*= (const Matrix3x3 &matrix)
virtual Point &	operator*= (const Matrix4x4 &matrix)
virtual Point	operator/ (const double &mult) const
virtual Point &	operator/= (const double &mult)
virtual bool	isEqual2D (const Point &ref, double prec=math::eps) const
virtual bool	isEqual3D (const Point &ref, double prec=math::eps) const
virtual double	lengthFrom2D (const Point &ref) const
virtual double	lengthFrom3D (const Point &ref) const
Point	rounded2D (double prec=math::eps) const
Point	rounded3D (double prec=math::eps) const
double	azimuthAngleTo (const Point &ref) const
double	altitudeAngleTo (const Point &ref) const
Point &	movePolar (double len, double angle)
Point &	movePolar (double len, double azim, double alt)
Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Friends
class	XList

Additional Inherited Members
Public Attributes inherited from active::geometry::Point
double	x
	X coordinate.
double	y
	Y coordinate.
double	z
	Z coordinate.

Detailed Description

Class to represent an intersection point

NB: The word "intersection" is generally abbreviated to "X" in class names, e.g. XInfo, XList etc. An intersection in this context is always between just 2 geometric components, e.g. a line and arc. Each component is nominally considered to have a role in the intersection – as if one component is cutting the other – namely blade (the cutting component) and target (the component to be cut). Every function calculating an intersection will clearly identity the role of each component, as will the XList collecting the intersections. Every intersection point will contain 2 XInfo objects that describe its relationship to the blade and target (see the docs for XInfo).

Constructor & Destructor Documentation

XPoint()

XPoint::XPoint	(	const Point &	source = Point(),
		Position	oPos = Point::undefined,
		Position	bPos = Point::undefined )

Constructor

Parameters

source	The intersection point
oPos	The relationship of the point to the target
bPos	The relationship of the point to the blade

Here is the caller graph for this function:

Member Function Documentation

clonePtr()

Point * active::geometry::XPoint::clonePtr ( ) const

inlinevirtual

Clone method

Returns

A duplicate of this target

Reimplemented from active::geometry::Point.

Here is the call graph for this function:

getInfo()

auto active::geometry::XPoint::getInfo ( Role role ) const

inline

Get relationship of the intersecting point to the specified part

Parameters

role	The object role

Returns

The relative point position

getPart()

partOption active::geometry::XPoint::getPart ( Role role ) const

inline

Get the part index of an intersecting object

Parameters

role	The object role

Returns

The part index of an intersecting object

getPos()

auto active::geometry::XPoint::getPos ( Role role ) const

inline

Get the position of the intersection relative to the specified part

Parameters

role	The object role

Returns

The position of the intersection relative to the specified part

getVertex()

vertOption active::geometry::XPoint::getVertex ( Role role ) const

inline

Get the vertex index of an intersecting object

Parameters

role	The object role

Returns

The vertex index of an intersecting object

operator=()

XPoint & XPoint::operator=

(

const Point &

source

)

Assignment operator

Parameters

source

The object to copy

Returns

A reference to this

Here is the call graph for this function:

setInfo()

void active::geometry::XPoint::setInfo ( Role role, const XInfo & info )

inline

Set the target intersection specs

Parameters

role	The target part
info	The target intersection specs

setPart()

void active::geometry::XPoint::setPart ( Role role, partOption partIndex )

inline

Set the ID of the intersecting blade object

Parameters

role	The object role
partIndex	The part index of an intersecting object

Here is the caller graph for this function:

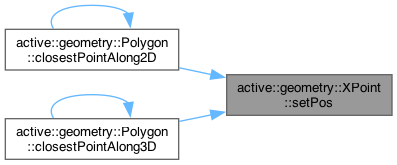

setPos()

void active::geometry::XPoint::setPos ( Role role, Position pos )

inline

Set the position of the intersection relative to the target

Parameters

role	The object role
pos	The position of the intersection relative to the target

Here is the caller graph for this function:

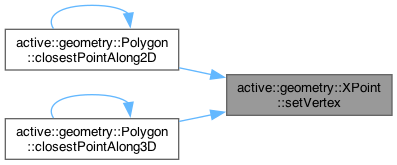

setVertex()

void active::geometry::XPoint::setVertex ( Role role, vertOption vertexIndex )

inline

Set the ID of the intersecting target segment

Parameters

role	The object role
vertexIndex	The vertex index of an intersecting object

Here is the caller graph for this function:

swapIntercept()

void XPoint::swapIntercept

(

)

Swap the blade and target intercepts

---

The documentation for this class was generated from the following files:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/XPoint.h
• /Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/XPoint.cpp
