Class to represent a plane. More...

#include <Plane.h>

Public Types
using	Unique = std::unique_ptr<Plane>
	Unique pointer.

using	Shared = std::shared_ptr<Plane>
	Shared pointer.

using	Option = std::optional<Plane>
	Optional.

Public Member Functions
	Plane ()

	Plane (const Vector3 &norm)

virtual Plane	operator+ (const Point &offset)

virtual Plane &	operator+= (const Point &offset)

virtual Plane	operator* (const double &mult) const

virtual Plane	operator* (const Matrix3x3 &matrix) const

virtual Plane	operator* (const Matrix4x4 &matrix) const

virtual Plane &	operator*= (const double &mult)

virtual Plane &	operator*= (const Matrix3x3 &matrix)

virtual Plane &	operator*= (const Matrix4x4 &matrix)

const Vector3 &	getNormal () const

double	getOffset () const

Position	positionOf (const Point &ref, double prec=math::eps) const

Point	closestPointTo (const Point &ref) const

double	lengthTo (const Point &ref) const

double	heightAt (const Point &ref, double prec=math::eps) const

XPoint::Option	intersectionWith (const Line &ref, double prec=math::eps) const

Line::Option	intersectionWith (const Plane &ref, double prec=math::eps) const

Point::Option	intersectionWith (const Plane &ref1, const Plane &ref2) const

bool	isParallelTo (const Plane &ref, double prec=math::eps) const

bool	cutsThrough (const Box &ref, double prec=math::eps) const

bool	setNormal (const Vector3 &vect)

void	setOffset (double offset)

Static Public Member Functions
static Option	create (double offset, const Vector3 &norm)

static Option	create (const Point &point, const Vector3 &norm)

static Option	create (const Point &p1, const Point &p2, const Point &p3)

Detailed Description

Class to represent a plane.

Constructor & Destructor Documentation

◆ Plane() [1/2]

Plane::Plane ( )

Default constructor

Here is the caller graph for this function:

◆ Plane() [2/2]

Plane::Plane ( const Vector3 & norm )

Constructor

Parameters

norm	The plane normal

Here is the call graph for this function:

Member Function Documentation

◆ closestPointTo()

Point Plane::closestPointTo ( const Point & ref ) const

Get the point on the plane closest to the reference point

Parameters

ref	The reference point

Returns: The closest point (perpendicular to the plane)

Here is the call graph for this function:

◆ create() [1/3]

Plane::Option Plane::create	(	const Point &	p1,
		const Point &	p2,
		const Point &	p3 )

static

Create a plane from three points

Parameters

p1	First point on the plane
p2	Second point on the plane
p3	Third point on the plane

Returns: An unique_ptr to a plane, or 0 if invalid

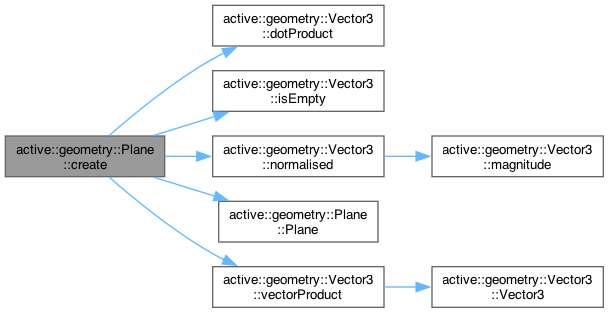

Here is the call graph for this function:

◆ create() [2/3]

Plane::Option Plane::create	(	const Point &	point,
		const Vector3 &	norm )

static

Create a new plane from a point and normal

Parameters

point	A point on the plane
norm	Normal to the plane

Returns: An unique_ptr to a plane, or 0 if invalid

Here is the call graph for this function:

◆ create() [3/3]

Plane::Option Plane::create	(	double	offset,
		const Vector3 &	norm )

static

Create a new plane from a normal and offset from the origin

Parameters

offset	Distance along normal from the origin to the plane
norm	Normal to the plane

Returns: An unique_ptr to a plane, or 0 if invalid

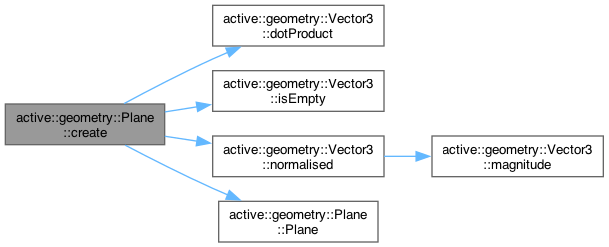

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cutsThrough()

bool Plane::cutsThrough	(	const Box &	ref,
		double	prec = math::eps ) const

Determine whether this plane cuts through the specified volume

Parameters

ref	The volume to compare
prec	The required precision

Returns: True if the plane cuts through the specified volume

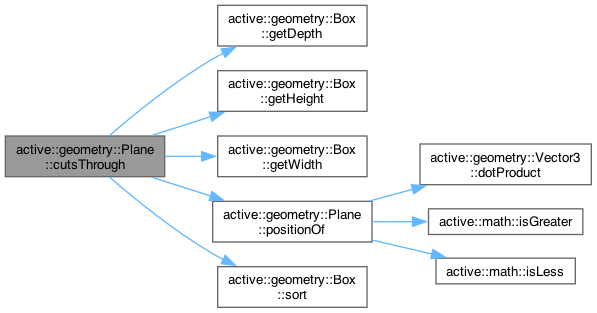

Here is the call graph for this function:

◆ getNormal()

const Vector3 & Plane::getNormal ( ) const

Get the normal to the plane

Returns: The normal to the plane

Here is the caller graph for this function:

◆ getOffset()

double Plane::getOffset ( ) const

Get the offset from the origin to the plane along the normal

Returns: The offset from the origin to the plane along the normal

◆ heightAt()

double Plane::heightAt	(	const Point &	ref,
		double	prec = math::eps ) const

Get the height of a point projected vertically onto the plane

Parameters

ref	The reference point

Returns: The height of the point projected vertically onto the plane

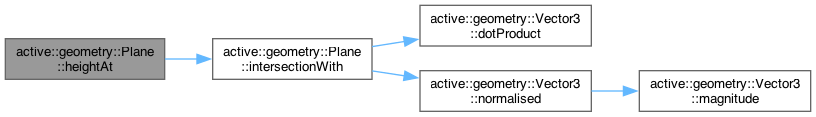

Here is the call graph for this function:

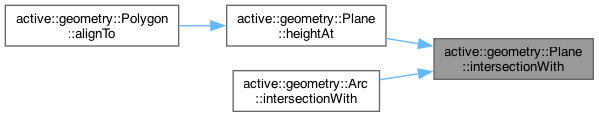

Here is the caller graph for this function:

◆ intersectionWith() [1/3]

XPoint::Option Plane::intersectionWith	(	const Line &	ref,
		double	prec = math::eps ) const

Get the point of intersection between a line and the plane

Parameters

ref	The reference line
prec	The required precision

Returns: The point of intersection between the line and plane

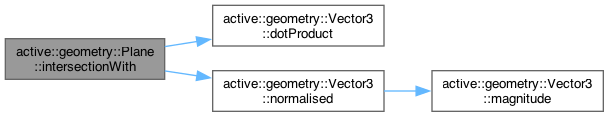

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersectionWith() [2/3]

Line::Option Plane::intersectionWith	(	const Plane &	ref,
		double	prec = math::eps ) const

Get the vector describing the intersection of two planes

Parameters

ref	The reference plane
prec	The required precision

Returns: The line along which the planes intersect (or 0 if they are parallel)

Here is the call graph for this function:

◆ intersectionWith() [3/3]

Point::Option active::geometry::Plane::intersectionWith	(	const Plane &	ref1,
		const Plane &	ref2 ) const

Get the point at the intersection of three planes

Parameters

ref1	The first plane
ref2	The second plane

Returns: The point at which the planes intersect

◆ isParallelTo()

bool Plane::isParallelTo	(	const Plane &	ref,
		double	prec = math::eps ) const

Determine whether this plane is parallel to another

Parameters

ref	The plane to compare
prec	The required precision

Returns: True if the planes are parallel

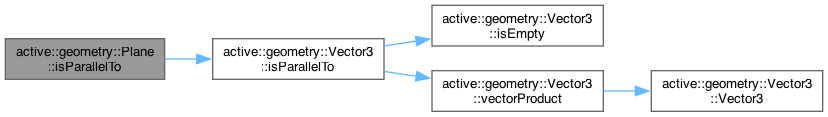

Here is the call graph for this function:

◆ lengthTo()

double Plane::lengthTo ( const Point & ref ) const

Get the minimum length from a point to the plane

Parameters

ref	The reference point

Returns: The minimum distance between the point and this plane

Here is the call graph for this function:

◆ operator*() [1/3]

Plane Plane::operator* ( const double & mult ) const

virtual

Multiplication operator

Parameters

mult	The factor to multiply this by

Returns: The result of the multiplication of this and the specified factor

◆ operator*() [2/3]

Plane Plane::operator* ( const Matrix3x3 & matrix ) const

virtual

Multiplication operator

Parameters

matrix The matrix to multiply this by

Returns: The result of the multiplication

◆ operator*() [3/3]

Plane Plane::operator* ( const Matrix4x4 & matrix ) const

virtual

Multiplication operator

Parameters

matrix The matrix to multiply this by

Returns: The result of the multiplication

◆ operator*=() [1/3]

Plane & Plane::operator*= ( const double & mult )

virtual

Multiplication and assignment operator

Parameters

mult	The factor to multiply this by

Returns: A reference to this

◆ operator*=() [2/3]

Plane & Plane::operator*= ( const Matrix3x3 & matrix )

virtual

Multiplication and assignment operator

Parameters

matrix The matrix to multiply this by

Returns: A reference to this

◆ operator*=() [3/3]

Plane & Plane::operator*= ( const Matrix4x4 & matrix )

virtual

Multiplication and assignment operator

Parameters

matrix The matrix to multiply this by

Returns: A reference to this

◆ operator+()

Plane Plane::operator+ ( const Point & offset )

virtual

Addition operator

Parameters

offset The amount to offset this by

Returns: The result of the addition

◆ operator+=()

Plane & Plane::operator+= ( const Point & offset )

virtual

Addition and assignment operator

Parameters

offset The amount to offset this by

Returns: A reference to this

◆ positionOf()

Position Plane::positionOf	(	const Point &	ref,
		double	prec = math::eps ) const

Get the position of a point with respect to the plane

Parameters

ref	The reference point
prec	The required precision

Returns: The relative point position

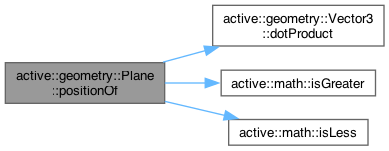

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNormal()

bool Plane::setNormal ( const Vector3 & vect )

Set the normal to the plane

Parameters

vect	The normal to the plane

Returns: True if the normal was applied (false = normal invalid)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOffset()

void active::geometry::Plane::setOffset ( double offset )

inline

Set the offset to the plane

Parameters

offset The offset to the plane

The documentation for this class was generated from the following files:
