active::geometry::Vector3 Class Reference

A 1x3 vector class. More...

#include <Vector3.h>

Public Types
using	Unique = std::unique_ptr<Vector3>
	Unique pointer.
using	Shared = std::shared_ptr<Vector3>
	Shared pointer.
using	Option = std::optional<Vector3>
	Optional.

Public Member Functions
	Vector3 ()
	Vector3 (double x, double y, double z=0.0)
	Vector3 (const Point &source)
	Vector3 (const Line &source)
	Vector3 (const Vector3 &source)
virtual	~Vector3 ()=default
Vector3 &	operator= (const Point &source)
Vector3 &	operator= (const Line &source)
Vector3 &	operator= (const Vector3 &source)
Vector3	operator+ (const Vector3 &vect) const
Vector3 &	operator+= (const Vector3 &vect)
Vector3	operator- (const Vector3 &vect) const
Vector3 &	operator-= (const Vector3 &vect)
Vector3	operator* (double scale) const
Vector3	operator* (const Matrix3x3 &matrix) const
Vector3	operator* (const Matrix4x4 &matrix) const
Vector3 &	operator*= (double scale)
Vector3 &	operator*= (const Matrix3x3 &matrix)
Vector3 &	operator*= (const Matrix4x4 &matrix)
double &	operator[] (int row)
const double	operator[] (int row) const
	operator Point () const
double	azimuthAngle () const
double	altitudeAngle () const
bool	isParallelTo (const Vector3 &ref, double prec=math::eps) const
bool	isPerpendicularTo (const Vector3 &ref, double prec=math::eps) const
bool	isSameSense (const Vector3 &ref, double prec=math::eps) const
bool	isEmpty (double prec=math::eps) const
bool	isZAxis (double prec=math::eps) const
bool	isXyPlane (double prec=math::eps) const
double	dotProduct (const Vector3 &ref) const
Vector3	vectorProduct (const Vector3 &ref) const
double	magnitude () const
double	modulus () const
Vector3	normalised () const
double	angleTo (const Vector3 &ref) const

Detailed Description

A 1x3 vector class.

Constructor & Destructor Documentation

Vector3() [1/5]

Vector3::Vector3

(

)

Constructor

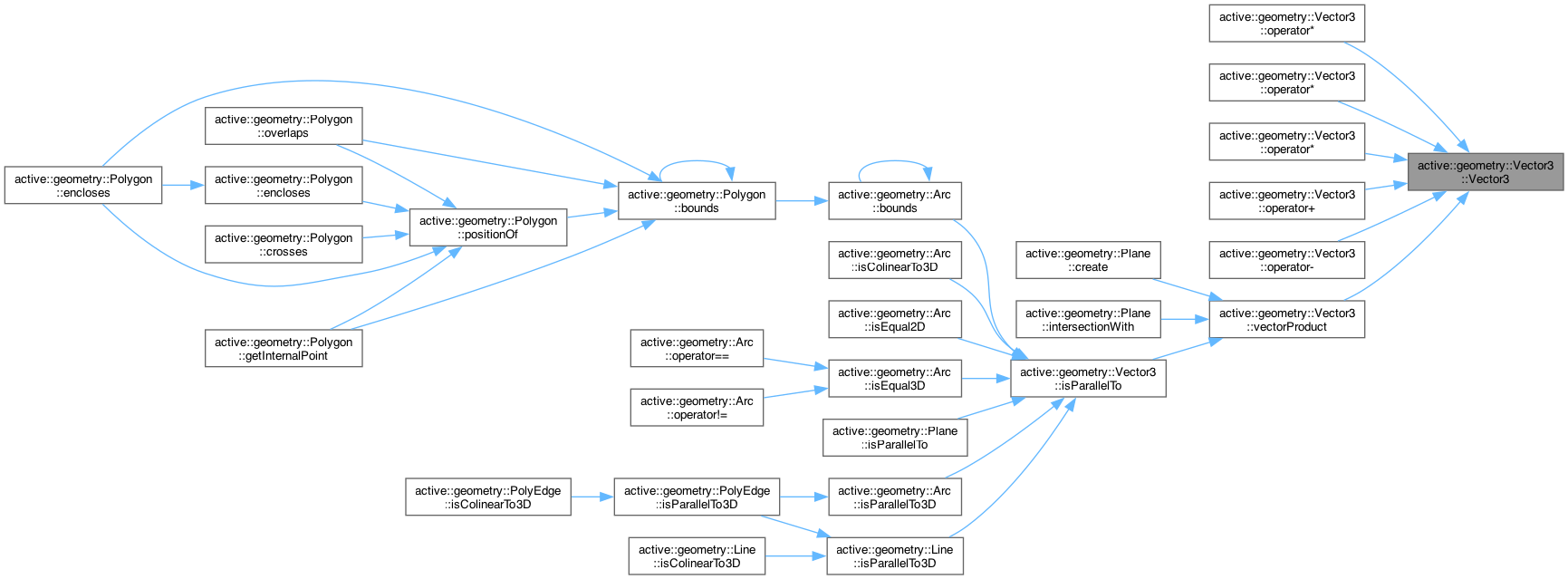

Here is the caller graph for this function:

Vector3() [2/5]

Vector3::Vector3	(	double	x,
		double	y,
		double	z = 0.0 )

Constructor

Parameters

x	X coefficient
y	Y coefficient
z	Z coefficient

Vector3() [3/5]

Vector3::Vector3

(

const Point &

source

)

Constructor

Parameters

source

A point to construct the vector from

Vector3() [4/5]

Vector3::Vector3

(

const Line &

source

)

Constructor

Parameters

source

A line to construct the vector from

Vector3() [5/5]

Vector3::Vector3

(

const Vector3 &

source

)

Copy constructor

Parameters

source

The object to copy

~Vector3()

virtual active::geometry::Vector3::~Vector3 ( )

virtualdefault

Destructor

Member Function Documentation

altitudeAngle()

double Vector3::altitudeAngle

(

)

const

Get the altitude angle of the vector

Returns

The altitude angle

Here is the call graph for this function:

Here is the caller graph for this function:

angleTo()

double Vector3::angleTo

(

const Vector3 &

ref

)

const

Get the angle between a vector and this

Parameters

ref

A vector

Returns

The angle between the vector and this

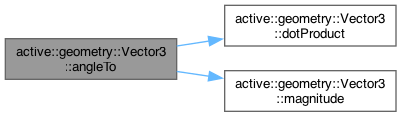

Here is the call graph for this function:

azimuthAngle()

double Vector3::azimuthAngle

(

)

const

Get the azimuth angle of the vector

Returns

The azimuth angle

Here is the call graph for this function:

Here is the caller graph for this function:

dotProduct()

double Vector3::dotProduct

(

const Vector3 &

ref

)

const

Get the dot product of two vectors

Parameters

ref

A vector

Returns

The dot product

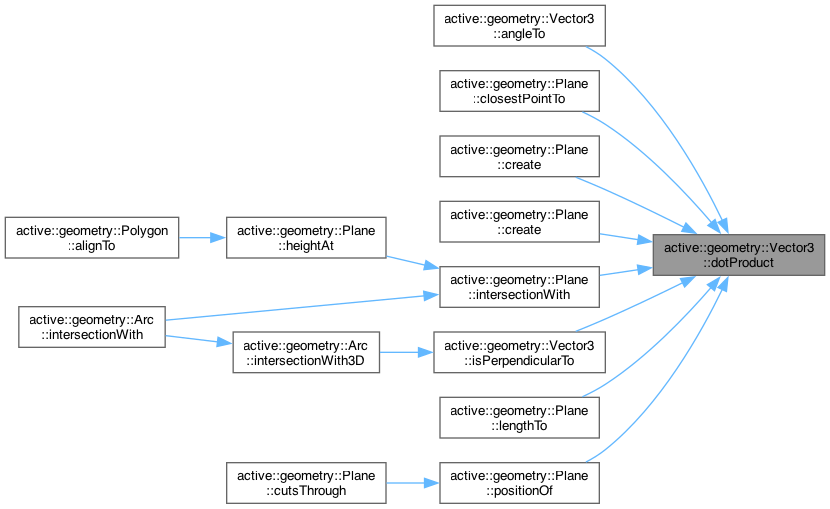

Here is the caller graph for this function:

isEmpty()

bool Vector3::isEmpty

(

double

prec = math::eps

)

const

Determine if the vector is empty (all null values)

Parameters

prec	The precision of the test

Returns

True if the vector is empty

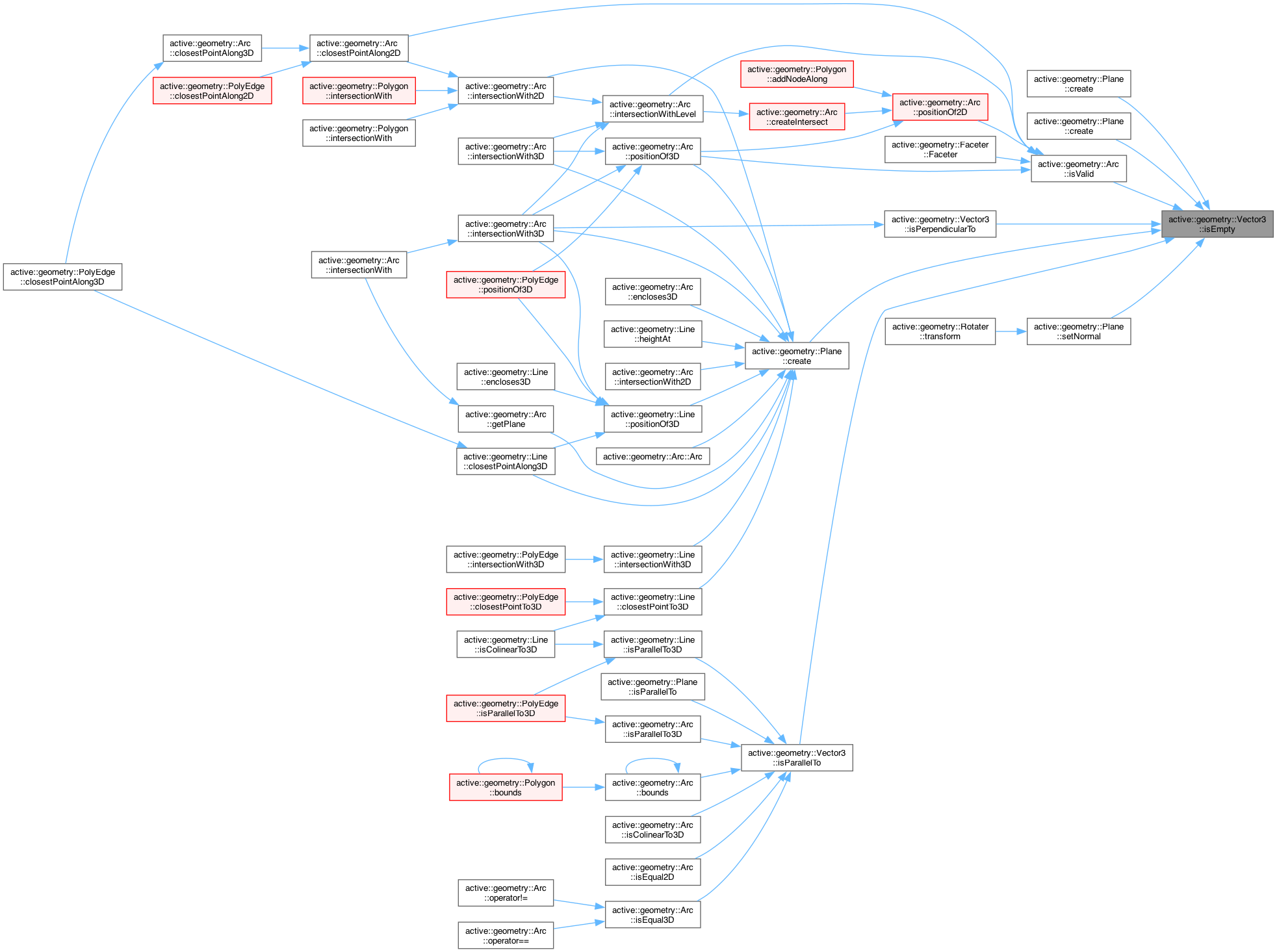

Here is the caller graph for this function:

isParallelTo()

bool Vector3::isParallelTo	(	const Vector3 &	ref,
		double	prec = math::eps ) const

Determine of a vector is parallel to this

Parameters

ref	A vector
prec	The precision of the test

Returns

True if the vector is parallel to this

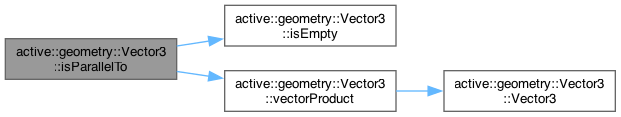

Here is the call graph for this function:

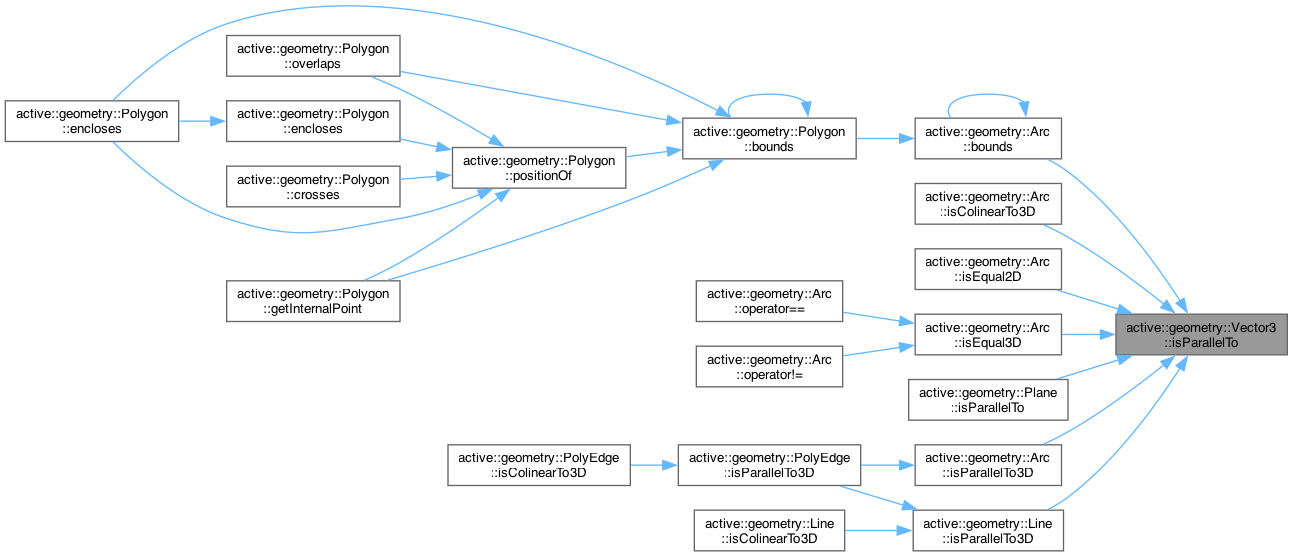

Here is the caller graph for this function:

isPerpendicularTo()

bool Vector3::isPerpendicularTo	(	const Vector3 &	ref,
		double	prec = math::eps ) const

Determine if a vector is perpendicular to this

Parameters

ref	A vector
prec	The precision of the test

Returns

True if the vector is perpendicular to this

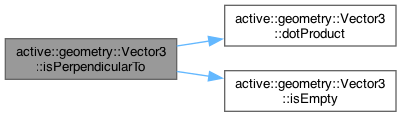

Here is the call graph for this function:

Here is the caller graph for this function:

isSameSense()

bool Vector3::isSameSense	(	const Vector3 &	ref,
		double	prec = math::eps ) const

Determine if a vector has the same sense as this

Parameters

ref	A vector
prec	The precision of the test

Returns

True if the vector has the same sense as this

isXyPlane()

bool active::geometry::Vector3::isXyPlane ( double prec = math::eps ) const

inline

Determine if the vector is in the plane of the x/y axis

Returns

True if the vector is in the plane of the x/y axis

isZAxis()

bool active::geometry::Vector3::isZAxis ( double prec = math::eps ) const

inline

Determine if the vector is along the z axis

Returns

True if the vector is along the z axis

magnitude()

double Vector3::magnitude

(

)

const

Get the magnitude of the vector

Returns

The magnitude of the vector

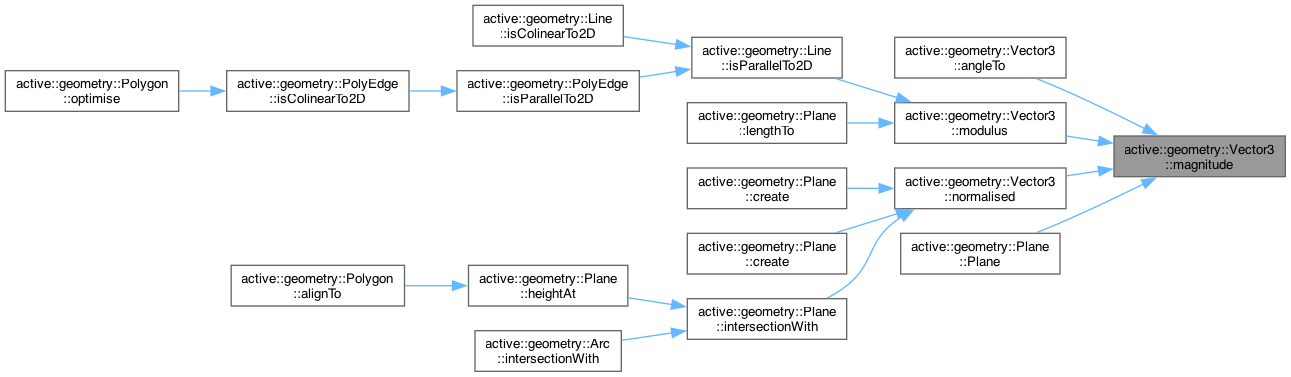

Here is the caller graph for this function:

modulus()

double active::geometry::Vector3::modulus ( ) const

inline

Get the modulus of the vector

Returns

The modulus of the vector

Here is the call graph for this function:

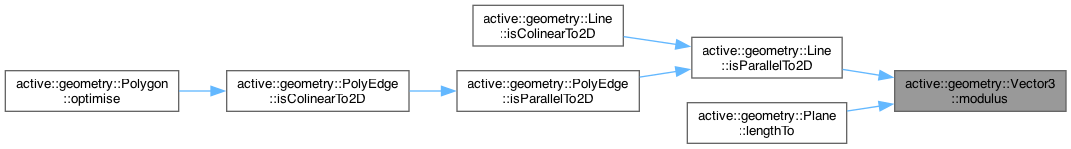

Here is the caller graph for this function:

normalised()

Vector3 Vector3::normalised

(

)

const

Get the normalised vector

Returns

The normalised vector

Here is the call graph for this function:

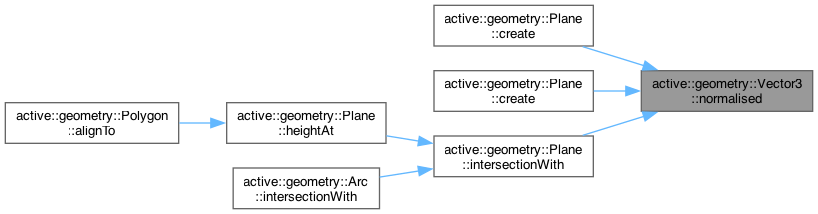

Here is the caller graph for this function:

operator Point()

Vector3::operator Point

(

)

const

Conversion operator

Returns

Point derived from this

operator*() [1/3]

Vector3 Vector3::operator*

(

const Matrix3x3 &

matrix

)

const

Multiplication operator

Parameters

matrix

The matrix to multiply by

Returns

The resultant vector

Here is the call graph for this function:

operator*() [2/3]

Vector3 Vector3::operator*

(

const Matrix4x4 &

matrix

)

const

Multiplication operator

Parameters

matrix

The matrix to multiply by

Returns

The resultant vector

Here is the call graph for this function:

operator*() [3/3]

Vector3 Vector3::operator*

(

double

scale

)

const

Multiplication operator

Parameters

scale

The scale factor

Returns

The resultant vector

Here is the call graph for this function:

operator*=() [1/3]

Vector3 & Vector3::operator*=

(

const Matrix3x3 &

matrix

)

Multiplication and assignment operator

Parameters

matrix

The matrix to multiply by

Returns

A reference to this

operator*=() [2/3]

Vector3 & Vector3::operator*=

(

const Matrix4x4 &

matrix

)

Multiplication and assignment operator

Parameters

matrix

The matrix to multiply by

Returns

A reference to this

operator*=() [3/3]

Vector3 & Vector3::operator*=

(

double

scale

)

Multiplication and assignment operator

Parameters

scale

The scale factor

Returns

The resultant vector

operator+()

Vector3 Vector3::operator+

(

const Vector3 &

vect

)

const

Addition operator

Parameters

vect	The vector to add

Returns

The resultant vector

Here is the call graph for this function:

operator+=()

Vector3 & Vector3::operator+=

(

const Vector3 &

vect

)

Addition and assignment operator

Parameters

vect	The vector to add

Returns

A reference to this

operator-()

Vector3 Vector3::operator-

(

const Vector3 &

vect

)

const

Subtraction operator

Parameters

vect	The vector to substract

Returns

The resultant vector

Here is the call graph for this function:

operator-=()

Vector3 & Vector3::operator-=

(

const Vector3 &

vect

)

Subtraction and assignment operator

Parameters

vect	The vector to subtract

Returns

A reference to this

operator=() [1/3]

Vector3 & Vector3::operator=

(

const Line &

source

)

Assignment operator

Parameters

source

The line to copy

Returns

A reference to this

operator=() [2/3]

Vector3 & Vector3::operator=

(

const Point &

source

)

Assignment operator

Parameters

source

The point to copy

Returns

A reference to this

operator=() [3/3]

Vector3 & Vector3::operator=

(

const Vector3 &

source

)

Assignment operator

Parameters

source

The vector to copy

Returns

A reference to this

operator[]() [1/2]

double & active::geometry::Vector3::operator[] ( int row )

inline

Subscript operator

Parameters

row	Index into the vector

Returns

The requested coefficient

operator[]() [2/2]

const double active::geometry::Vector3::operator[] ( int row ) const

inline

Subscript operator

Parameters

row	Index into the vector

Returns

The requested coefficient

vectorProduct()

Vector3 Vector3::vectorProduct

(

const Vector3 &

ref

)

const

Get the vectorial product of two vectors

Parameters

ref

A vector

Returns

The vectorial product (orthogonal to both)

Here is the call graph for this function:

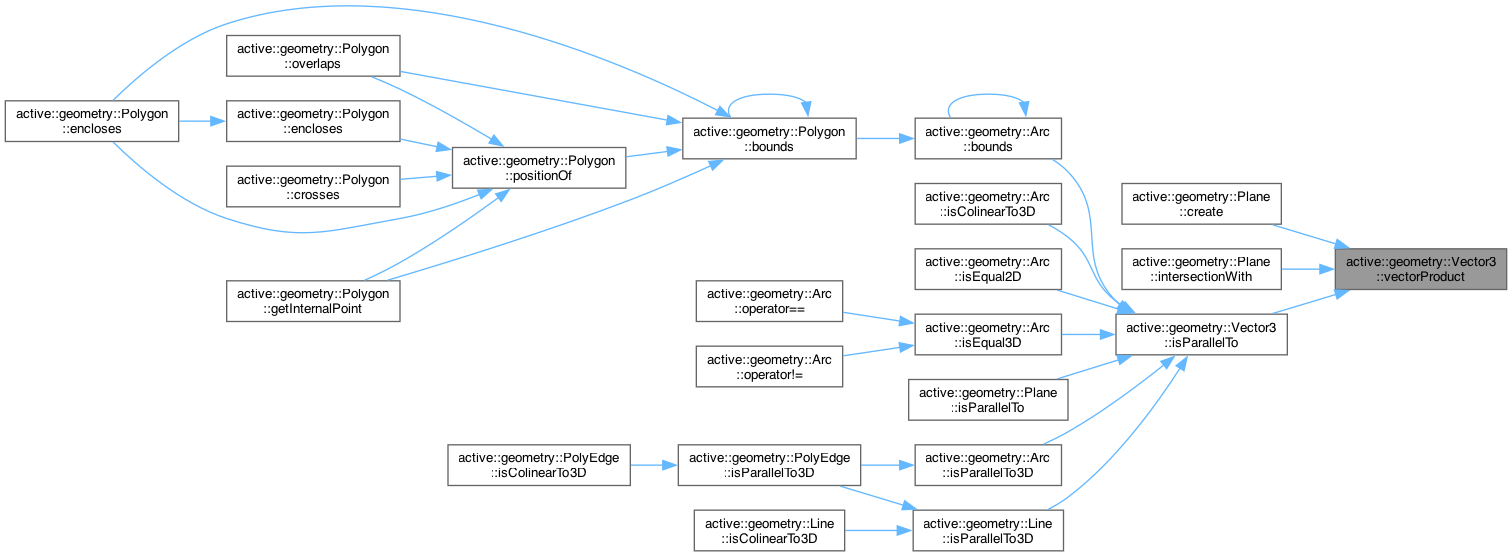

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Vector3.h
• /Users/rwessel/Documents/Development/ActiveLib/Active/Geometry/Vector3.cpp
