active::serialise::xml::XMLSolidPolygon< Vert, VertWrap > Class Template Reference

#include <XMLPolygon.h>

Inheritance diagram for active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >:

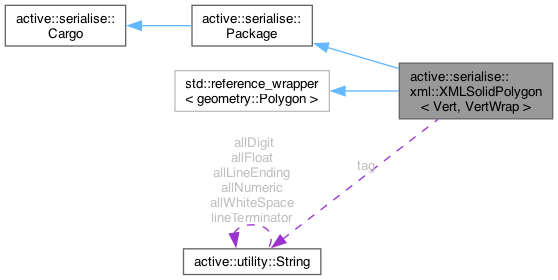

Collaboration diagram for active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >:

Public Types
enum	FieldIndex { vertex , topID }
	Serialisation fields.
using	base = std::reference_wrapper<geometry::Polygon>
Public Types inherited from active::serialise::Package
using	Unique = std::unique_ptr<Package>
	Unique pointer.
using	Shared = std::shared_ptr<Package>
	Shared pointer.
Public Types inherited from active::serialise::Cargo
using	Unique = std::unique_ptr<Cargo>
	Unique pointer.
using	Shared = std::shared_ptr<Cargo>
	Shared pointer.
using	size_type = std::string::size_type
	Class size type.
using	sizeOption = std::optional<size_type>
	Optional size type (used to indicate an unspecified or non-existant position)

Public Member Functions
	XMLSolidPolygon (const geometry::Polygon &polygon)
	XMLSolidPolygon (const geometry::Polygon &polygon, const utility::String &customTag)
virtual bool	fillInventory (Inventory &inventory) const override
virtual Cargo::Unique	getCargo (const Inventory::Item &item) const override
virtual void	setDefault () override
virtual bool	validate () override
virtual bool	insert (Cargo::Unique &&cargo, const Inventory::Item &item) override
Public Member Functions inherited from active::serialise::Package
bool	isRoot () const
virtual bool	isAttributeFirst () const
virtual bool	read (const utility::String &source)
void	setRoot (bool state)
virtual bool	finaliseAttributes ()
Public Member Functions inherited from active::serialise::Cargo
	Cargo ()
	Cargo (const Cargo &source)
virtual	~Cargo ()=default
virtual void	clear ()

Static Public Attributes
static utility::String	tag = "polygon"
	The default element tag.
static std::array	fieldID
	Serialisation field IDs.

Detailed Description

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>
requires IsPolyPoint<Vert> && IsPointWrap<VertWrap>
class active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >

A serialisation wrapper for a solid Polygon (no holes)

While explicitly supporting XML, this class should work equally well for JSON and probably CSV serialisation This is a template to support the deserialisation of vertex objects derived from PolyPoint

Constructor & Destructor Documentation

XMLSolidPolygon() [1/2]

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::XMLSolidPolygon ( const geometry::Polygon & polygon )

inline

Constructor

Parameters

polygon

The polygon to wrap for (de)serialisation

Here is the call graph for this function:

XMLSolidPolygon() [2/2]

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::XMLSolidPolygon ( const geometry::Polygon & polygon, const utility::String & customTag )

inline

Constructor

Parameters

polygon	The polygon to wrap for (de)serialisation
customTag	A custom tag (overrides the default tag)

Here is the call graph for this function:

Member Function Documentation

fillInventory()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

virtual bool active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::fillInventory ( Inventory & inventory ) const

inlineoverridevirtual

Fill an inventory with the package items

Parameters

inventory

The inventory to receive the package items

Returns

True if the package has added items to the inventory

Implements active::serialise::Cargo.

Reimplemented in active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >.

Here is the call graph for this function:

Here is the caller graph for this function:

getCargo()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

virtual Cargo::Unique active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::getCargo ( const Inventory::Item & item ) const

inlineoverridevirtual

Get the specified cargo

Parameters

item	The inventory item to retrieve

Returns

The requested cargo (nullptr on failure)

Implements active::serialise::Cargo.

Reimplemented in active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >.

Here is the caller graph for this function:

insert()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

virtual bool active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::insert ( Cargo::Unique && cargo, const Inventory::Item & item )

inlineoverridevirtual

Insert specified cargo into the package - used for cargo with many instances sharing the same ID (e.g. from an array/map)

Parameters

cargo	The cargo to insert
item	The inventory item linked with the cargo

Returns

True if the cargo was accepted (false will trigger an import failure - simply discard if this is not an error)

Reimplemented from active::serialise::Package.

Reimplemented in active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >.

Here is the caller graph for this function:

setDefault()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

virtual void active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::setDefault ( )

inlineoverridevirtual

Set to the default package content

Reimplemented from active::serialise::Package.

validate()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

virtual bool active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::validate ( )

inlineoverridevirtual

Validate the cargo data

Returns

True if the data has been validated

Reimplemented from active::serialise::Cargo.

Member Data Documentation

fieldID

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint>

std::array active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >::fieldID

inlinestatic

Initial value:

= {
            Identity{"vertex"},
            Identity{"topID"},
        }

Serialisation field IDs.

---

The documentation for this class was generated from the following file:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/XML/Package/Wrapper/Geometry/XMLPolygon.h
