#include <XMLPolygon.h>

Inheritance diagram for active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >:

[legend]

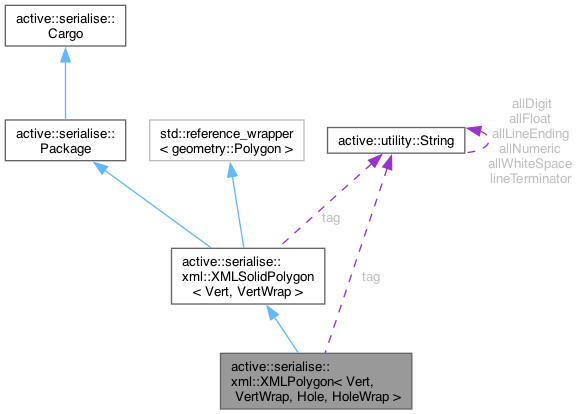

Collaboration diagram for active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >:

[legend]

Public Types
enum	FieldIndex { hole }
	The package fields.

using	base = XMLSolidPolygon<Vert, VertWrap>

Public Types inherited from active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >
enum	FieldIndex { vertex , topID }
	Serialisation fields.

using	base = std::reference_wrapper<geometry::Polygon>

Public Types inherited from active::serialise::Package
using	Unique = std::unique_ptr<Package>
	Unique pointer.

using	Shared = std::shared_ptr<Package>
	Shared pointer.

Public Types inherited from active::serialise::Cargo
using	Unique = std::unique_ptr<Cargo>
	Unique pointer.

using	Shared = std::shared_ptr<Cargo>
	Shared pointer.

using	size_type = std::string::size_type
	Class size type.

using	sizeOption = std::optional<size_type>
	Optional size type (used to indicate an unspecified or non-existant position)

Public Member Functions
	XMLPolygon (const geometry::Polygon &polygon)

	XMLPolygon (const geometry::Polygon &polygon, const utility::String &customTag)

virtual bool	fillInventory (Inventory &inventory) const override

virtual Cargo::Unique	getCargo (const Inventory::Item &item) const override

virtual bool	insert (Cargo::Unique &&cargo, const Inventory::Item &item) override

Public Member Functions inherited from active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >
	XMLSolidPolygon (const geometry::Polygon &polygon)

	XMLSolidPolygon (const geometry::Polygon &polygon, const utility::String &customTag)

virtual void	setDefault () override

virtual bool	validate () override

Public Member Functions inherited from active::serialise::Package
bool	isRoot () const

virtual bool	isAttributeFirst () const

virtual bool	read (const utility::String &source)

void	setRoot (bool state)

virtual bool	finaliseAttributes ()

Public Member Functions inherited from active::serialise::Cargo
	Cargo ()

	Cargo (const Cargo &source)

virtual	~Cargo ()=default

virtual void	clear ()

Static Public Attributes
static utility::String	tag = "polygon"
	The default element tag.

static std::array	fieldID
	Serialisation field IDs.

Static Public Attributes inherited from active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >
static utility::String	tag = "polygon"
	The default element tag.

static std::array	fieldID
	Serialisation field IDs.

Detailed Description

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>
requires IsPolyPoint<Vert> && IsPointWrap<VertWrap> && IsPolygon<Hole> && IsHoleWrap<HoleWrap>
class active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >

A serialisation wrapper for a Polygon (includng holes)

While explicitly supporting XML, this class should work equally well for JSON and probably CSV serialisation This is a template to support the deserialisation of vertex objects derived from PolyPoint

Constructor & Destructor Documentation

◆ XMLPolygon() [1/2]

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>

active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >::XMLPolygon ( const geometry::Polygon & polygon )

inline

Constructor

Parameters

polygon The polygon to wrap for (de)serialisation

◆ XMLPolygon() [2/2]

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>

active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >::XMLPolygon	(	const geometry::Polygon &	polygon,
		const utility::String &	customTag )

inline

Constructor

Parameters

polygon	The polygon to wrap for (de)serialisation
customTag	A custom tag (overrides the default tag)

Member Function Documentation

◆ fillInventory()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>

virtual bool active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >::fillInventory ( Inventory & inventory ) const

inlineoverridevirtual

Fill an inventory with the package items

Parameters

inventory The inventory to receive the package items

Returns: True if the package has added items to the inventory

Reimplemented from active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >.

Here is the call graph for this function:

◆ getCargo()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>

virtual Cargo::Unique active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >::getCargo ( const Inventory::Item & item ) const

inlineoverridevirtual

Get the specified cargo

Parameters

item	The inventory item to retrieve

Returns: The requested cargo (nullptr on failure)

Reimplemented from active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >.

Here is the call graph for this function:

◆ insert()

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>

virtual bool active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >::insert	(	Cargo::Unique &&	cargo,
		const Inventory::Item &	item )

inlineoverridevirtual

Insert specified cargo into the package - used for cargo with many instances sharing the same ID (e.g. from an array/map)

Parameters

cargo	The cargo to insert
item	The inventory item linked with the cargo

Returns: True if the cargo was accepted (false will trigger an import failure - simply discard if this is not an error)

Reimplemented from active::serialise::xml::XMLSolidPolygon< Vert, VertWrap >.

Here is the call graph for this function:

Member Data Documentation

◆ fieldID

template<class Vert = geometry::PolyPoint, class VertWrap = XMLPolyPoint, class Hole = geometry::Polygon, class HoleWrap = XMLSolidPolygon<Vert, VertWrap>>

std::array active::serialise::xml::XMLPolygon< Vert, VertWrap, Hole, HoleWrap >::fieldID

inlinestatic

Initial value:

= {
            Identity{"hole"},
        }

Serialisation field IDs.

The documentation for this class was generated from the following file:

/Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/XML/Package/Wrapper/Geometry/XMLPolygon.h
