Inheritance diagram for active::utility::BufferOut:

[legend]

Collaboration diagram for active::utility::BufferOut:

Public Member Functions
	BufferOut ()

	BufferOut (file::File &destFile, Memory::sizeOption bufferSize=std::nullopt, DataFormat format=DataFormat{})

	BufferOut (Memory &memory, Memory::sizeOption bufferSize=std::nullopt, DataFormat format=DataFormat{})

	BufferOut (Memory &&memory, Memory::sizeOption bufferSize=std::nullopt, DataFormat format=DataFormat{})

	BufferOut (String &destString, Memory::sizeOption bufferSize=std::nullopt, DataFormat format=DataFormat{})

	BufferOut (BufferOut &&source) noexcept

	BufferOut (const BufferOut &source)=delete

virtual	~BufferOut ()

BufferOut &	operator= (BufferOut &&source) noexcept

BufferOut &	operator= (const BufferOut &)=delete

	operator bool () const

const BufferOut &	operator<< (char val) const

const BufferOut &	operator<< (const String &str) const

const BufferOut &	operator<< (int16_t val) const

const BufferOut &	operator<< (int32_t val) const

const BufferOut &	operator<< (uint32_t val) const

const BufferOut &	operator<< (int64_t val) const

const BufferOut &	operator<< (uint64_t val) const

const BufferOut &	operator<< (double val) const

Memory::sizeOption	maxSize () const

Memory::sizeOption	getPosition () const

DataFormat	format () const

TextEncoding	getEncoding () const

const BufferOut &	write (const String &toWrite) const

const BufferOut &	write (const String &toWrite, DataFormat format) const

const BufferOut &	write (const char *toWrite, Memory::size_type length) const

const BufferOut &	write (unsigned char toWrite) const

template<class T >
const BufferOut &	writeBinary (const T &obj) const

const BufferOut &	flush () const

void	setDestination (file::File *destFile)

void	setDestination (Memory *memory)

void	setDestination (String *destString)

void	setEncoding (TextEncoding encoding)

Public Member Functions inherited from active::file::IOBase
	IOBase () noexcept

	IOBase (const IOBase &source) noexcept

virtual	~IOBase () noexcept=default

bool	operator! () const noexcept

	operator void * () const noexcept

virtual bool	good () const noexcept

virtual bool	eof () const noexcept

virtual bool	fail () const noexcept

virtual bool	bad () const noexcept

virtual flag_type	state () const noexcept

virtual void	clear (flag_type f=std::ios_base::goodbit)

virtual void	setState (flag_type f)

virtual void	unsetState (flag_type f)

Protected Member Functions
virtual bool	isMyBuffer () const

const Memory &	getBuffer () const

void	setBuffer (void *buffer, Memory::size_type size) const

virtual bool	confirmBuffer () const

Protected Member Functions inherited from active::file::IOBase
void	setCompleteState (flag_type state)

void	clear (flag_type f=std::ios_base::goodbit) const

void	setState (flag_type f) const

virtual void	unsetState (flag_type f) const

Additional Inherited Members
Public Types inherited from active::file::IOBase
using	flag_type = std::ios_base::iostate
	The state flag representation type.

Constructor & Destructor Documentation

◆ BufferOut() [1/6]

BufferOut::BufferOut ( )

Default constructor

◆ BufferOut() [2/6]

BufferOut::BufferOut	(	file::File &	destFile,
		Memory::sizeOption	bufferSize = std::nullopt,
		DataFormat	format = DataFormat{} )

Constructor

Parameters

destFile	The destination data file
bufferSize	Suggested buffer size (can minimise overheads if a small number is suggested - large values will be ignored)
format	The destination data format

Here is the call graph for this function:

◆ BufferOut() [3/6]

BufferOut::BufferOut	(	Memory &	memory,
		Memory::sizeOption	bufferSize = std::nullopt,
		DataFormat	format = DataFormat{} )

Constructor

Parameters

memory	The destination memory block
bufferSize	Suggested buffer size (can minimise overheads if a small number is suggested - large values will be ignored)
format	The destination data format

Here is the call graph for this function:

◆ BufferOut() [4/6]

BufferOut::BufferOut	(	Memory &&	memory,
		Memory::sizeOption	bufferSize = std::nullopt,
		DataFormat	format = DataFormat{} )

Constructor

Parameters

memory	The destination memory block
bufferSize	Suggested buffer size (can minimise overheads if a small number is suggested - large values will be ignored)
format	The destination data format

Here is the call graph for this function:

◆ BufferOut() [5/6]

BufferOut::BufferOut	(	String &	destString,
		Memory::sizeOption	bufferSize = std::nullopt,
		DataFormat	format = DataFormat{} )

Constructor

Parameters

destString	The destination string
bufferSize	Suggested buffer size (can minimise overheads if a small number is suggested - large values will be ignored)
format	The destination data format

Here is the call graph for this function:

◆ BufferOut() [6/6]

BufferOut::BufferOut ( BufferOut && source )

noexcept

Move constructor

Parameters

source The object to move

◆ ~BufferOut()

BufferOut::~BufferOut ( )

virtual

Destructor

Member Function Documentation

◆ confirmBuffer()

bool BufferOut::confirmBuffer ( ) const

protectedvirtual

Confirm the buffer is mine and prepared to receive data

Returns: True if the buffer is confirmed (false = bad buffer state - writing will be rejected)

Reimplemented in active::utility::StackBufferOut< S >.

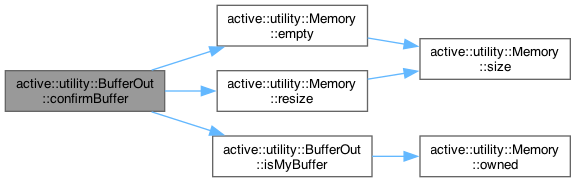

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flush()

const BufferOut & active::utility::BufferOut::flush ( ) const

inline

Flush the buffer to the destination

Returns: A reference to this

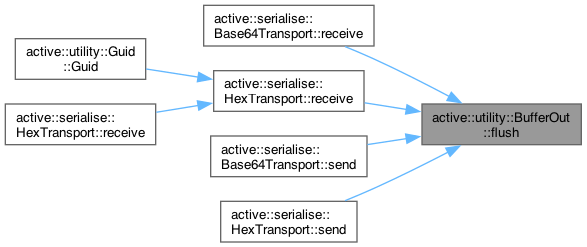

Here is the caller graph for this function:

◆ format()

DataFormat active::utility::BufferOut::format ( ) const

inline

Get the destination data format

Returns: The data format

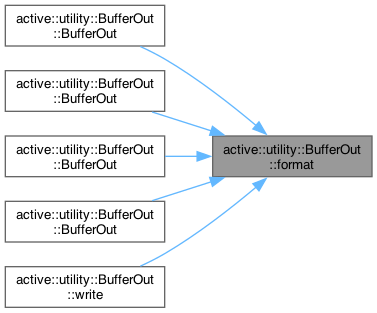

Here is the caller graph for this function:

◆ getBuffer()

const Memory & active::utility::BufferOut::getBuffer ( ) const

inlineprotected

Get the buffer memory

Returns: The buffer memory

Here is the caller graph for this function:

◆ getEncoding()

TextEncoding active::utility::BufferOut::getEncoding ( ) const

inline

Get the source text encoding (NB: for text input functionality only)

Returns: The text encoding type

◆ getPosition()

Memory::sizeOption BufferOut::getPosition ( ) const

Get the current write position in the destination (not the write position in the buffer)

Returns: The write position (e.g. the write position in a destination file, nullopt on error)

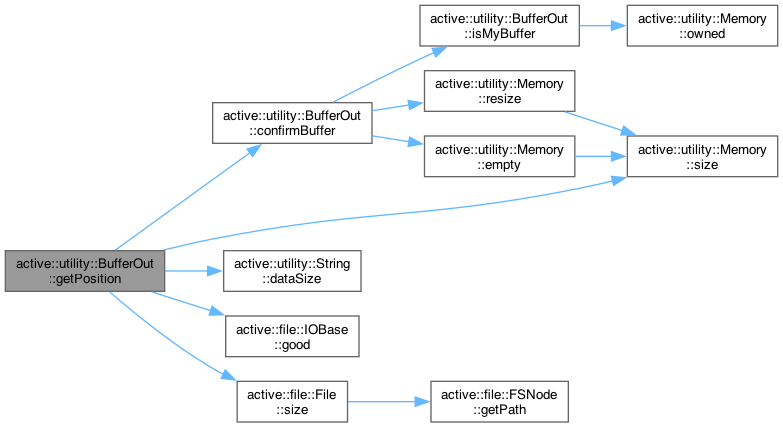

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isMyBuffer()

virtual bool active::utility::BufferOut::isMyBuffer ( ) const

inlineprotectedvirtual

Determine is the buffer is owned by this object

Returns: True if this object owns the buffer

Reimplemented in active::utility::StackBufferOut< S >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxSize()

Memory::sizeOption BufferOut::maxSize ( ) const

Get the maximum size of the output buffer (when a fixed-sized memory buffer is used)

Returns: The maximum number of bytes the buffer can hold (null-opt for any dynamic buffer target)

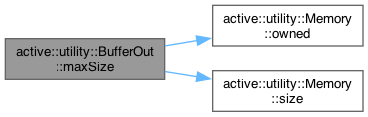

Here is the call graph for this function:

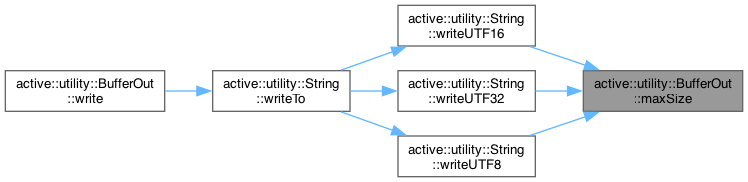

Here is the caller graph for this function:

◆ operator bool()

active::utility::BufferOut::operator bool ( ) const

inline

Bool operator

Returns: True if the source is not is a failed state

Here is the call graph for this function:

◆ operator<<() [1/8]

const BufferOut & active::utility::BufferOut::operator<< ( char val ) const

inline

Write operator

Parameters

val	A character to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [2/8]

const BufferOut & active::utility::BufferOut::operator<< ( const String & str ) const

inline

Write operator

Parameters

str	A string to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [3/8]

const BufferOut & active::utility::BufferOut::operator<< ( double val ) const

inline

Write operator

Parameters

val	A double value to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [4/8]

const BufferOut & active::utility::BufferOut::operator<< ( int16_t val ) const

inline

Write operator

Parameters

val	A 16-bit integer to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [5/8]

const BufferOut & active::utility::BufferOut::operator<< ( int32_t val ) const

inline

Write operator

Parameters

val	A 32-bit integer to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [6/8]

const BufferOut & active::utility::BufferOut::operator<< ( int64_t val ) const

inline

Write operator

Parameters

val	A 64-bit integer to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [7/8]

const BufferOut & active::utility::BufferOut::operator<< ( uint32_t val ) const

inline

Write operator

Parameters

val	An unsigned 32-bit integer to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator<<() [8/8]

const BufferOut & active::utility::BufferOut::operator<< ( uint64_t val ) const

inline

Write operator

Parameters

val	An unsigned 64-bit integer to write

Returns: A reference to this

Here is the call graph for this function:

◆ operator=()

BufferOut & BufferOut::operator= ( BufferOut && source )

noexcept

Assignment with move operator

Parameters

source The object to move

Returns: A reference to this object

◆ setBuffer()

void active::utility::BufferOut::setBuffer	(	void *	buffer,
		Memory::size_type	size ) const

inlineprotected

Set the buffer memory

Parameters

buffer	The buffer memory
size	The buffer size

Here is the caller graph for this function:

◆ setDestination() [1/3]

void BufferOut::setDestination ( file::File * destFile )

Set the buffer output destination

Parameters

destFile The destination data file

◆ setDestination() [2/3]

void BufferOut::setDestination ( Memory * memory )

Set the buffer output destination

Parameters

memory The destination memory block

◆ setDestination() [3/3]

void BufferOut::setDestination ( String * destString )

Set the buffer output destination

Parameters

destString The destination string

◆ setEncoding()

void active::utility::BufferOut::setEncoding ( TextEncoding encoding )

inline

Set The source text encoding

Parameters

encoding The text encoding type

◆ write() [1/4]

const BufferOut & BufferOut::write	(	const char *	toWrite,
		Memory::size_type	length ) const

Write a specified memory block (NB: The data is not assumed to be text - simply a stream of bytes. Avoid when buffering to a string)

Parameters

toWrite	The block address
length	The number of bytes to write

Returns: A reference to this

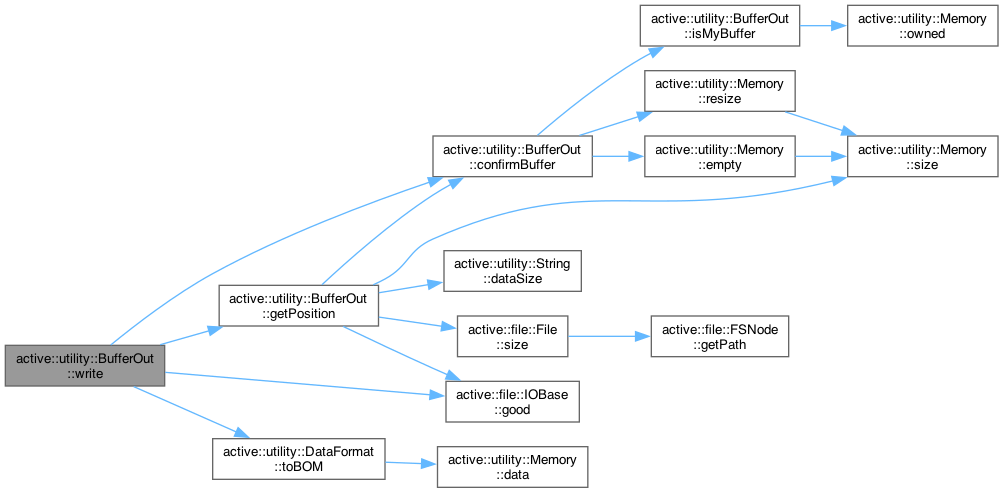

Here is the call graph for this function:

◆ write() [2/4]

const BufferOut & active::utility::BufferOut::write ( const String & toWrite ) const

inline

Write the specified string (using the buffer text encoding)

Parameters

toWrite The string to write

Returns: A reference to this

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [3/4]

const BufferOut & BufferOut::write	(	const String &	toWrite,
		DataFormat	format ) const

Write the specified string (using the specified text encoding)

Parameters

toWrite	The string to write
format	The data format

Returns: A reference to this

Here is the call graph for this function:

◆ write() [4/4]

const BufferOut & BufferOut::write ( unsigned char toWrite ) const

Write a single byte

Parameters

toWrite The byte to write

Returns: A reference to this

Here is the call graph for this function:

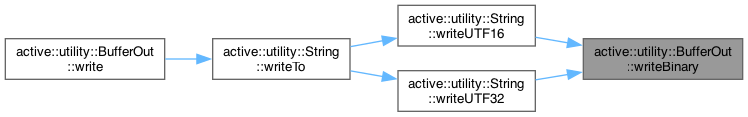

◆ writeBinary()

template<class T >

const BufferOut & active::utility::BufferOut::writeBinary ( const T & obj ) const

inline

Write an object to the buffer as binary data (NB: Avoid when buffering to a string)

Parameters

obj	The object to write

Returns: A reference to this

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Utility/BufferOut.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Utility/BufferOut.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ BufferOut() [1/6]

◆ BufferOut() [2/6]

◆ BufferOut() [3/6]

◆ BufferOut() [4/6]

◆ BufferOut() [5/6]

◆ BufferOut() [6/6]

◆ ~BufferOut()

Member Function Documentation

◆ confirmBuffer()

◆ flush()

◆ format()

◆ getBuffer()

◆ getEncoding()

◆ getPosition()

◆ isMyBuffer()

◆ maxSize()

◆ operator bool()

◆ operator<<() [1/8]

◆ operator<<() [2/8]

◆ operator<<() [3/8]

◆ operator<<() [4/8]

◆ operator<<() [5/8]

◆ operator<<() [6/8]

◆ operator<<() [7/8]

◆ operator<<() [8/8]

◆ operator=()

◆ setBuffer()

◆ setDestination() [1/3]

◆ setDestination() [2/3]

◆ setDestination() [3/3]

◆ setEncoding()

◆ write() [1/4]

◆ write() [2/4]

◆ write() [3/4]

◆ write() [4/4]

◆ writeBinary()
