#include <Value.h>

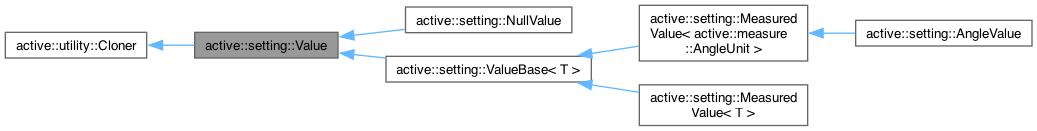

Inheritance diagram for active::setting::Value:

[legend]

Collaboration diagram for active::setting::Value:

Public Types
enum class	Status { undefined = 0 , bad , good }
	The value status (defines whether a value has been explicitly set and (if so) if it's meaningful.

enum class	Type { null = 0 , boolType , idType , intType , floatType , stringType , timeType }
	Supported value types (broad groups, e.g. int32_t and int64_t are both intType)

using	Unique = std::unique_ptr<Value>
	Unique pointer.

using	Shared = std::shared_ptr<Value>
	Shared pointer.

using	Option = std::optional<Value>
	Optional.

Public Member Functions
	Value (Status stat=good)

virtual	~Value ()=default

virtual Value *	clonePtr () const override=0

virtual bool	operator== (const Value &ref) const =0

bool	operator!= (const Value &ref) const

virtual bool	operator< (const Value &ref) const =0

virtual Value &	operator= (const Value &val)=0

virtual Value &	operator= (bool val)=0

virtual Value &	operator= (int32_t val)=0

virtual Value &	operator= (uint32_t val)=0

virtual Value &	operator= (int64_t val)=0

virtual Value &	operator= (double val)=0

virtual Value &	operator= (const active::utility::String &val)=0

virtual Value &	operator= (const char *val)

virtual Value &	operator= (const active::utility::Guid &val)=0

virtual Value &	operator= (const active::utility::Time &val)=0

virtual	operator bool () const =0

virtual	operator int32_t () const =0

virtual	operator uint32_t () const =0

virtual	operator int64_t () const =0

virtual	operator double () const =0

virtual	operator active::utility::String () const =0

virtual	operator active::utility::Guid () const =0

virtual	operator active::utility::Time () const =0

virtual bool	isGood () const

virtual bool	isNull () const =0

virtual Type	getType () const =0

virtual void	setDefault ()=0

Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Static Public Member Functions
static std::optional< Type >	typeFromName (const utility::String &text)

static utility::String	nameForType (Type type)

Public Attributes
Status	status
	The value status.

Detailed Description

Base class for all single-item values

This base class essentially anonymises the value type, allowing a setting sender and receiver to work with the type it expects, e.g. a sender may have numeric value that the receiver will display as a string. This helps facilitate loose coupling between modules. Settings/parameters can share a common identity, but the senders/receivers of these values do not need a shared understanding of value types, formatting or purpose (which may vary if there are multiple receivers). This is particulary relevant to the UI, where the app business logic understands value types and formatting, but the UI must facilitate display/entry of values. The UI code can read/write to the value as a string irrespective of its internal type and allow the Value to validate user entry (meaning that no business logic for the value type is replicated or exposed in the UI code).

There are many other uses for this type abstraction, e.g. data passed with an Event to Subscribers.

Subclasses should override the following functions as appropriate

Constructor & Destructor Documentation

◆ Value()

active::setting::Value::Value ( Status stat = good )

inline

Default constructor

Parameters

stat	The value status

◆ ~Value()

virtual active::setting::Value::~Value ( )

virtualdefault

Destructor

Member Function Documentation

◆ clonePtr()

virtual Value * active::setting::Value::clonePtr ( ) const

overridepure virtual

Clone method

Returns: A clone of this object

Implements active::utility::Cloner.

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ getType()

virtual Type active::setting::Value::getType ( ) const

pure virtual

Get the value type

Returns: The value type

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ isGood()

virtual bool active::setting::Value::isGood ( ) const

inlinevirtual

Determine if the value has a good status

Returns: True if the status is good

Here is the caller graph for this function:

◆ isNull()

virtual bool active::setting::Value::isNull ( ) const

pure virtual

Determine if the value is null, e.g. zero, empty, undefined

Returns: True if the value is null

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

Here is the caller graph for this function:

◆ nameForType()

String Value::nameForType ( Value::Type type )

static

Get the text for a Value::Type

Parameters

type	The incoming type

Returns: The type name as text

Here is the call graph for this function:

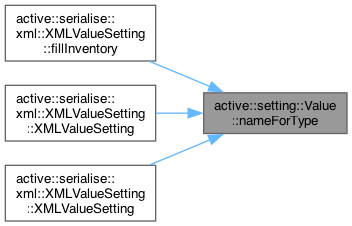

Here is the caller graph for this function:

◆ operator active::utility::Guid()

virtual active::setting::Value::operator active::utility::Guid ( ) const

pure virtual

Get a guid value

Returns: A guid value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator active::utility::String()

virtual active::setting::Value::operator active::utility::String ( ) const

pure virtual

Get a string value

Returns: A string value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator active::utility::Time()

virtual active::setting::Value::operator active::utility::Time ( ) const

pure virtual

Get a time value

Returns: A time value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator bool()

virtual active::setting::Value::operator bool ( ) const

pure virtual

Get a boolean value

Returns: A boolean value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator double()

virtual active::setting::Value::operator double ( ) const

pure virtual

Get a double precision value

Returns: A double precision value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator int32_t()

virtual active::setting::Value::operator int32_t ( ) const

pure virtual

Get a 32-bit integer value

Returns: A 32-bit integer value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator int64_t()

virtual active::setting::Value::operator int64_t ( ) const

pure virtual

Get a 64-bit integer value

Returns: A 64-bit integer value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator uint32_t()

virtual active::setting::Value::operator uint32_t ( ) const

pure virtual

Get an unsigned 32-bit integer value

Returns: An unsigned 32-bit integer value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator!=()

bool active::setting::Value::operator!= ( const Value & ref ) const

inline

Inequality operator

Parameters

ref	A value to compare with this

Returns: True if this is not identical to ref

◆ operator<()

virtual bool active::setting::Value::operator< ( const Value & ref ) const

pure virtual

Less-than operator

Parameters

ref	A value to compare with this

Returns: True if this is less than ref

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [1/10]

virtual Value & active::setting::Value::operator= ( bool val )

pure virtual

Assignment operator

Parameters

val	A boolean value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [2/10]

virtual Value & active::setting::Value::operator= ( const active::utility::Guid & val )

pure virtual

Assignment operator

Parameters

val	A guid value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [3/10]

virtual Value & active::setting::Value::operator= ( const active::utility::String & val )

pure virtual

Assignment operator

Parameters

val	A string value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, active::setting::ValueBase< T >, active::setting::AngleValue, active::setting::MeasuredValue< T >, and active::setting::MeasuredValue< active::measure::AngleUnit >.

◆ operator=() [4/10]

virtual Value & active::setting::Value::operator= ( const active::utility::Time & val )

pure virtual

Assignment operator

Parameters

val	A time value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [5/10]

virtual Value & active::setting::Value::operator= ( const char * val )

inlinevirtual

Assignment operator

Parameters

val	A string value to assign

Returns: A reference to this

Reimplemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, and active::setting::ValueBase< T >.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [6/10]

virtual Value & active::setting::Value::operator= ( const Value & val )

pure virtual

Assignment operator

Parameters

val	A value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::ValueBase< T >, active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

Here is the caller graph for this function:

◆ operator=() [7/10]

virtual Value & active::setting::Value::operator= ( double val )

pure virtual

Assignment operator

Parameters

val	A double precision value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [8/10]

virtual Value & active::setting::Value::operator= ( int32_t val )

pure virtual

Assignment operator

Parameters

val	A 32-bit integer value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [9/10]

virtual Value & active::setting::Value::operator= ( int64_t val )

pure virtual

Assignment operator

Parameters

val	A 64-bit integer value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator=() [10/10]

virtual Value & active::setting::Value::operator= ( uint32_t val )

pure virtual

Assignment operator

Parameters

val	An unsigned 32-bit integer value to assign

Returns: A reference to this

Implemented in active::setting::MeasuredValue< T >, active::setting::MeasuredValue< active::measure::AngleUnit >, active::setting::NullValue, and active::setting::ValueBase< T >.

◆ operator==()

virtual bool active::setting::Value::operator== ( const Value & ref ) const

pure virtual

Equality operator

Parameters

ref	A value to compare with this

Returns: True if this is identical to ref

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ setDefault()

virtual void active::setting::Value::setDefault ( )

pure virtual

Set a default value

Implemented in active::setting::NullValue, and active::setting::ValueBase< T >.

◆ typeFromName()

std::optional< Value::Type > Value::typeFromName ( const utility::String & text )

static

Get a Value::Type enumerator from text

Parameters

text	The incoming text

Returns: The equivalent type (nullopt on failure)

The documentation for this class was generated from the following files:

/Users/rwessel/Documents/Development/ActiveLib/Active/Setting/Values/Value.h
/Users/rwessel/Documents/Development/ActiveLib/Active/Setting/Values/Value.cpp
