Template specialisation of DoubleValue for values of measurement. More...

#include <MeasuredValue.h>

Inheritance diagram for active::setting::MeasuredValue< T >:

[legend]

Collaboration diagram for active::setting::MeasuredValue< T >:

[legend]

Public Types
using	Type = typename T::Type

using	UnitRetrieval = std::function<T()>
	Function retrieving a measument unit.

Public Types inherited from active::setting::Value
enum class	Status { undefined = 0 , bad , good }
	The value status (defines whether a value has been explicitly set and (if so) if it's meaningful.

enum class	Type { null = 0 , boolType , idType , intType , floatType , stringType , timeType }
	Supported value types (broad groups, e.g. int32_t and int64_t are both intType)

using	Unique = std::unique_ptr<Value>
	Unique pointer.

using	Shared = std::shared_ptr<Value>
	Shared pointer.

using	Option = std::optional<Value>
	Optional.

Public Member Functions
	MeasuredValue ()

	MeasuredValue (double val)

	MeasuredValue (const T &unit, double val=0.0)

	MeasuredValue (UnitRetrieval unitFinder, double val=0.0)

Value &	operator= (const utility::String &val) override

	operator utility::String () const override

virtual utility::String	operator() (const T &unit) const

virtual T	getUnit () const

virtual void	setUnit (const T &unit)

virtual void	setUnit (UnitRetrieval unitFinder)

virtual Value &	assign (const utility::String &val, const T &unit)

virtual Value &	operator= (const Value &val) override

virtual Value &	operator= (bool val) override

virtual Value &	operator= (int32_t val) override

virtual Value &	operator= (uint32_t val) override

virtual Value &	operator= (int64_t val) override

virtual Value &	operator= (double val) override

virtual Value &	operator= (const active::utility::String &val) override

virtual Value &	operator= (const char *val) override

virtual Value &	operator= (const active::utility::Guid &val) override

virtual Value &	operator= (const active::utility::Time &val) override

Value &	operator= (const Value &val)

Public Member Functions inherited from active::setting::ValueBase< T >
	ValueBase ()

	ValueBase (const T &val, Status stat=good)

	ValueBase (const Value &value)

	ValueBase (const utility::String &stringVal)

	ValueBase (const ValueBase &source)=default

virtual Value *	clonePtr () const override

virtual bool	operator== (const Value &ref) const override

bool	operator!= (const Value &ref) const

virtual bool	operator< (const Value &ref) const override

virtual	operator bool () const override

virtual	operator int32_t () const override

virtual	operator uint32_t () const override

virtual	operator int64_t () const override

virtual	operator double () const override

virtual	operator active::utility::String () const override

virtual	operator active::utility::Guid () const override

virtual	operator active::utility::Time () const override

virtual bool	isNull () const override

virtual Type	getType () const override

virtual void	setDefault () override

Value &	operator= (const Value &val)

Public Member Functions inherited from active::setting::Value
	Value (Status stat=good)

virtual	~Value ()=default

bool	operator!= (const Value &ref) const

virtual bool	isGood () const

Public Member Functions inherited from active::utility::Cloner
virtual	~Cloner ()=default

Additional Inherited Members
Static Public Member Functions inherited from active::setting::Value
static std::optional< Type >	typeFromName (const utility::String &text)

static utility::String	nameForType (Type type)

Public Attributes inherited from active::setting::ValueBase< T >
T	data = T()
	The value data.

Public Attributes inherited from active::setting::Value
Status	status
	The value status.

Detailed Description

template<class T>
class active::setting::MeasuredValue< T >

Template specialisation of DoubleValue for values of measurement.

Targets measurement properties (dimensions) like length, volume, area etc. where the formatting is expected to be a numeric value suffixed with an abbreviation of the unit of measurement, e.g. 100mm. The measurement formatting will specify the unit type and precision. Refer to the Unit template for more detail.

Restrict use of this template to values that express measured properties rather than as a catch-all for formatted quantities. It is assumed (for example) that there is a fixed conversion factor between any measurement unit of the same kind, so values can be stored internally as a homogenous unit type and converted on the fly for string representations.

Conversion of measured values should only be done for the purposes of string representation, e.g. for the user to read/edit. Otherwise, all coding should assume a fixed unit type, e.g. lengths are always in metres. Interactions with external software should convert to/from that software's native units only when reading/writing data from/to that software, and knowledge of the conversion factor should as limited as possible. This approach keeps code managing measurements as simple as possible (and will elminate the possibility of a host of errors).

Some coding examples follow using LengthValue to illustrate how measurements should be handled in practice. AreaValue and VolumeValue work in exactly the same way (with relevant units).

LengthValue holds values in metres, so can be constructed with a length of 3 metres as follows:

LengthValue width{3.0};

A string can be extracted from the value:

String output{width};   //output becomes 3m

The measurement unit can be changed to suit user requirements:

width.setUnit({foot, inch, 6, true});   //Set the unit to foot/inch, precision 1/64", fractional output
output = width; //output becomes 9' 10 7/64"

A custom unit can also be used to retrieve a value without knowing or changing the formatting it contains:

LengthValue width{3.1234};  //Default unit is metres to 4 decimal places
String output = width;  //…which produces: 3.1234m
output = width({foot, inch, 6, true});  //But with a custom unit: 10' 2 31/32"
output = width({mm, 1});    //Or alternately: 3123.4mm

The unit can have some bearing on the conversion of text to a measurement, but only when no units are explicitly stated. For example, if a LengthValue unit is decimal feet and text is assigned to it with no units, it will assume the figure is decimal feet:

LengthValue width{{foot, 4}};   //Length unit is decimal feet
width = "3";    //Text has no unit, so assumed to be decimal feet
String output{width({metre, 4})};   //But can then be output as metres (or any other unit); output is 0.9144m (= 3 feet)

However, the member unit is ignored if the text has explicit units:

LengthValue width{{metre, 4}};  //Length unit is metres
width = "3' 6 1/2\"";   //This text is formatted as feet and fractional inches, and is interpreted as such
String output{width};   //So the resulting output is 1.0795m (= 3' 6 1/2")

Units (of the same type, e.g. length) can be freely mixed in input, e.g. 3m 4" will be intrepreted as "3 metres + 4 inches" = 3.1016m. Any series of numbers (separated by white space) will be interpeted as being the same unit type and added together, so 4 6" will be read as "4 inches + 6 inches", i.e. it will not assume that the space implies feet. If the number is intended to be "4 feet + 6 inches" it should be explicitly entered as 4'6".

The unit for a MeasuredValue can be sourced from the member variable or (optionally) a specified retrieval function. The latter could be used in cases where multiple instances must independently react to a common change, e.g. the UI refreshing displayed measurements in response to the user changing their preferred unit/formatting, e.g. if we have some function that returns the users formatting preferences:

LengthUnit preferredLengthUnit() {
    ...Some process to retrieve and return the preferred length unit
}

…it can be used to ensure a refresh always reflects the current preferences:

LengthValue width{preferredLengthUnit};

Constructor & Destructor Documentation

◆ MeasuredValue() [1/4]

template<class T >

active::setting::MeasuredValue< T >::MeasuredValue ( )

inline

Default constructor

◆ MeasuredValue() [2/4]

template<class T >

active::setting::MeasuredValue< T >::MeasuredValue ( double val )

inlineexplicit

Constructor

Parameters

val	The measurement value

◆ MeasuredValue() [3/4]

template<class T >

active::setting::MeasuredValue< T >::MeasuredValue	(	const T &	unit,
		double	val = 0.0 )

inlineexplicit

Constructor

Parameters

unit	The measurement unit
val	The measurement value

◆ MeasuredValue() [4/4]

template<class T >

active::setting::MeasuredValue< T >::MeasuredValue	(	UnitRetrieval	unitFinder,
		double	val = 0.0 )

inline

Constructor

Parameters

unitFinder	A function to retrieve the preferred unit
val	The measurement value

Member Function Documentation

◆ assign()

template<class T >

virtual Value & active::setting::MeasuredValue< T >::assign	(	const utility::String &	val,
		const T &	unit )

inlinevirtual

Assign a measurement value as a string

Parameters

val	A string value to assign
unit	The input unit

Returns: A reference to this

Reimplemented in active::setting::AngleValue.

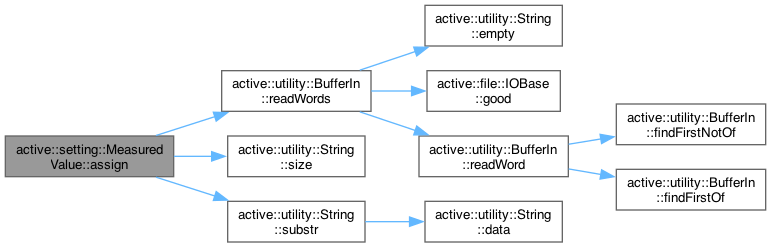

Here is the call graph for this function:

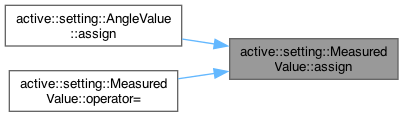

Here is the caller graph for this function:

◆ getUnit()

template<class T >

virtual T active::setting::MeasuredValue< T >::getUnit ( ) const

inlinevirtual

Get the measurement unit

Returns: The measurement unit

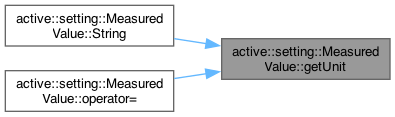

Here is the caller graph for this function:

◆ operator utility::String()

template<class T >

active::setting::MeasuredValue< T >::operator utility::String ( ) const

inlineoverride

Get a string value

Returns: A string value

Here is the call graph for this function:

◆ operator()()

template<class T >

virtual utility::String active::setting::MeasuredValue< T >::operator() ( const T & unit ) const

inlinevirtual

Get a string value

Returns: A string value

Reimplemented in active::setting::AngleValue.

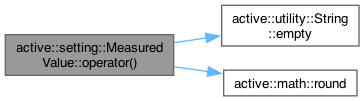

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( bool val )

inlineoverridevirtual

Assignment operator

Parameters

val	A boolean value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [2/12]

template<class T >

Value & active::setting::StringValue::operator= ( const active::utility::Guid & val )

inlineoverridevirtual

Assignment operator

Parameters

val	A guid value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [3/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( const active::utility::String & val )

inlineoverridevirtual

Assignment operator

Parameters

val	A string value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [4/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( const active::utility::Time & val )

inlineoverridevirtual

Assignment operator

Parameters

val	A time value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [5/12]

template<class T >

Value & active::setting::DoubleValue::operator= ( const char * val )

inlineoverridevirtual

Assignment operator

Parameters

val	A string value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [6/12]

template<class T >

Value & active::setting::MeasuredValue< T >::operator= ( const utility::String & val )

inlineoverridevirtual

Assignment operator

Parameters

val	A string value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

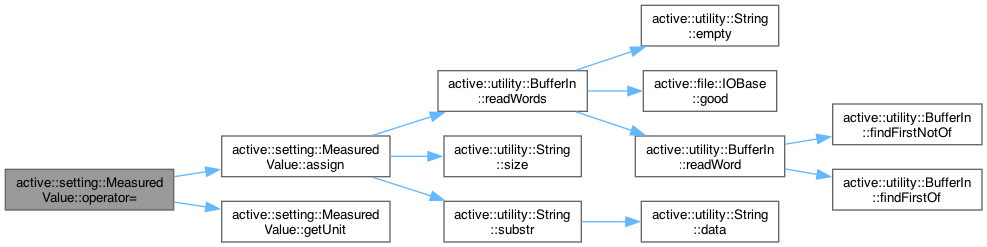

Here is the call graph for this function:

◆ operator=() [7/12]

template<class T >

Value & active::setting::ValueBase< utility::Guid >::operator= ( const Value & val )

inlinevirtual

Assignment operator

Parameters

val	A value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [8/12]

template<class T >

virtual Value & active::setting::ValueBase< T >::operator= ( const Value & val )

inlineoverridevirtual

Assignment operator

Parameters

val	A value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [9/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( double val )

inlineoverridevirtual

Assignment operator

Parameters

val	A double precision value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [10/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( int32_t val )

inlineoverridevirtual

Assignment operator

Parameters

val	A 32-bit integer value to assign

Returns: A reference to this

Assignment operator

Parameters

val	A boolean value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [11/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( int64_t val )

inlineoverridevirtual

Assignment operator

Parameters

val	A 64-bit integer value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ operator=() [12/12]

template<class T >

Value & active::setting::UInt32Value::operator= ( uint32_t val )

inlineoverridevirtual

Assignment operator

Parameters

val	An unsigned 32-bit integer value to assign

Returns: A reference to this

Reimplemented from active::setting::ValueBase< T >.

◆ setUnit() [1/2]

template<class T >

virtual void active::setting::MeasuredValue< T >::setUnit ( const T & unit )

inlinevirtual

Set the measurement unit

Parameters

unit	The measurement unit (NB: A specified unitFinder function will take precedence over this setting)

◆ setUnit() [2/2]

template<class T >

virtual void active::setting::MeasuredValue< T >::setUnit ( UnitRetrieval unitFinder )

inlinevirtual

Set a unit retrieval function

Parameters

unitFinder The measurement unit retrieval function (nullptr = use member unit)

The documentation for this class was generated from the following file:

/Users/rwessel/Documents/Development/ActiveLib/Active/Setting/Values/Measurement/MeasuredValue.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MeasuredValue() [1/4]

◆ MeasuredValue() [2/4]

◆ MeasuredValue() [3/4]

◆ MeasuredValue() [4/4]

Member Function Documentation

◆ assign()

◆ getUnit()

◆ operator utility::String()

◆ operator()()

◆ operator=() [1/12]

◆ operator=() [2/12]

◆ operator=() [3/12]

◆ operator=() [4/12]

◆ operator=() [5/12]

◆ operator=() [6/12]

◆ operator=() [7/12]

◆ operator=() [8/12]

◆ operator=() [9/12]

◆ operator=() [10/12]

◆ operator=() [11/12]

◆ operator=() [12/12]

◆ setUnit() [1/2]

◆ setUnit() [2/2]
