active::serialise::xml::XMLPoint Class Reference

#include <XMLPoint.h>

Inheritance diagram for active::serialise::xml::XMLPoint:

Collaboration diagram for active::serialise::xml::XMLPoint:

Public Types
using	base = std::reference_wrapper<geometry::Point>
Public Types inherited from active::serialise::Package
using	Unique = std::unique_ptr<Package>
	Unique pointer.
using	Shared = std::shared_ptr<Package>
	Shared pointer.
Public Types inherited from active::serialise::Cargo
using	Unique = std::unique_ptr<Cargo>
	Unique pointer.
using	Shared = std::shared_ptr<Cargo>
	Shared pointer.
using	size_type = std::string::size_type
	Class size type.
using	sizeOption = std::optional<size_type>
	Optional size type (used to indicate an unspecified or non-existant position)

Public Member Functions
	XMLPoint (geometry::Point &point)
	XMLPoint (geometry::Point &point, const utility::String &customTag)
virtual bool	fillInventory (Inventory &inventory) const override
virtual Cargo::Unique	getCargo (const Inventory::Item &item) const override
virtual void	setDefault () override
Public Member Functions inherited from active::serialise::Package
bool	isRoot () const
virtual bool	isAttributeFirst () const
virtual bool	insert (Cargo::Unique &&cargo, const Inventory::Item &item)
virtual bool	read (const utility::String &source)
void	setRoot (bool state)
virtual bool	finaliseAttributes ()
Public Member Functions inherited from active::serialise::Cargo
	Cargo ()
	Cargo (const Cargo &source)
virtual	~Cargo ()=default
virtual void	clear ()
virtual bool	validate ()

Static Public Attributes
static utility::String	tag = "point"
	The element tag.

Detailed Description

A serialisation wrapper for a Point

While explicitly supporting XML, this class should work equally well for JSON and probably CSV serialisation

Constructor & Destructor Documentation

XMLPoint() [1/2]

XMLPoint::XMLPoint

(

geometry::Point &

point

)

Constructor

Parameters

point

The point to wrap for (de)serialisation

XMLPoint() [2/2]

XMLPoint::XMLPoint	(	geometry::Point &	point,
		const utility::String &	customTag )

Constructor

Parameters

point	The point to wrap for (de)serialisation
customTag	A custom tag (overrides the default tag)

Member Function Documentation

fillInventory()

bool XMLPoint::fillInventory ( Inventory & inventory ) const

overridevirtual

Fill an inventory with the package items

Parameters

inventory

The inventory to receive the package items

Returns

True if the package has added items to the inventory

Implements active::serialise::Cargo.

Reimplemented in active::serialise::xml::XMLPolyPoint.

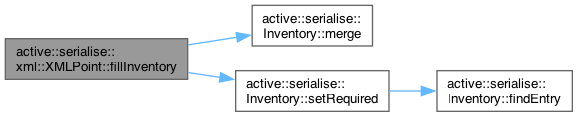

Here is the call graph for this function:

Here is the caller graph for this function:

getCargo()

Cargo::Unique XMLPoint::getCargo ( const Inventory::Item & item ) const

overridevirtual

Get the specified cargo

Parameters

item	The inventory item to retrieve

Returns

The requested cargo (nullptr on failure)

Implements active::serialise::Cargo.

Reimplemented in active::serialise::xml::XMLPolyPoint.

Here is the caller graph for this function:

setDefault()

void XMLPoint::setDefault ( )

overridevirtual

Set to the default package content

Reimplemented from active::serialise::Package.

Reimplemented in active::serialise::xml::XMLPolyPoint.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/XML/Package/Wrapper/Geometry/XMLPoint.h
• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/XML/Package/Wrapper/Geometry/XMLPoint.cpp
