active::serialise::HexTransport Class Reference

#include <HexTransport.h>

Public Member Functions
bool	send (const utility::BufferIn &source, const utility::BufferOut &destination, utility::Memory::sizeOption howMany=std::nullopt) const
bool	receive (const utility::BufferOut &destination, const utility::BufferIn &source, utility::Memory::sizeOption howMany=std::nullopt) const
std::optional< uint32_t >	receive (const utility::String &source) const

Detailed Description

A serialisation tool class to send/receive data encoded as hex characters

Member Function Documentation

receive() [1/2]

bool HexTransport::receive	(	const utility::BufferOut &	destination,
		const utility::BufferIn &	source,
		utility::Memory::sizeOption	howMany = std::nullopt ) const

Receive specified data from a stream of hex characters

Parameters

destination	The buffer to receive the data
source	The hex stream source
howMany	The number of bytes to import (nullopt = to eof)

Returns

True if the import was successful

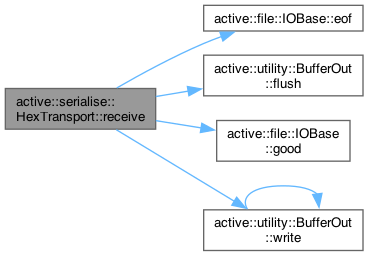

Here is the call graph for this function:

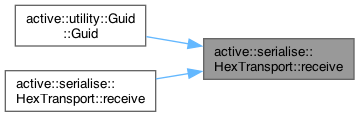

Here is the caller graph for this function:

receive() [2/2]

std::optional< uint32_t > HexTransport::receive

(

const utility::String &

source

)

const

Receive an integer from the specified hex chars

Parameters

source

The hex stream source

Returns

The received integer (nullopt on failure)

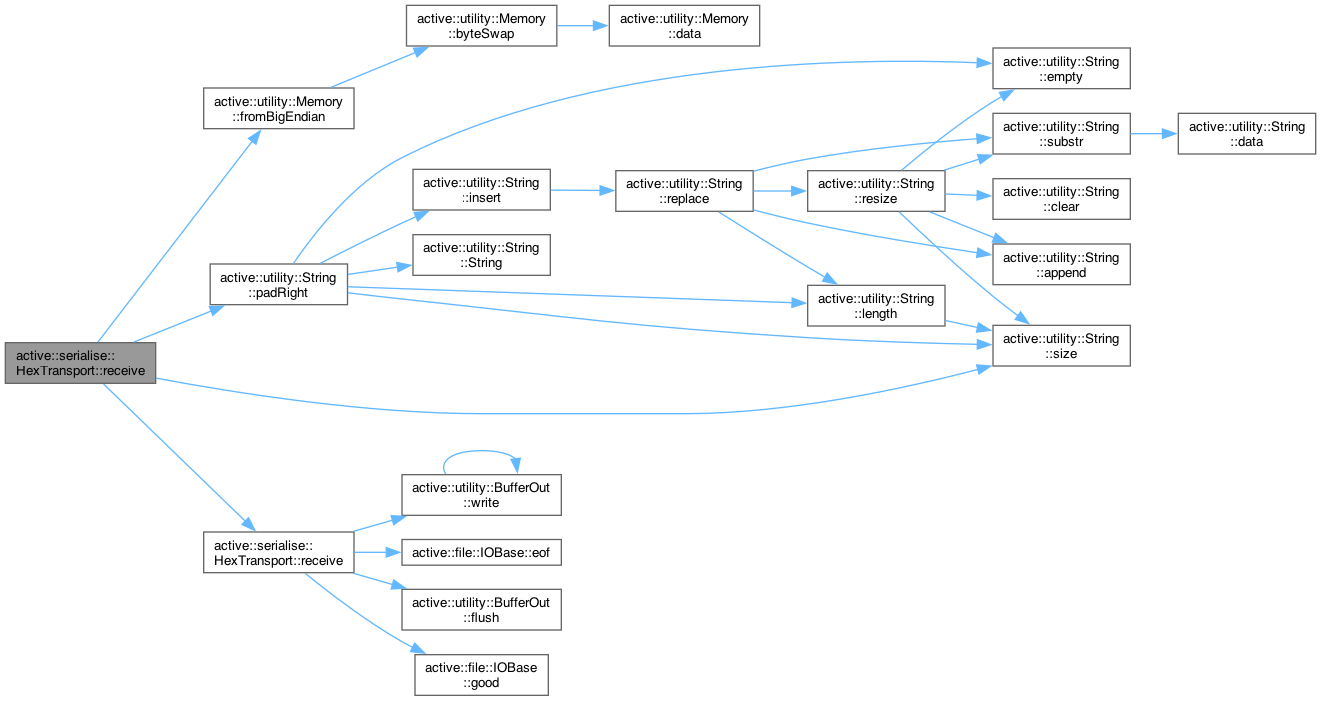

Here is the call graph for this function:

send()

bool HexTransport::send	(	const utility::BufferIn &	source,
		const utility::BufferOut &	destination,
		utility::Memory::sizeOption	howMany = std::nullopt ) const

Export specified data as hex chars

Parameters

source	The data to send (NB: binary data is assumed to be big-endian - prepare the source accordingly)
destination	The destination buffer for the exported hex chars
howMany	The number of bytes to export (nullopt = to eof)

Returns

True if no errors occurred

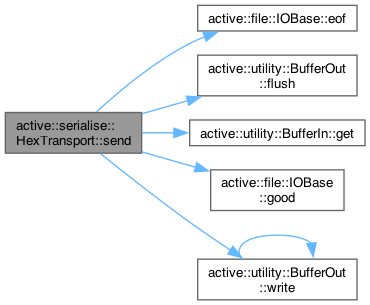

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/Generic/HexTransport.h
• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/Generic/HexTransport.cpp
