active::serialise::xml::XMLValueSetting Class Reference

#include <XMLValueSetting.h>

Inheritance diagram for active::serialise::xml::XMLValueSetting:

Collaboration diagram for active::serialise::xml::XMLValueSetting:

Public Types
enum	FieldIndex {   name , valGuid , columns , type ,   className , value }
	Serialisaton fields.
using	base = std::reference_wrapper<setting::ValueSetting>
Public Types inherited from active::serialise::Package
using	Unique = std::unique_ptr<Package>
	Unique pointer.
using	Shared = std::shared_ptr<Package>
	Shared pointer.
Public Types inherited from active::serialise::Cargo
using	Unique = std::unique_ptr<Cargo>
	Unique pointer.
using	Shared = std::shared_ptr<Cargo>
	Shared pointer.
using	size_type = std::string::size_type
	Class size type.
using	sizeOption = std::optional<size_type>
	Optional size type (used to indicate an unspecified or non-existant position)

Public Member Functions
	XMLValueSetting (setting::ValueSetting &setting, bool isTyped=false, std::optional< utility::String > className=std::nullopt)
	XMLValueSetting (const setting::ValueSetting &setting, bool isTyped=false, std::optional< utility::String > className=std::nullopt)
	XMLValueSetting (setting::ValueSetting &setting, const utility::String &customTag, bool isTyped=false, std::optional< utility::String > className=std::nullopt)
	XMLValueSetting (const setting::ValueSetting &setting, const utility::String &customTag, bool isTyped=false, std::optional< utility::String > className=std::nullopt)
virtual bool	fillInventory (Inventory &inventory) const override
virtual Cargo::Unique	getCargo (const Inventory::Item &item) const override
virtual void	setDefault () override
virtual bool	validate () override
virtual bool	insert (Cargo::Unique &&cargo, const Inventory::Item &item) override
Public Member Functions inherited from active::serialise::Package
bool	isRoot () const
virtual bool	isAttributeFirst () const
virtual bool	read (const utility::String &source)
void	setRoot (bool state)
virtual bool	finaliseAttributes ()
Public Member Functions inherited from active::serialise::Cargo
	Cargo ()
	Cargo (const Cargo &source)
virtual	~Cargo ()=default
virtual void	clear ()

Static Public Attributes
static utility::String	tag = "setting"
	The default element tag.

Detailed Description

A serialisation wrapper for a setting containing a value, e.g. string, bool etc (potentially multiple values)

Constructor & Destructor Documentation

XMLValueSetting() [1/4]

XMLValueSetting::XMLValueSetting	(	setting::ValueSetting &	setting,
		bool	isTyped = false,
		std::optional< utility::String >	className = std::nullopt )

Constructor

Parameters

setting	The setting to wrap for (de)serialisation
isTyped	True if the value is serialised as a specific type
className	Optional class name for the value container

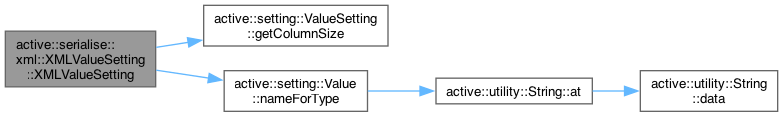

Here is the call graph for this function:

XMLValueSetting() [2/4]

active::serialise::xml::XMLValueSetting::XMLValueSetting ( const setting::ValueSetting & setting, bool isTyped = false, std::optional< utility::String > className = std::nullopt )

inline

Constructor

Parameters

setting	The setting to wrap for (de)serialisation
isTyped	True if the value is serialised as a specific type
className	Optional class name for the value container

XMLValueSetting() [3/4]

XMLValueSetting::XMLValueSetting	(	setting::ValueSetting &	setting,
		const utility::String &	customTag,
		bool	isTyped = false,
		std::optional< utility::String >	className = std::nullopt )

Constructor

Parameters

setting	The setting to wrap for (de)serialisation
customTag	A custom tag (overrides the default tag)
isTyped	True if the value is serialised as a specific type
className	Optional class name for the value container

Here is the call graph for this function:

XMLValueSetting() [4/4]

active::serialise::xml::XMLValueSetting::XMLValueSetting ( const setting::ValueSetting & setting, const utility::String & customTag, bool isTyped = false, std::optional< utility::String > className = std::nullopt )

inline

Constructor

Parameters

setting	The setting to wrap for (de)serialisation
customTag	A custom tag (overrides the default tag)
isTyped	True if the value is serialised as a specific type
className	Optional class name for the value container

Member Function Documentation

fillInventory()

bool XMLValueSetting::fillInventory ( Inventory & inventory ) const

overridevirtual

Fill an inventory with the package items

Parameters

inventory

The inventory to receive the package items

Returns

True if the package has added items to the inventory

Implements active::serialise::Cargo.

Here is the call graph for this function:

getCargo()

Cargo::Unique XMLValueSetting::getCargo ( const Inventory::Item & item ) const

overridevirtual

Get the specified cargo

Parameters

item	The inventory item to retrieve

Returns

The requested cargo (nullptr on failure)

Implements active::serialise::Cargo.

insert()

bool XMLValueSetting::insert ( Cargo::Unique && cargo, const Inventory::Item & item )

overridevirtual

Insert specified cargo into the package - used for cargo with many instances sharing the same ID (e.g. from an array/map)

Parameters

cargo	The cargo to insert
item	The inventory item linked with the cargo

Returns

True if the cargo was accepted (false will trigger an import failure - simply discard if this is not an error)

Reimplemented from active::serialise::Package.

setDefault()

void XMLValueSetting::setDefault ( )

overridevirtual

Set to the default package content

Reimplemented from active::serialise::Package.

Here is the call graph for this function:

validate()

bool XMLValueSetting::validate ( )

overridevirtual

Validate the cargo data

Returns

True if the data has been validated

Reimplemented from active::serialise::Cargo.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/XML/Package/Wrapper/XMLValueSetting.h
• /Users/rwessel/Documents/Development/ActiveLib/Active/Serialise/XML/Package/Wrapper/XMLValueSetting.cpp
